Sony MAP-S1 - Tuner Section Exploded View; Tuner and DAB Board Assembly Exploded View

95
MAP-S1

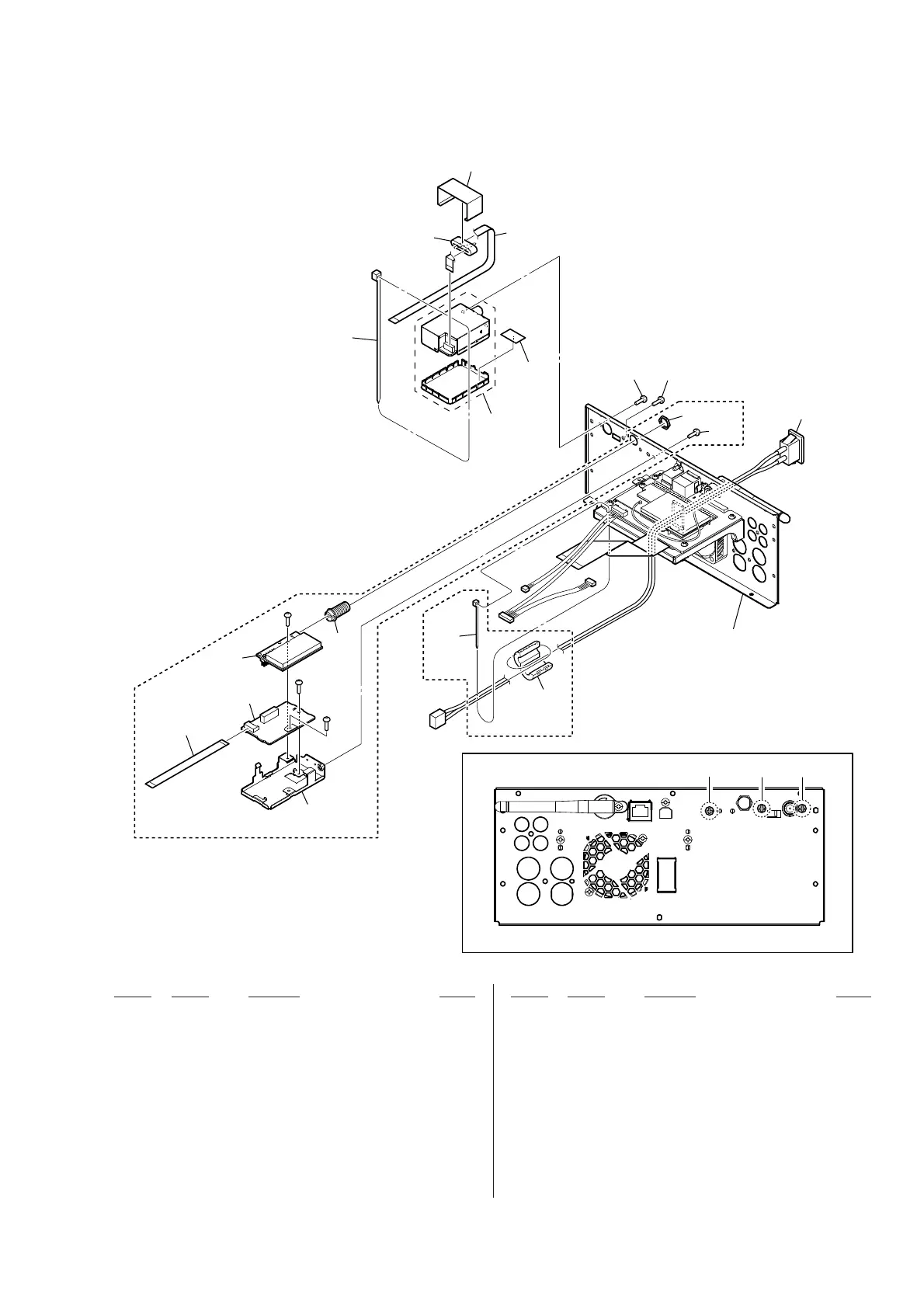

6-8. TUNER SECTION
351 A-1990-335-A TUNER BOARD, COMPLETE
(AEP, UK, AUS, HK, MY)
351 A-2035-808-A TUNER BOARD, COMPLETE (CND)
352 4-471-203-01 SHEET (TUNER)
353 A-1990-334-A DAB BOARD, COMPLETE
(AEP, UK, AUS, HK, MY)
354 3-704-515-22 SCREW (BV/RING)
355 2-650-108-01 NUT (AEP, UK, AUS, HK, MY)
356 3-655-653-11 BAND (TAITON), BINDING
357 3-655-653-01 BAND (TAITON), BINDING (CND)
0 AC1 1-843-976-11 AC INLET (2P) (
-
AC IN) (CND)
0 AC1 1-843-976-21 AC INLET (2P) (
-
AC IN) (AEP, UK, AUS, HK, MY)
CC1 1-820-441-11 CONNECTOR, COAXIAL (F TYPE)
(AEP, UK, AUS, HK, MY)
DAB1 1-489-807-11 MODULE (DAB TUNER) (AEP, UK, AUS, HK, MY)
FC3 1-500-635-11 CORE, FERRITE
FC4 1-481-529-21 FILTER, CLAMP (FERRITE CORE) (CND)
FFC11 9-885-194-21 FY14 FFC (1.0 mm_9P_TUNER)
FFC12 9-885-194-23 FY14 FFC (1.0 mm_9P_DAB)
(AEP, UK, AUS, HK, MY)
#2 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
(AEP, UK, AUS, HK, MY)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
355
356
357
354
351
353
352
354
354
(AEP, UK, AUS, HK, MY)
(CND)
not supplied
back panel section
#2
#2
#2
not supplied
FFC11
FC3
AC1
FFC12
DAB1
CC1
FC4
354
354 354
– Rear view –
