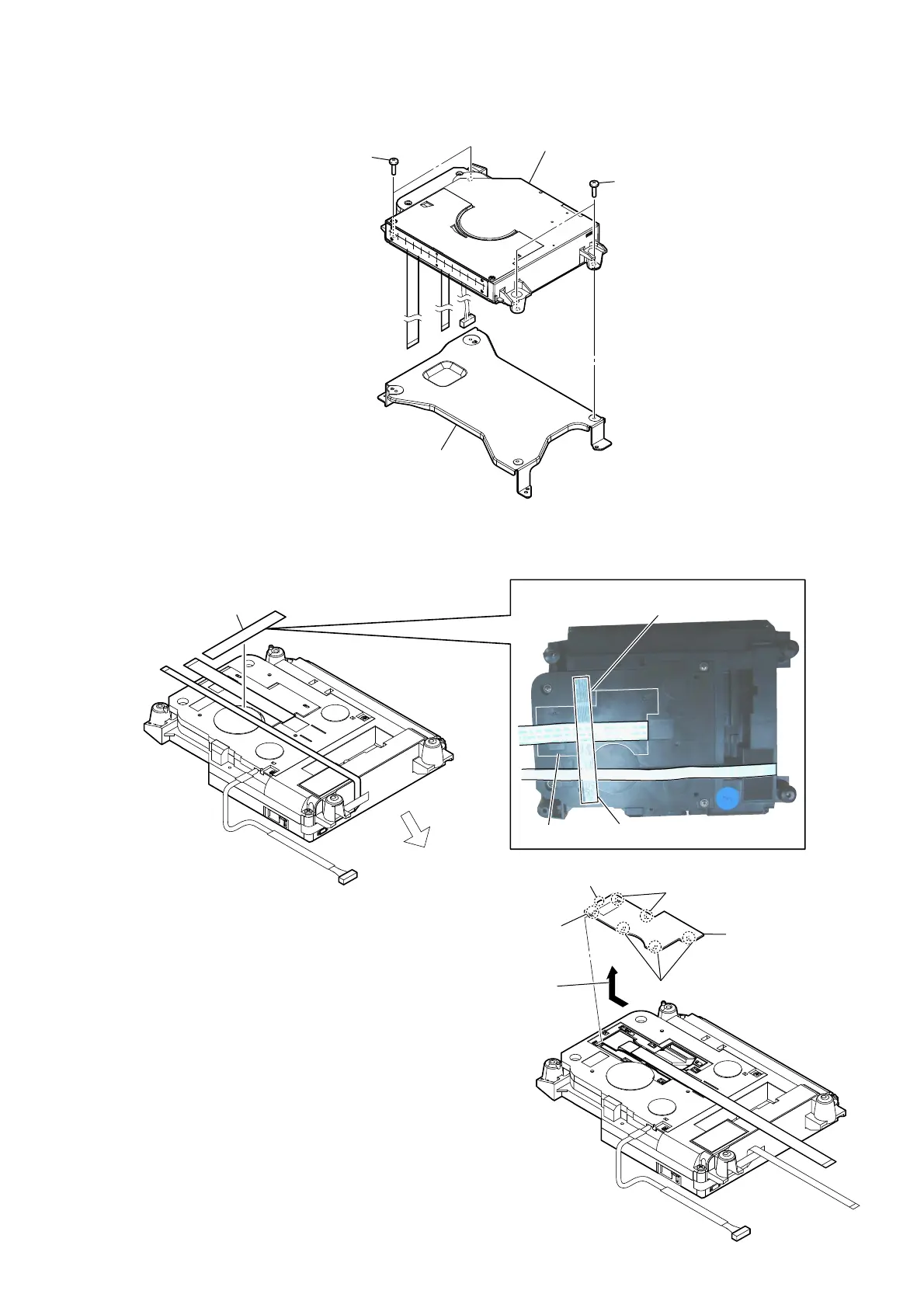

2-11. CD MECHANISM DECK (CDM91A-DVBU203)

2-12. FFC GUIDE

3 CD mechanism deck

(CDM91A-DVBU203)

1 two screws

(BV/ring)

1 two screw

(BV/ring)

2 bracket CDM

– CD mechanism deck block bottom view –

2 Remove the

FFC guide

in the direction of the arrow.

three claws

two claws

claw

FFC guide

cut end

 )le[ible Ilat cable settinJ

Note:

When installing the FFC guide, make sure

that this portion is not floating.

filament tape

(sub material)

filament tape (sub material)
