MAP-S1

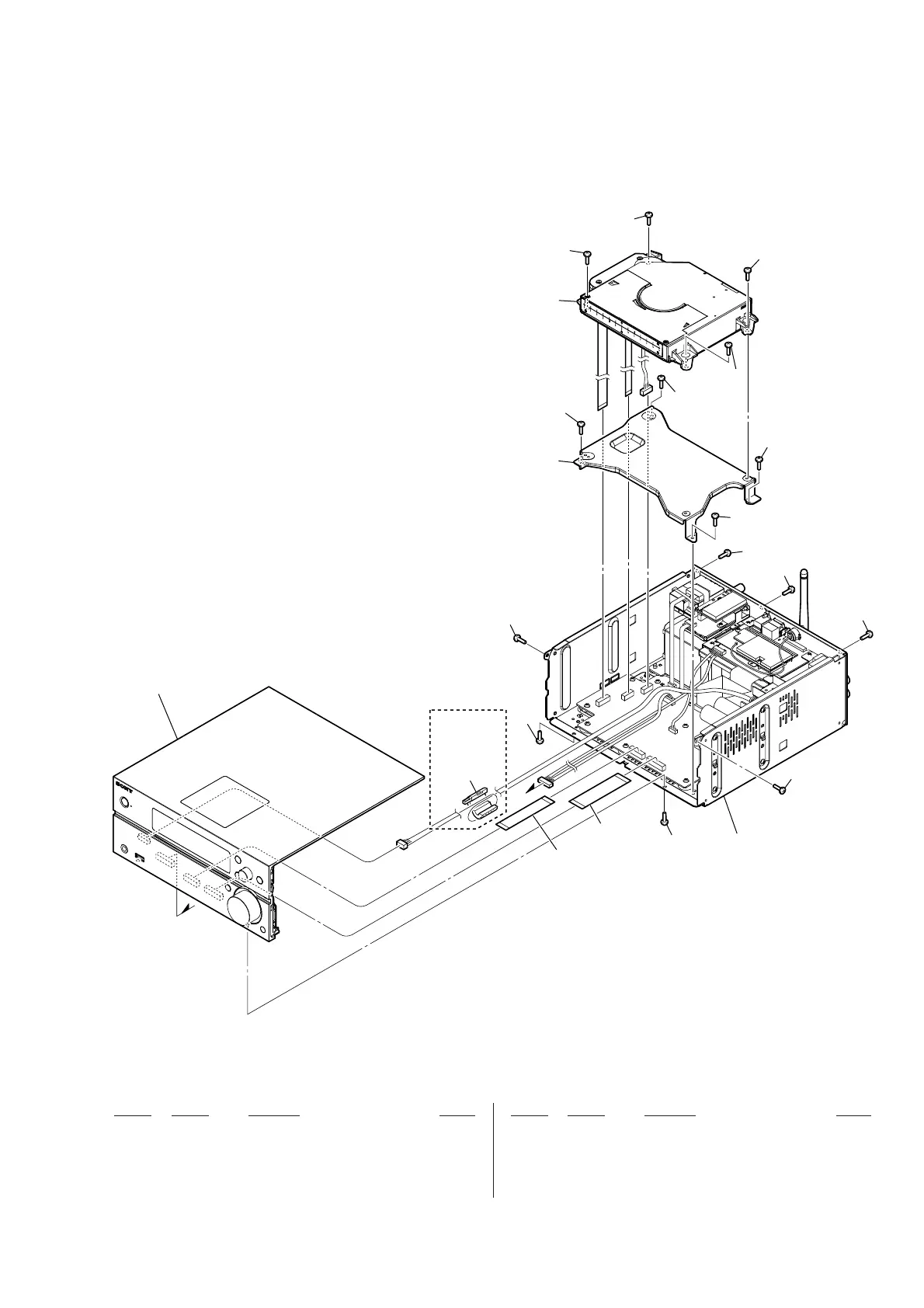

6-2. BRACKET CDM SECTION
51 3-704-515-22 SCREW (BV/RING)
52 3-077-331-21 +BV3 (3-CR)
53 4-485-562-01 SCREW ORNAMENT
* FC1 1-500-082-11 CLAMP, SLEEVE FERRITE
(AEP, UK, AUS, HK, MY)
FFC1 9-885-194-29 FY14 FFC (1.0 mm_23P_JOINT)
FFC2 9-885-194-19 FY14 FFC (0.5 mm_26P_JOINT)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
A
A
FC1
FFC1
FFC2
not supplied
CD mechanism deck section
51
51
51
51
51
51
52
52
52
52
(AEP, UK,
AUS, HK,
MY)
51
53
53
53
53
FRONT-L board section
AMP board section

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
