Sony MAP-S1 Service Manual

MAP-S1
22

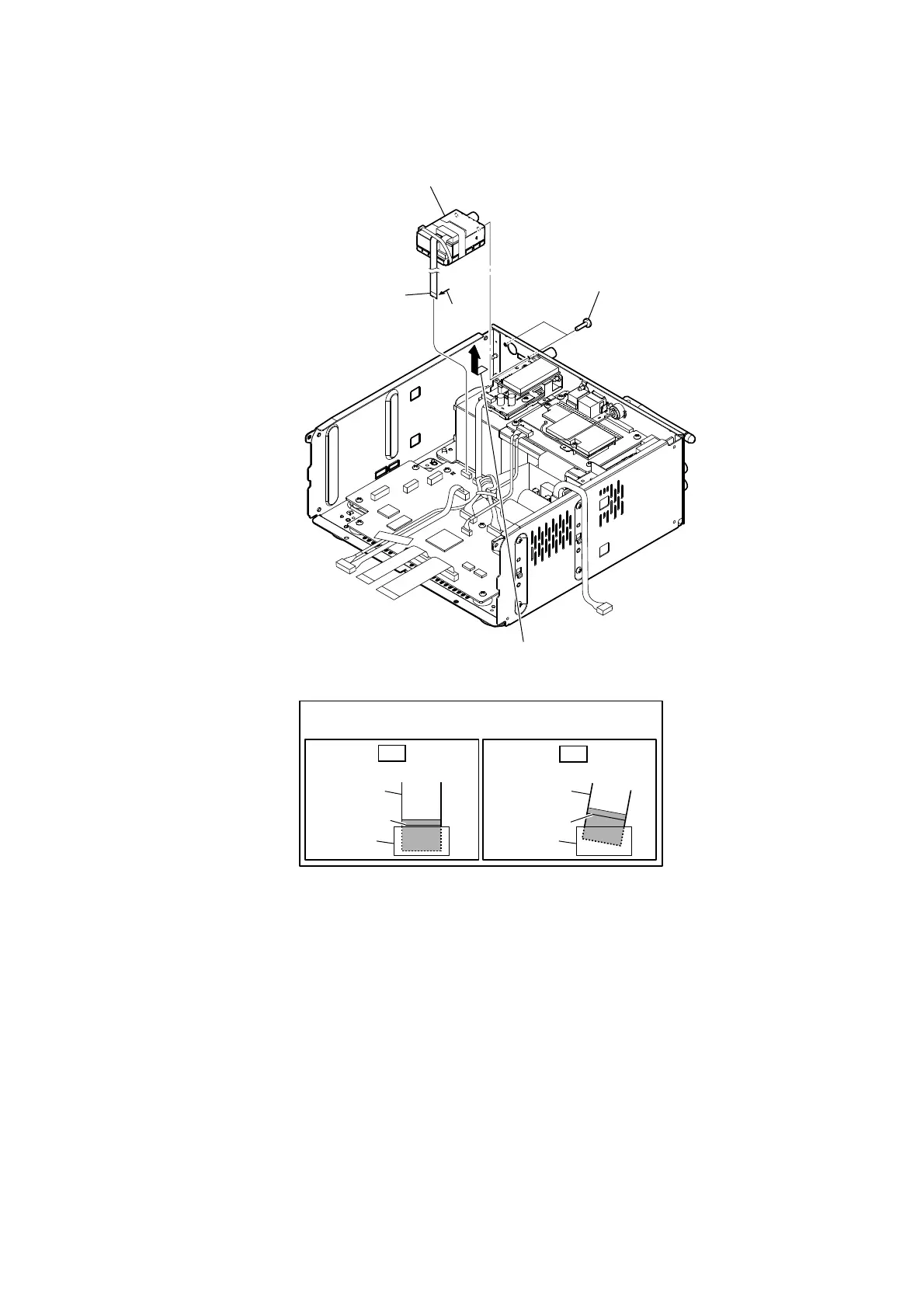

2-15. TUNER BOARD BLOCK
2 two screws
(BV/ring)
3 Remove the TUNER board block
in the direction of the arrow.
terminal
side
4 TUNER board block
1 flexible flat cable (9P)
(CN002)
Note 1: When installing the flexible flat
cable (9P), check the terminal side
not to mistake a direction.
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note 2:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
