Sony MAP-S1 Service Manual

MAP-S1
30

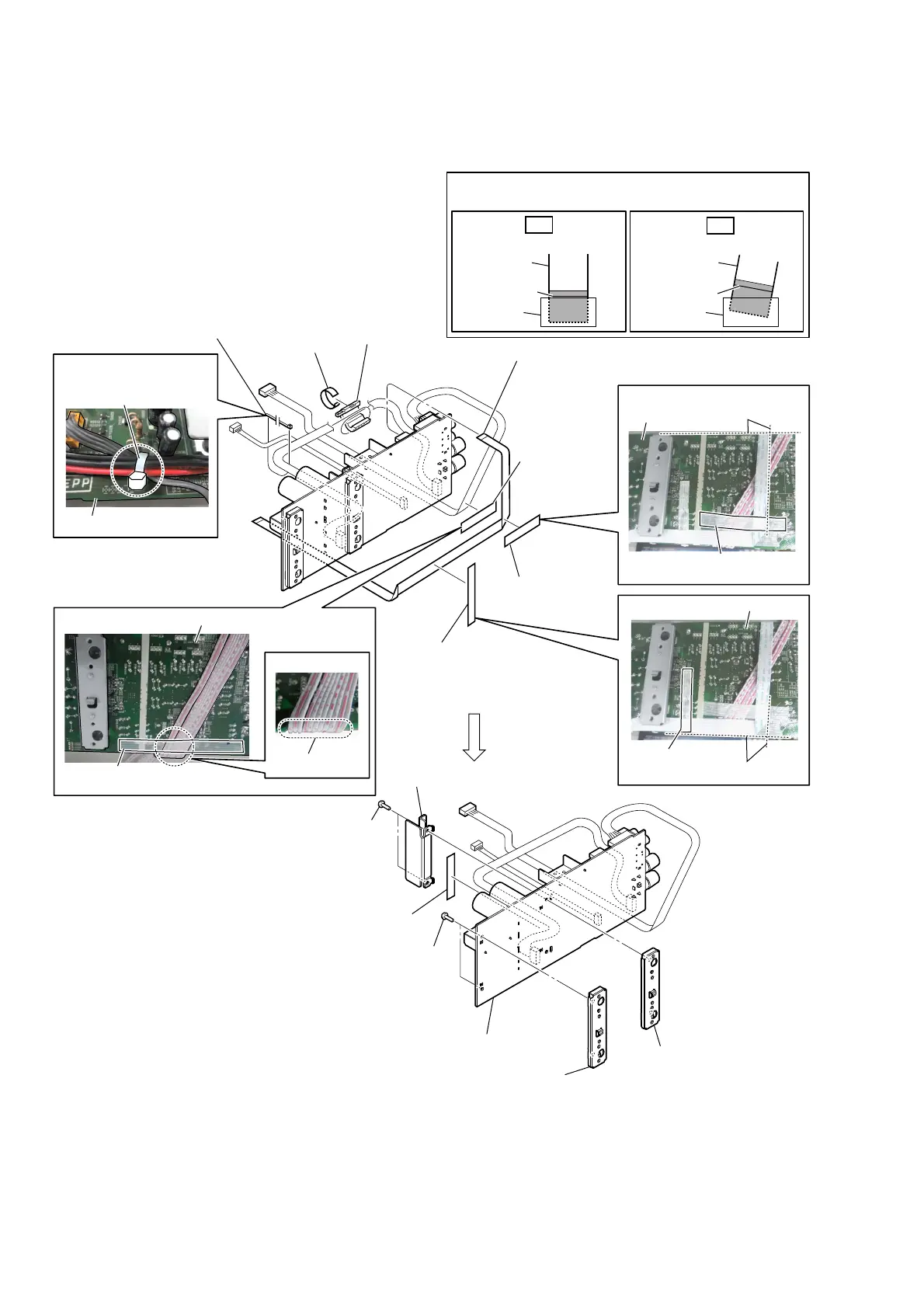

2-25. AMP BOARD
7 two screws
(BVTT3 u 6)
qs sheet
(radiation)
9 two screws
(BVTP3 u 8)
AMP board
AMP board
AMP board
WireVeWWiQJ
WireVeWWiQJ
WireVeWWiQJ
1 filament tape
(sub material)
filament tape
(sub material)
3 filament tape
(sub material)
1 filament tape
(sub material)
qa bracket AMP
8 bracket AMP
filament tape
(sub material)
guide line
guide line
0 heat sink AMP
2 flexible flat cable (9P)
(CN2001)
qd AMP board
5 filament tape
(sub material)
6 clamp filter
(ferrite core)
(FC2)
binding band
(taiton)
4 Cut the binding band (taiton).
AMP board
WireVeWWiQJ
filament tape
(sub material)
ditch
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
