MAP-S1

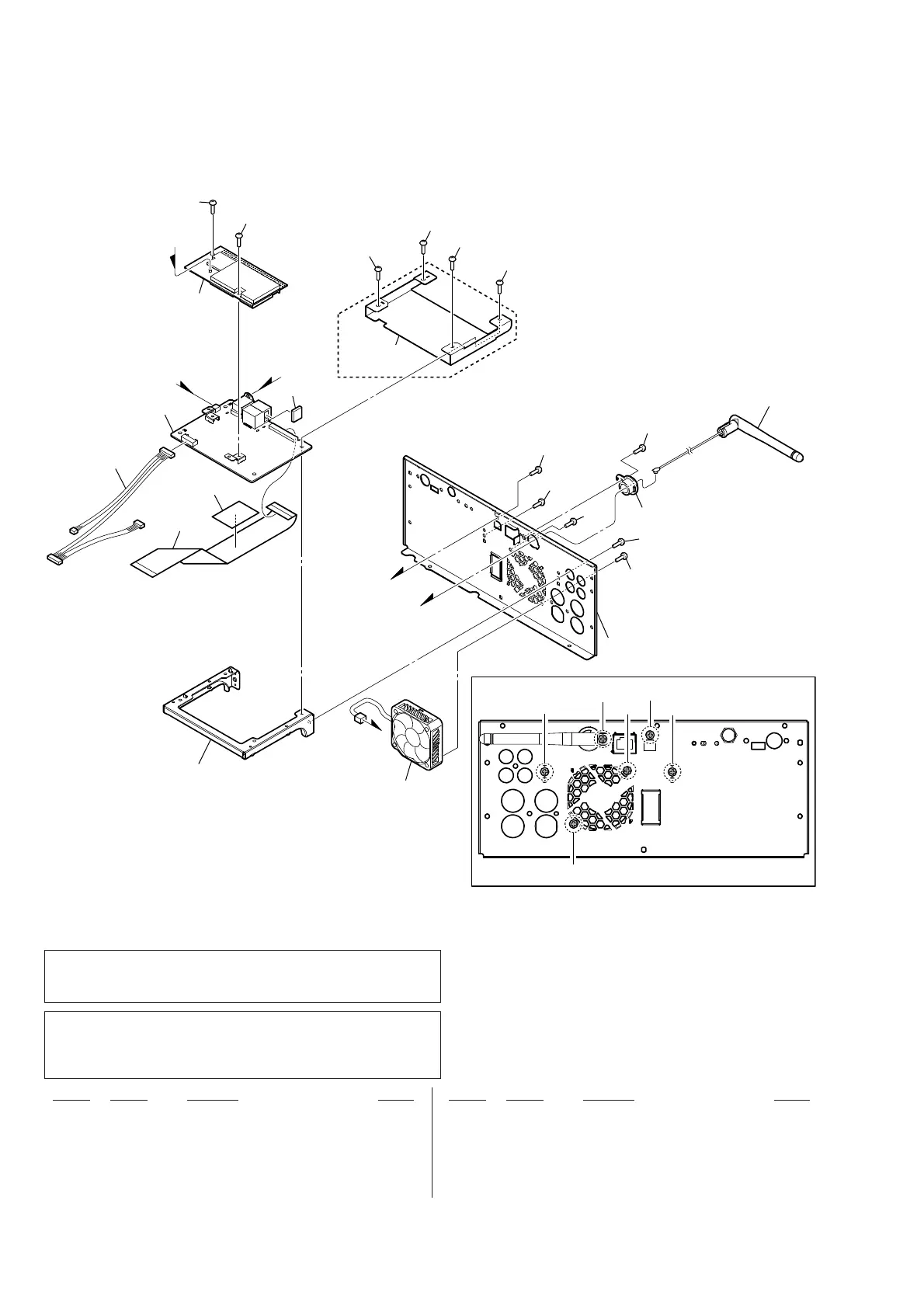

6-9. BACK PANEL SECTION
401 A-2054-090-A NETWORK BOARD, COMPLETE
(AEP, UK, AUS, HK, MY)
401 A-2057-120-A NETWORK BOARD, COMPLETE (CND)
402 3-704-515-22 SCREW (BV/RING)
403 3-077-331-21 +BV3 (3-CR)
404 4-538-712-01 SCREW (BV3X10 RING)
ANT1 1-754-859-11 ANTENNA (2.4 GHz) (WiFi antenna) (See Note 1)
FFC13 9-885-194-27 FY14 FFC (1.0 mm_31P_NET)
0 M1 1-855-247-11 FAN, DC
WIFI1 X-2589-576-1 PWB BCO SVX (WiFi module) (for SERVICE)
(See Note 2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
401
402
402
403
403
402
402
402
402
404
402
402
402
FFC13
WIFI1
not supplied
ANT1
M1
not supplied
not supplied
not supplied
not supplied
not supplied
(CND)
P
P
Q
Q
R
R
402
402
402
402402
402
– Rear view –
Note 2: When the WiFi module (Ref. No. WIFI1) is replaced, refer to
“NOTE OF REPLACING THE WiFi MODULE”, “PROCESS-
ING OF REPLACING THE WiFi MODULE” and “CHECKING
METHOD OF NETWORK CONNECTION” on page 6.
Note 1: When the WiFi antenna (Ref. No. ANT1) is replaced, refer to
“CHECKING METHOD OF NETWORK CONNECTION” on
page 6.
