Sony MAP-S1 Service Manual

MAP-S1
24

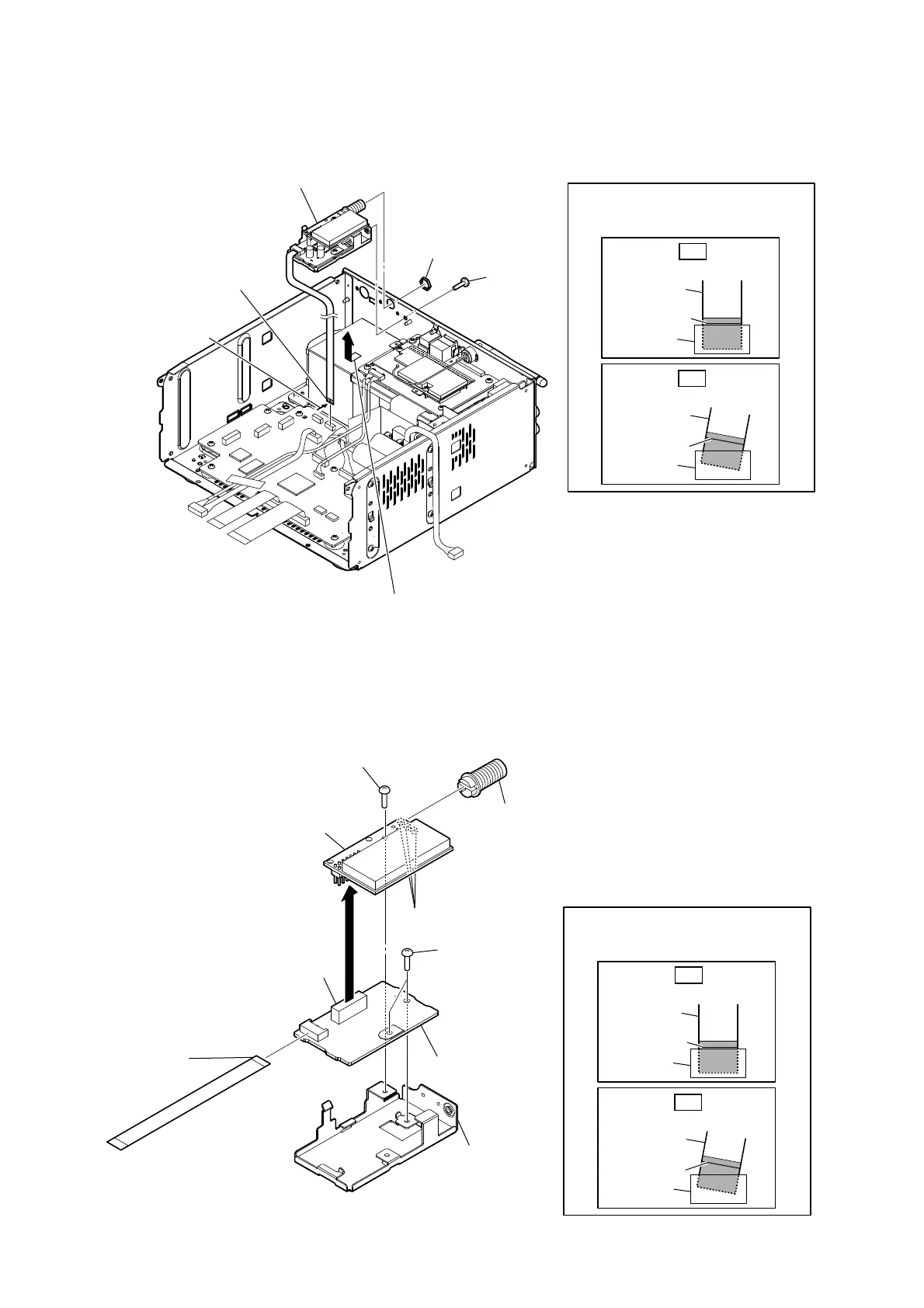

2-17. DAB BOARD BLOCK (Except Canadian model)
2-18. MODULE (DAB TUNER) (DAB1), DAB BOARD (Except Canadian model)
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
3 screw
(BV/ring)
2 nut
5 DAB board block
4 Remove the DAB board block
in the direction of the arrow.
terminal side
1 flexible flat cable (9P)
(CN012)
Note 1: When installing the flexible flat
cable (9P), check the terminal side
not to mistake a direction.
Note 2:
When installing the flexible flat cable,
ensure that the colored line is parallel
to the connector after insertion.
1 screw
(BTP2.6 u 6)
7 two screws
(BTP2.6 u 6)
4 coaxial connector
(F type)
(CC1)
2 connector
(CN3201)
8 holder DAB
9 DAB board
6 flexible flat cable (9P)
(CN3202)
5 module
(DAB TUNER)
(DAB1)
3 Remove three solders.
Note:
When installing the flexible flat cable,
ensure that the colored line is parallel
to the connector after insertion.
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
