Sony MAP-S1 Service Manual

MAP-S1
26

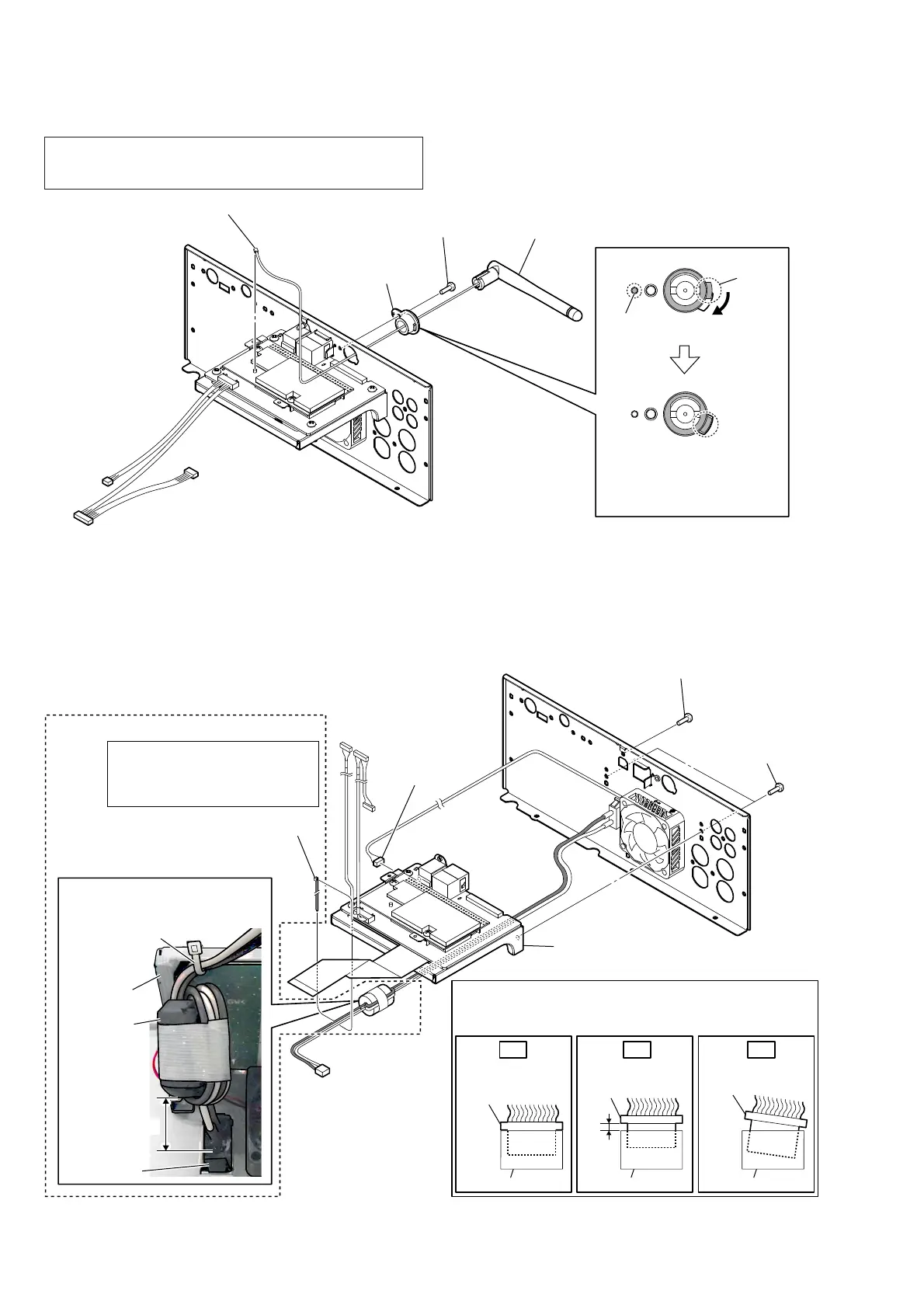

2-20. ANTENNA 2.4 GHz (ANT1), HOLDER (ANTENNA)
2-21. NETWORK BOARD BLOCK
3 screw
(BV/ring)
2 antenna 2.4 GHz
(ANT1)
6 holder
(antenna)
1 antenna connector
(CON2)
5 Rotate the claw of holder
(antenna) in the direction of
the arrow, align the hole of
panel back.
claw
4 boss
4 two screws
(BV/ring)
2 connector
(CN3005)
3 screw
(BV3 u 10 ring)
1 Cut the binding band (taiton).
(Canadian)
AC inlet
(2P) (AC1)
20 ± 5 mm
+RZWRinVWaOOWKHFOaPS
IiOWHU(IHUUiWHFRUH)()C)
clamp filter
(ferrite core)
(FC4)
binding band
(taiton)
bracket
PWB NET
5 NETWORK board block
Insert only part way.
Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK NG NG
Note 2:
Insert the connector straight into the interior.
There is a possibility that using this device without
the connector correctly installed will damage it.
Note 1:
During reassembly, use new
binding band (taiton) to fasten
the wires back in place as
they were before disassembly.
Note: When the WiFi antenna (Ref. No. ANT1) is replaced, refer to
“CHECKING METHOD OF NETWORK CONNECTION” on
page 6.

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
