Sony MAP-S1 Service Manual

MAP-S1
15

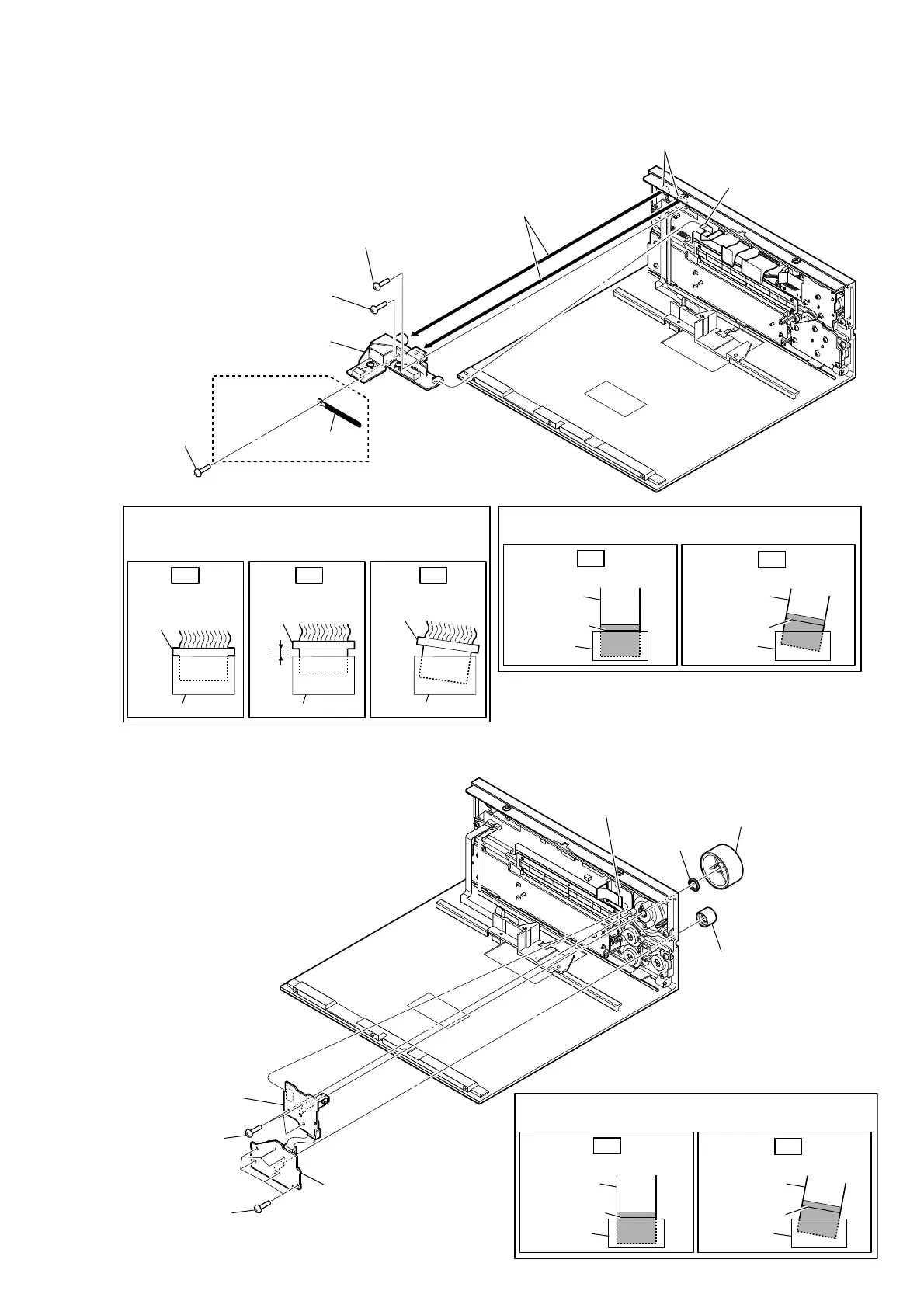

2-5. BRACKET JACK BLOCK
2-6. FRONT-R BOARD, FRONT-KEY BOARD
– Panel (front) rear bottom view –
5 bracket jack block
2 screw
(BVTP2.6)
2 screw
(BVTP2.6)
2 screw
(BVTP2.6)
1 flexible flat cable (5P)
(CN4004)
3 coating
clip
4 Draw out two jacks from two holes.
hole
(Except Canadian)
Note 1:
Insert the connector straight into the interior.
There is a possibility that using this device without
the connector correctly installed will damage it.
Insert only part way.
Insert straight into
the interior.
connector
Insert at a slant.
connector
connector
connector
connector connector
OK NG NG
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note 2:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
5 three screws
(BVTP2.6)
5 six screws
(BVTP2.6)
4 flexible flat cable (9P)
(CN3520)
6 FRONT-R board
7 FRONT-KEY board
–
Panel (front) rear bottom view –
3 nut
2 knob (volume) assy
1 knob (enter) assy
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
