Sony MAP-S1 Service Manual

MAP-S1
16

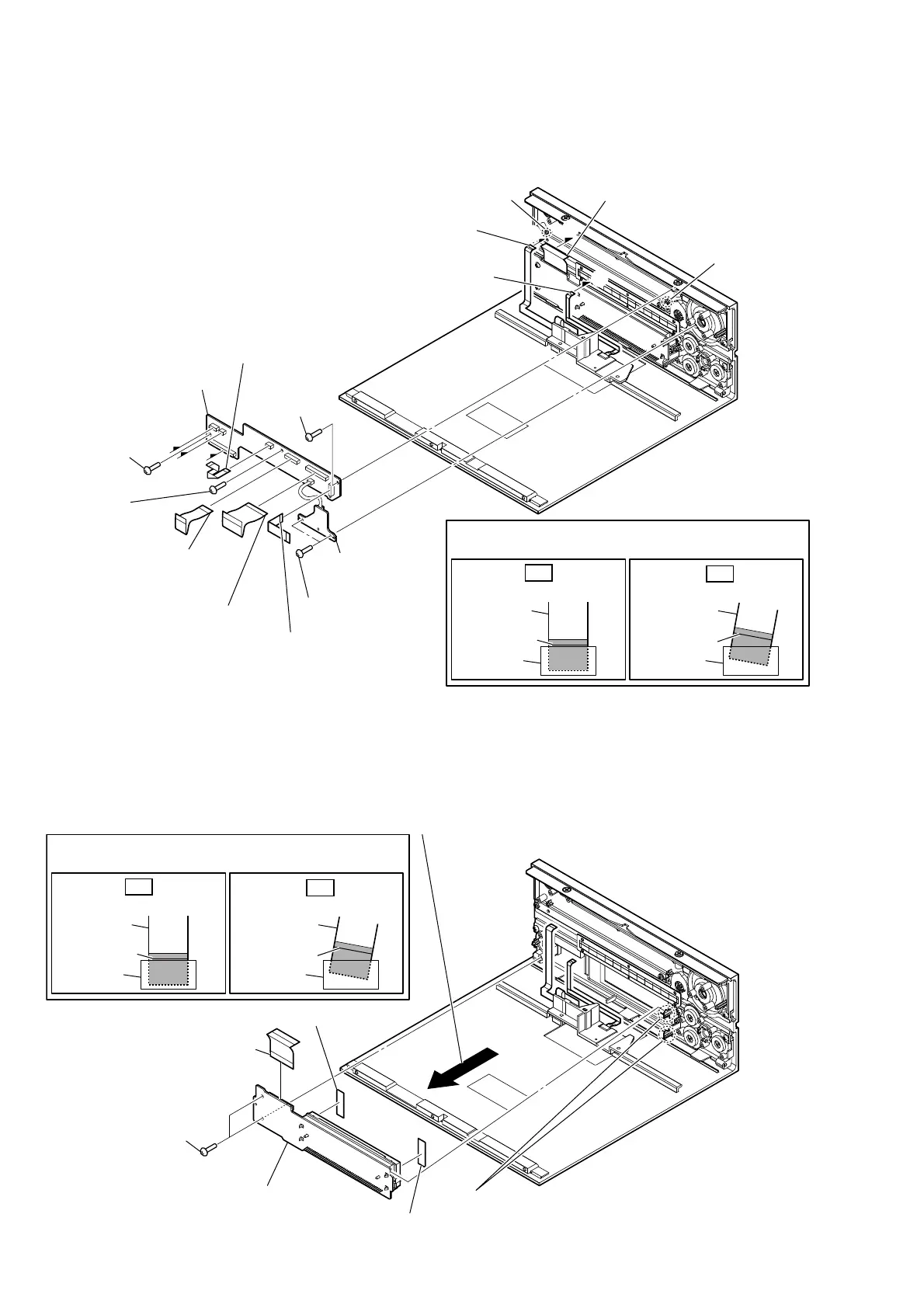

2-7. FRONT-EJECT BOARD, FRONT-L BOARD
2-8. FRONT BOARD
0 screw
(BVTP2.6)
0 screw
(BVTP2.6)
8 two screws
0 screw
(BVTP2.6)
5 flexible flat cable (23P)
(CN4806)
4 flexible flat cable (9P)
(CN4807)
3 flexible flat cable (19P)
(CN4805)
qa boss
qa boss
6 flexible flat cable (26P)
(CN4803)
qs FRONT-L board
B
C
A
2 flexible flat cable (14P)
(CN4801)
1 flexible flat cable (8P)
(CN4802)
9 FRONT-EJECT
board
– Panel (front) rear bottom view –
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
B
C
A
7 flexible flat cable (5P)
(CN4804)
6 FRONT board
1 flexible flat cable (19P)
(CN4401)
5 cushion (FL)
5 cushion (FL)
2 two screws
(BVTP2.6)
– Panel (front) rear bottom view –
4 Remove the FRONT board block
in the direction of the arrow.
colored line
Insert straight into the interior.
flexible flat
cable
connector
OK
colored line
Insert at a slant.
flexible flat
cable
connector
NG
Note 1:
When installing the flexible flat cable, ensure that
the colored line is parallel to the connector after insertion.
3 two claws
Note 2: When installing the FRONT board, be sure to confirm that
the FRONT board has fitted into these two claws firmly.

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
