Sony MAP-S1 Service Manual

93
MAP-S1

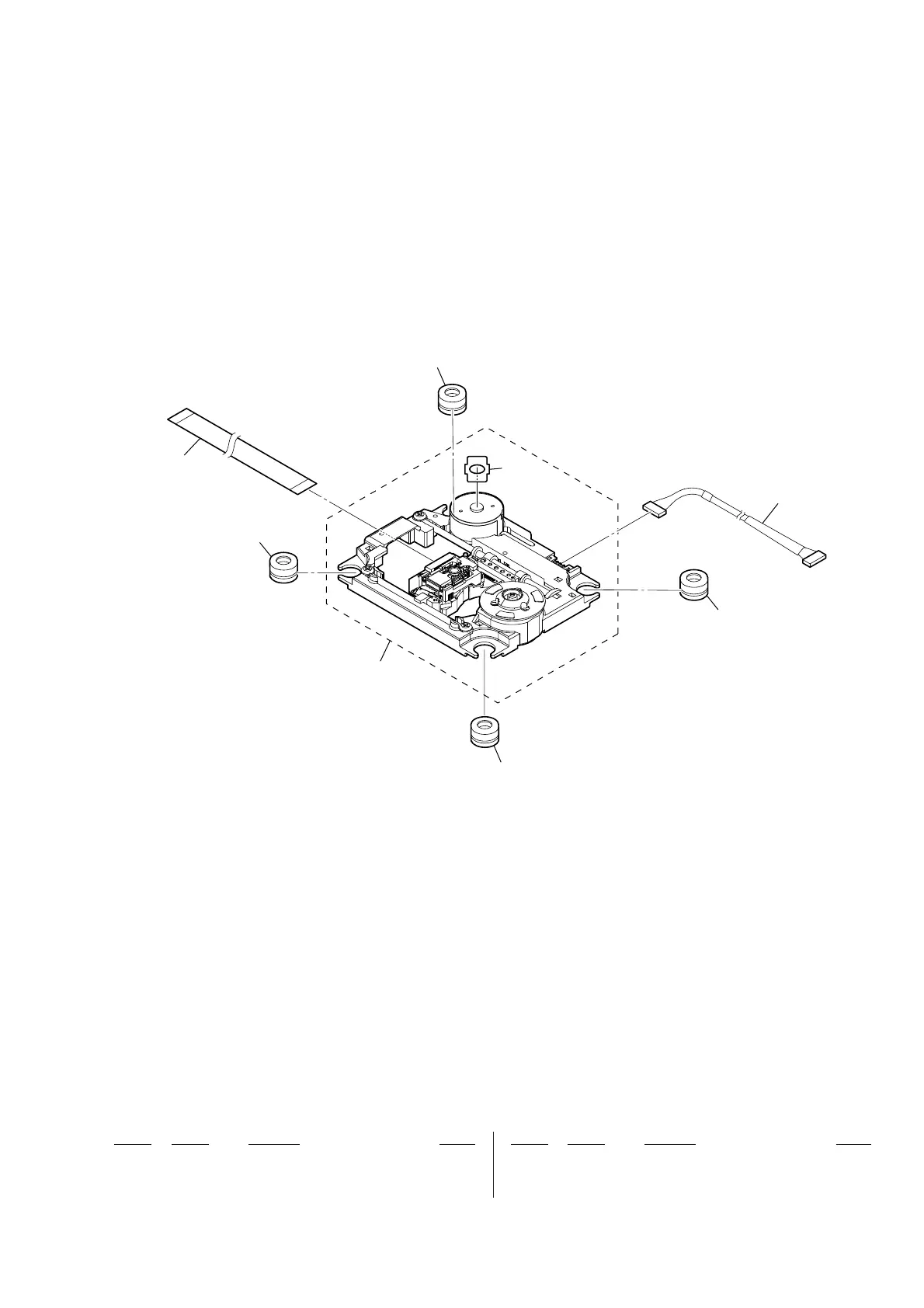

6-6. OPTICAL PICK-UP SECTION
251 4-456-402-01 INSULATOR
252 4-418-987-01 SHEET (S76)
FFC9 9-885-194-18 FY14 FFC (0.5 mm_24P_OP)
0 OP1 A-1940-584-A OPTICAL PICK-UP BLOCK (CMS-S76RFS7G)
(for SERVICE) (Including sled motor, spindle motor)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
OP1
252
251
251
251
FFC9
not supplied
251

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
