Sony MAP-S1 Service Manual

94
MAP-S1

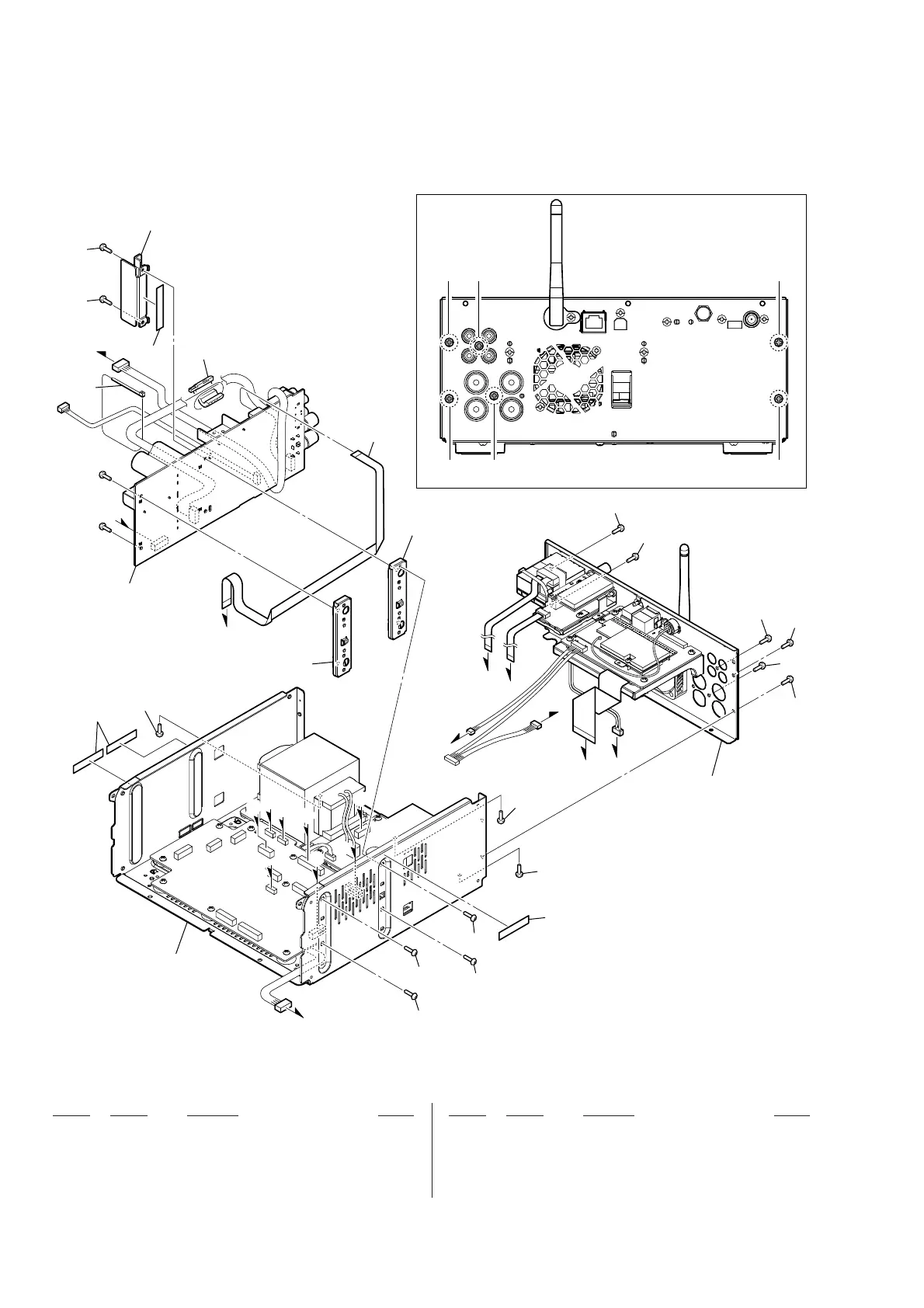

6-7. AMP BOARD SECTION
301 A-2057-116-A AMP BOARD, COMPLETE
302 3-704-515-22 SCREW (BV/RING)
303 4-275-263-01 SHEET (RADIATION)
304 3-077-331-21 +BV3 (3-CR)
305 4-538-712-01 SCREW (BV3X10 RING)
306 3-655-653-01 BAND (TAITON), BINDING
FC2 1-481-530-21 FILTER, CLAMP (FERRITE CORE)
FFC10 9-885-194-26 FY14 FFC (1.0 mm_9P_AMP)
#1 7-685-871-01 SCREW +BVTT 3X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
K
G
O
J
H
I
M
N
H
K
L
O
G
M
N
I
L
J
tuner section
chassis section
not supplied
not supplied
not supplied
FFC10
301
302
302
302
302
302
302
302
305
FC2
#1
#1
302
302
303
306
304
304
304
304
304
304
304
not supplied
not supplied
– Rear view –
302 305
302 302

Sony MAP-S1 Specifications

General

Receiver type	stereo
Audio output channels	2.0 channels
Power output per channel (20-20KHz@8 Ohm)	100 W
HDMI in	0
Audio (L/R) in	1
Connectivity technology	Wired & Wireless
Speakers connectivity type	Binding post
Ethernet LAN	Yes
Supported radio bands	AM, FM
Optical drive type	CD player
Card reader integrated	No
Display	-
Product color	Silver
Volume control	Rotary
Apple docking compatibility	Not supported
Power consumption (standby)	0.4 W
Power consumption (typical)	55 W
