Sony UP-D898MD - 1-5. Removing;Installing the Cabinet

1-7 (E)
UP-D898MD/X898MD
1-5. Removing/Installing the Cabinet
1-5-1. Top Cover

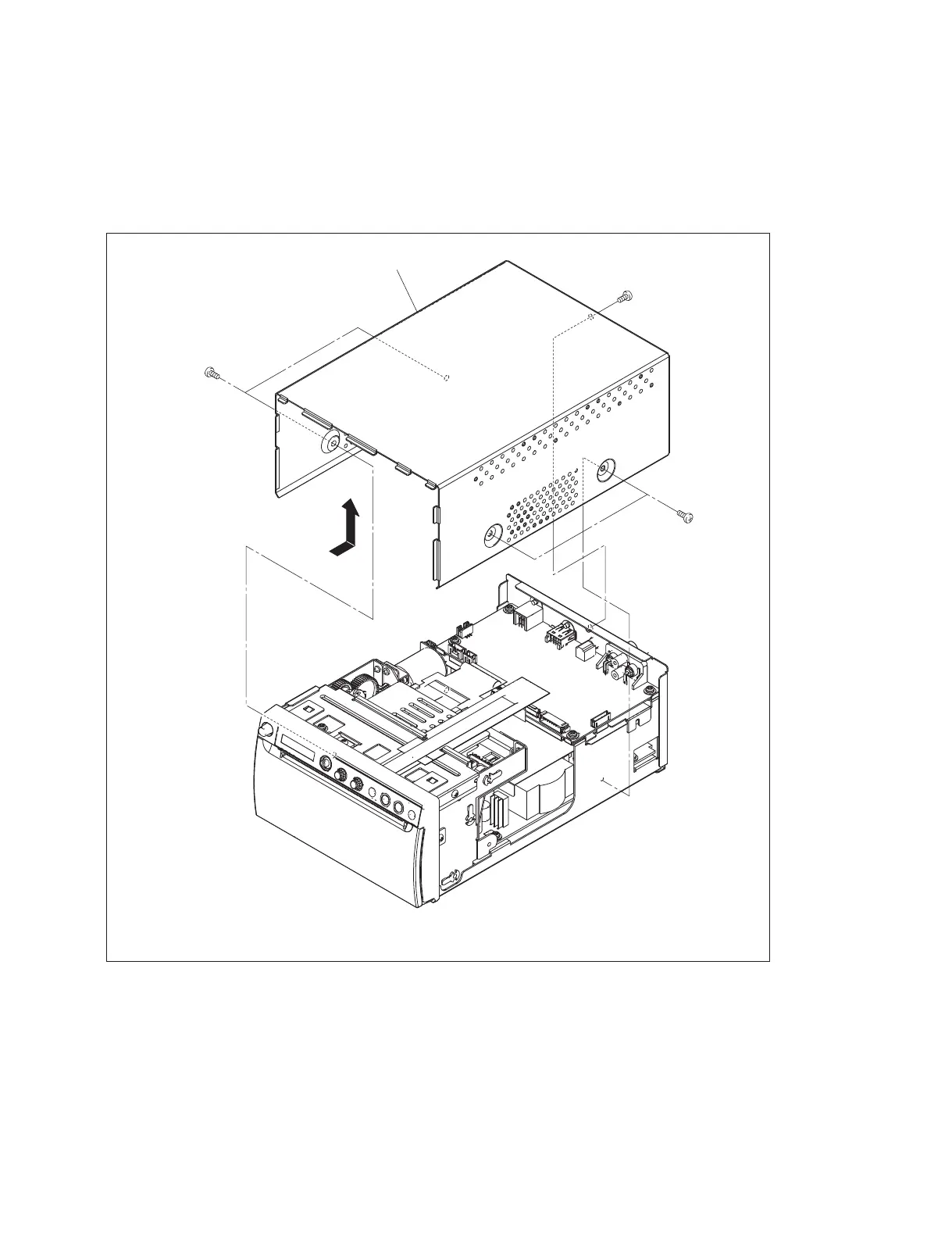

1. Remove the five screws, then remove the top cover in the direction of the arrow.
2. To install, reverse the removal procedure.
B3 ) 6
B3
) 6
B3
) 6
The illustration indicates UP-X898MD.
Top cover
