3-31 (E)
UP-D898MD/X898MD
3-10. Platen Roller
n
Be sure careful not to touch it with bare hands or using dirty gloves when replacing the platen. Wipe it
using soft cloth moistened with ethanol of 76.9 to 81.4 v/v% in concentration when the platen roller
became dirty.

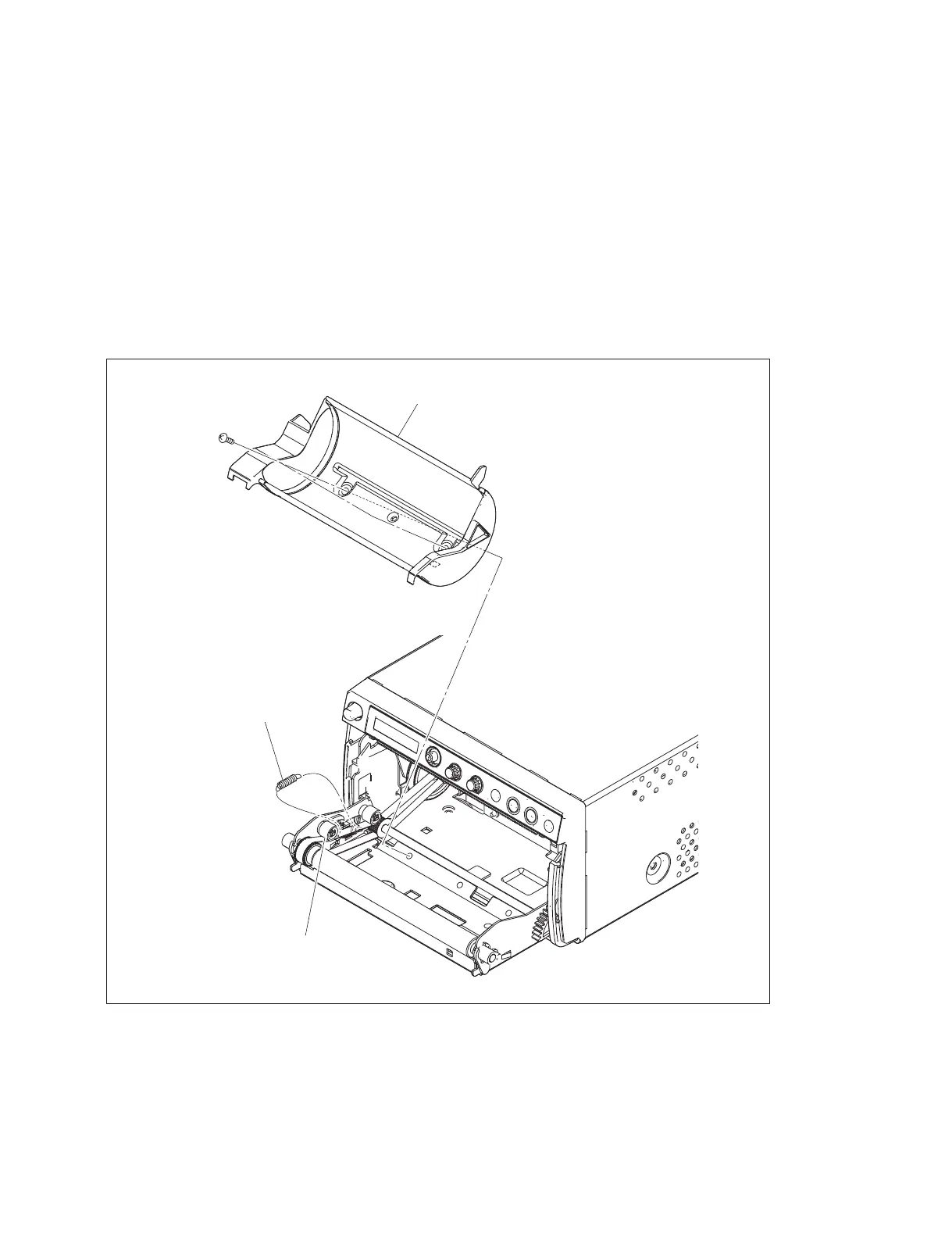

1. Remove the door panel assembly. (Refer to steps 2 and 3 in Section 1-5-2.)
2. Remove the two screws, then remove the paper holder 110 assembly.
3. Remove the helical extension spring of the tension arm assembly.
BVTT2.6 ) 5
Paper holder 110 assembly
Helical extension spring
Tension arm assembly
To Next Page
