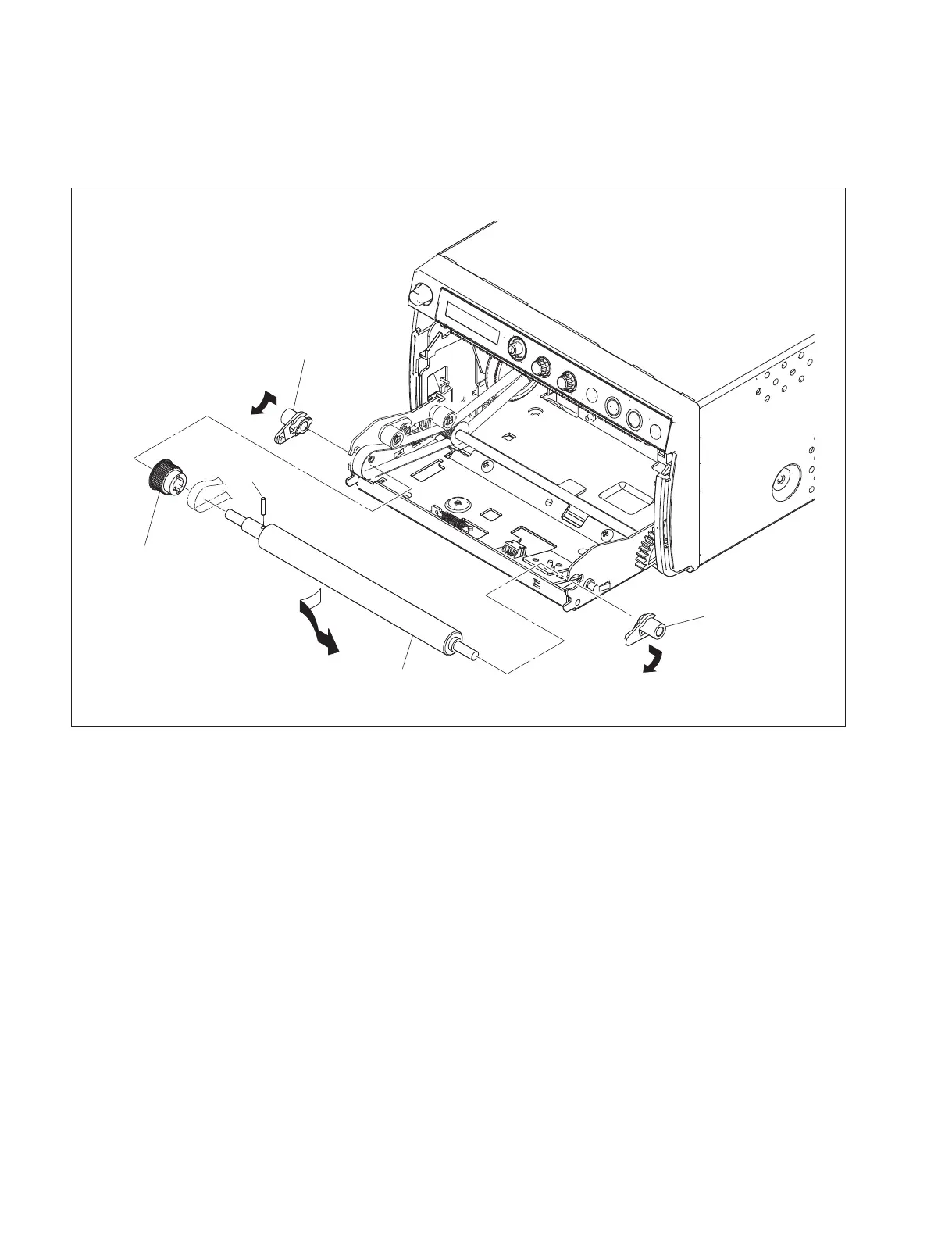

4. Rotate the two platen bearings in the direction of the arrow A to remove them.
5. Remove the platen roller in the direction of the arrow B.
6. Remove the platen pulley and parallel pin from the platen roller.
7. To install, reverse the removal procedure.
A
A
B
Platen bearing
Platen bearing
Platen roller
Platen pulley
Parallel pin
