Sony UP-D898MD - Front Panel Block Assembly

1-8 (E)
UP-D898MD/X898MD
1-5-2. Front Panel Block Assembly
1. Remove the top cover. (Refer to Section 1-5-1.)
2. Release the lock arm on the mechanical deck portion (bottom) in the direction of the arrow A, then
open the door block assembly in the direction of the arrow B.
3. Remove the two hooks in the right and left directions of the arrows C, then remove the door panel in
the direction of the arrow D.
4. Disconnect the flexible flat cable from the connector (CN1103) on the MA-195 board.

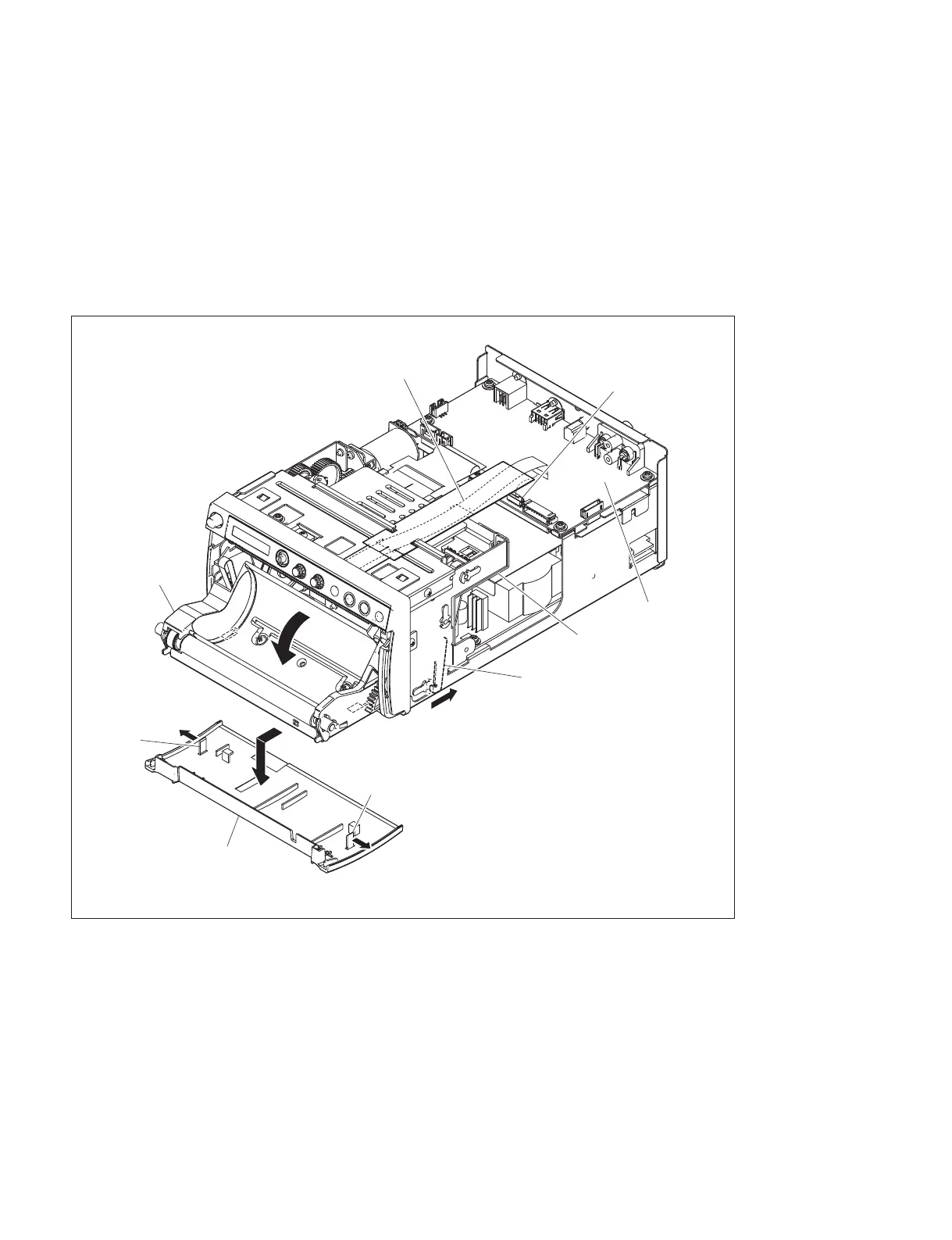

The illustration indicates UP-X898MD.
Hook
B
A
C
C
D
Door panel
Door block assembly
Lock arm
MA-195 board
Mechanical deck portion
CN1103
Flexible flat cable
Hook
