1-9 (E)
UP-D898MD/X898MD
5. Close the door block assembly.
6. Remove the FFC guard (KY) from the portion A of the MD top chassis.
7. Remove the three screws and four hooks, then remove the front panel block assembly.
8. Remove the FFC guard (KY) from the flexible flat cable.
9. To install, reverse the removal procedure.

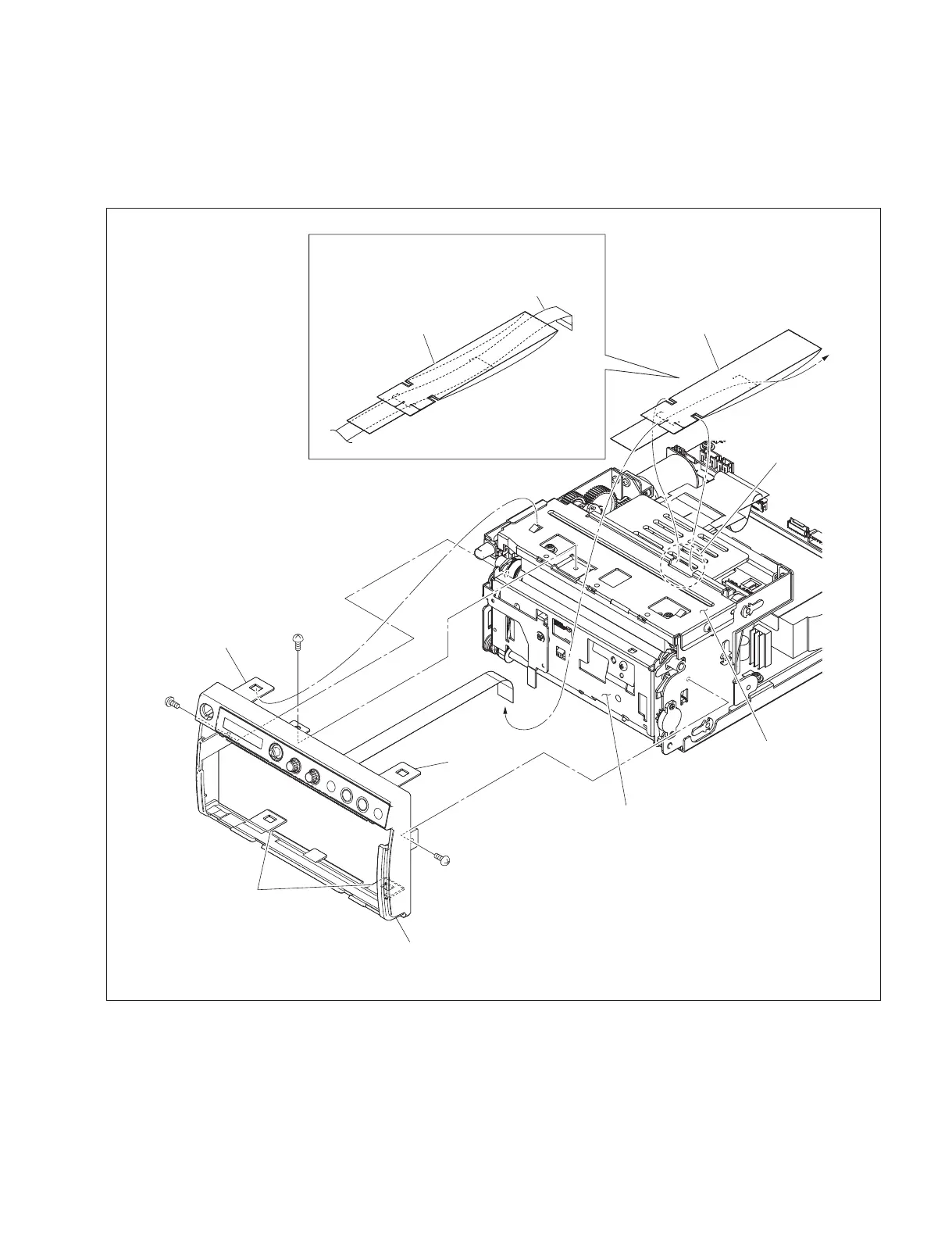

The illustration indicates UP-X898MD.
Hook
Hooks
Hook
BVTT
2.6 ) 4
BVTT
2.6
) 4
BVTT
2.6
) 4
Flexible flat cable
FFC guard (KY)
Portion A
FFC guard (KY)
When attaching the flexible flat cable, route it
through the FFC guard (KY).
Front panel block assembly
MD top chassis
Door block assembly
