3-6. MD General Assembly

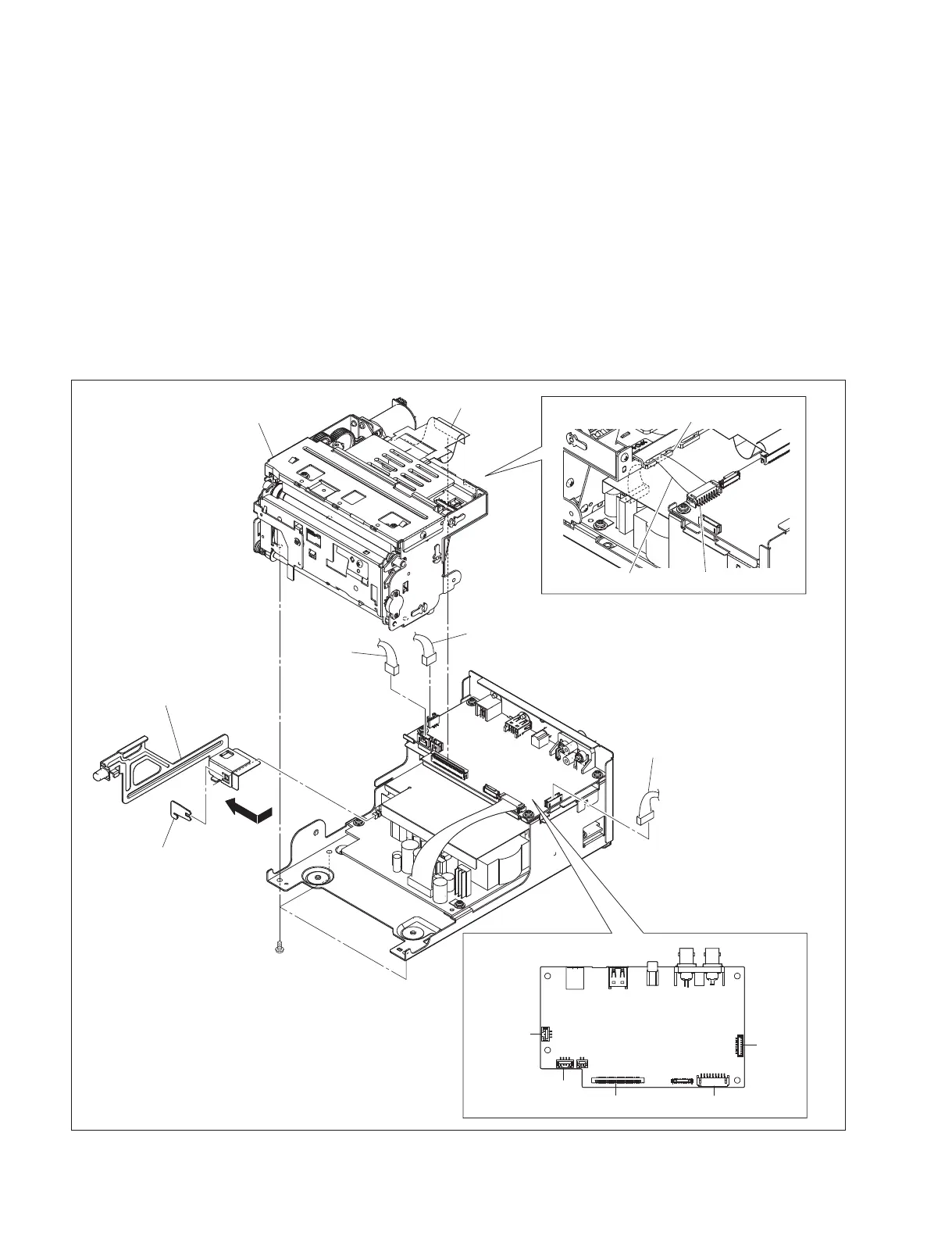

1. Remove the top cover. (Refer to Section 1-5-1.)
2. Remove the front panel block assembly. (Refer to Section 1-5-2.)
3. Remove the SW rod retainer, then remove the power SW rod in the direction of the arrow.
4. Disconnect the three harnesses from the connectors (CN1101, CN1201 and CN1202) on the MA-195
board.
5. Disconnect the flexible flat cable from the connector (CN701) on the MA-195 board.
6. Remove the harness that is connected to the connector (CN101) on the MA-195 board from the
harness holder.
7. Remove the three screws, then remove the MD general assembly.
8. To install, reverse the removal procedure.
BVTT
2.6 ) 5
SW rod retainer
Power SW rod
Harness
Harness
Harness
Flexible flat cable
MD assembly
The illustration indicates UP-X898MD.
Harness CN101
Harness holder
CN1202
CN701 CN101
CN1101
MA-195 board (Side A)
CN1201
