3-30 (E)
UP-D898MD/X898MD
Installation
7. Attach the cam assembly in the reverse order of steps 5 and 6.
n

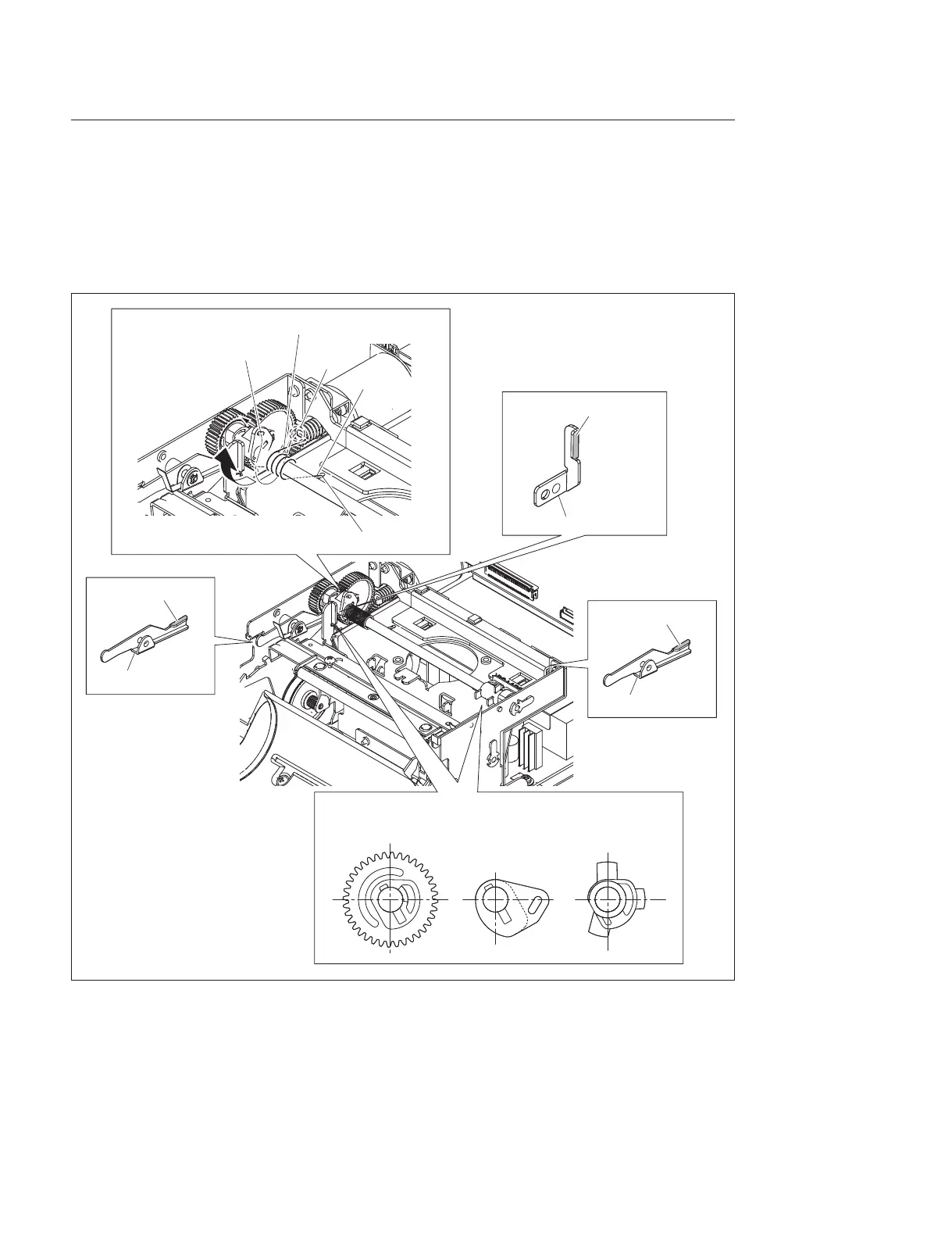

When attaching the cam assembly, attach it so that the cams are facing the direction as shown in the
illustration.
8. Insert the portion A of the helical torsion spring (cam L) into the hole of chassis, then insert the
portion B into the hole of cam (L) while rotating it in the direction of the arrow.
9. Assemble this unit in the reverse order of steps 1 to 4.
n
When replacing the cam gear, cam (L) and cam (R), it is required to apply grease.
. Grease: 7-640-005-36 (SANKOL FG87HSR)
. Grease applying portion
When replacing the cam gear and cam (R): Head up lever
When replacing the cam (L): Lock arm assembly
Portion A
Portion B
Cam (L) Cam (R)Cam gear
Phase
Helical torsion spring (cam L)
Hole of cam (L)
Chassis of hole
Head up lever
Apply grease
Head up lever
Apply grease
Lock arm assembly
Apply grease
