3. Test Print tab
1 Test Pattern
Selects the image pattern to be printed.
. STEP: Built-in stair-step pattern
. CROSS STEP: Built-in cross step pattern
. LAMP: Built-in lamp image
. CROSS LAMP: Built-in cross lamp image
. SKEW LAMP: Built-in skew lamp image
. HEAD CONFIRM PAT1: Built-in thermal head confirmation pattern 1
. HEAD CONFIRM PAT2: Built-in thermal head confirmation pattern 2
. LOG: Log information in this unit
. BLACK (S/L)
*
: Built-in 100% black pattern
. DARK GRAY (S/L)
*
: Built-in gray pattern (darker)
. GRAY (S/L)
*
: Built-in gray pattern
. LIGHT GRAY (S/L)
*
: Built-in gray pattern (lighter)
. WHITE (S/L)
*
: Built-in 100% white pattern
*: Print size: Horizontal x Vertical [mm]
S: 100 x 75
L: 100 x 117

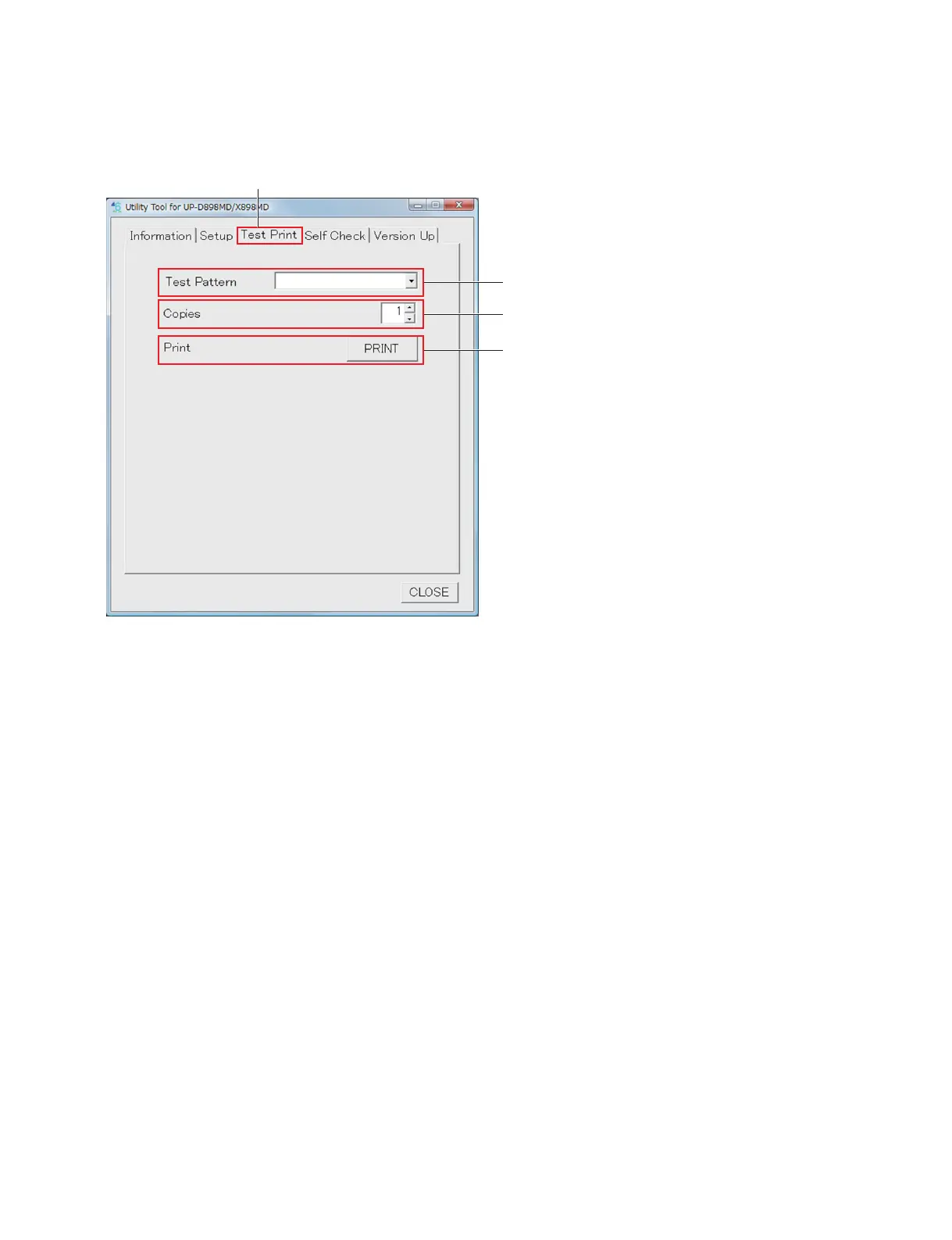

Test Print tab
1
2
3
