3-34 (E)
UP-D898MD/X898MD

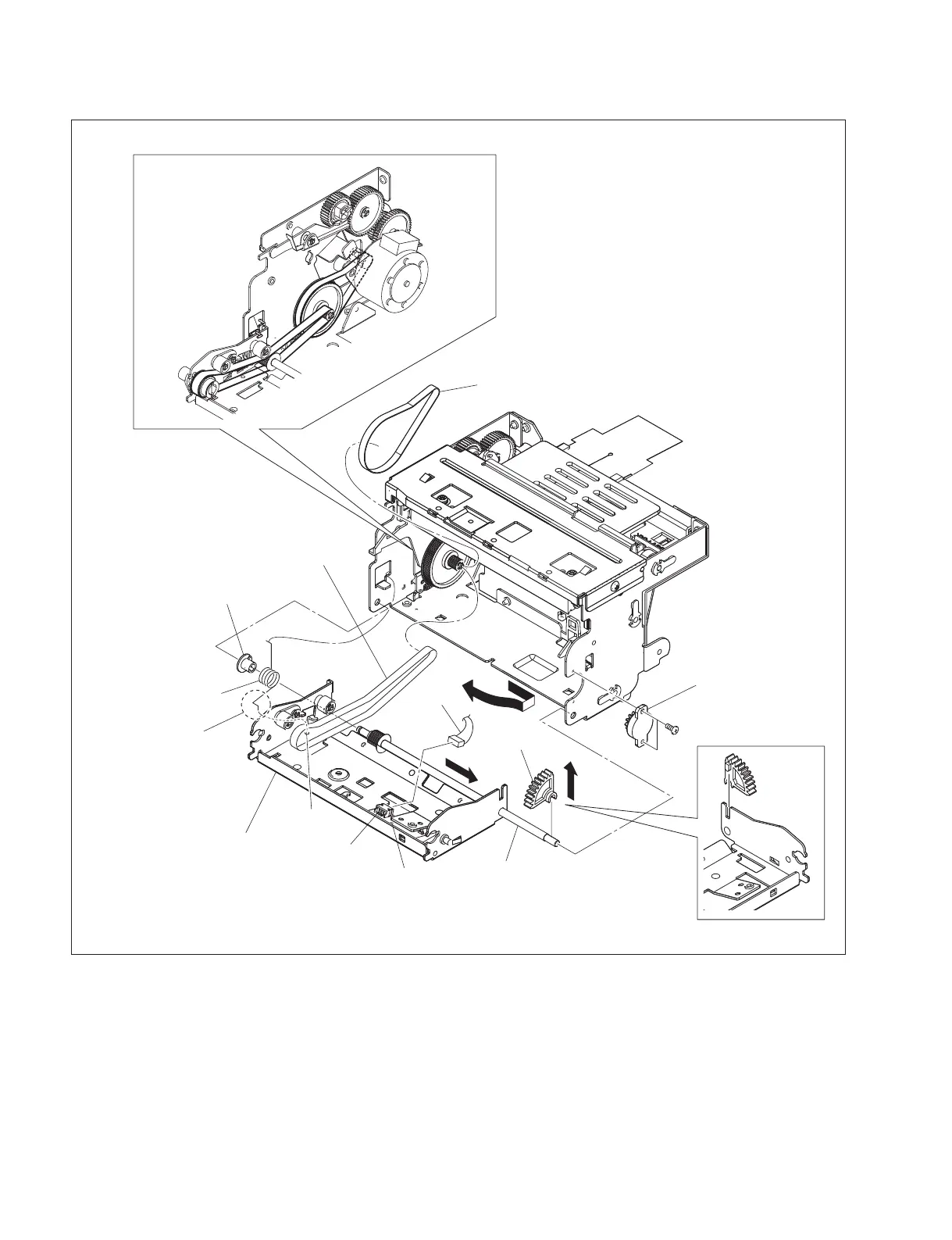

13. To install, reverse the removal procedure.
n
Remove the slack of the harness connected from the SE-1143 board on the side of the SE-1142 board.
(Refer to Section 3-4.)
P2 ) 4
Oil damper
A
c
B
Damper gear
Harness
Helical torsion spring
(door)
Hole
Portion C
CN301
SE-1143 board
Door block assembly
Fulcrum spacer
Timing belt (140TN10-4.0T)
Timing belt
(220TN10-5.0T)
Fulcrum shaft
