User Manual
SPACE s.r.l.
Soc.a socio unico
PFB035 SERIES PFB040 SERIES
PFB045 SERIES PFB060 SERIES
SPRT102/4 SERIES SPRT102/5 SERIES
SPRT102/6 SERIES SPRT102/7 SERIES
Code M0247 - Ver.1.4
(09/2016)
SPACE s.r.l. 10090 TRANA (TO) Via Sangano, 48
Page 31/68
Tel. (+39) 011/ 934 40 300 Fax (+39) 011/ 933 88 64
e-mail: info@spacetest.it - www.spacetest.com

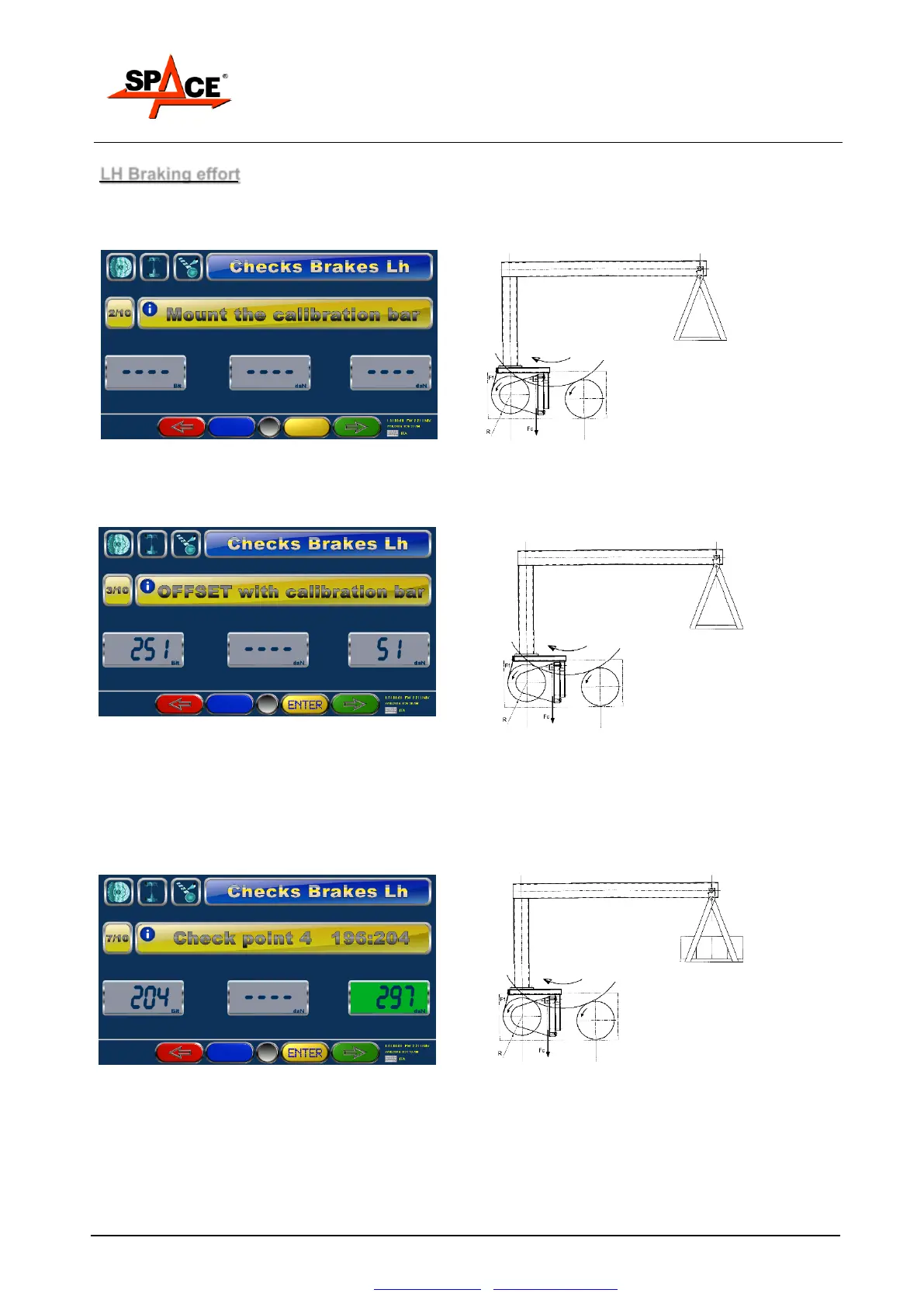

LH Braking effort
1/5) - Fit the calibration tool as indicated in Figure, without putting weight into the basket.
Press F4 to proceed.
2/5) - Press ENTER/F3 to store the OFFSET. Press F4 to proceed.
3/5) Put the 10Kg weights in the basket (every weight correspond to 100daN of effort).
Only authorized personnel can set the check points for the calibration.
Press ENTER/F3 to store the check point and F4 to proceed.
DRIVE DIRECTION
DRIVE DIRECTION
DRIVE DIRECTION
