Appendix A: Multiple Chassis Local Connect
Multi-chassis Extension Unit
SmartBits 600x/6000x Installation Guide | 103
Beginning with the configuration shown in Figure A-13 on page 102, you can add eight
more chassis to each extension unit (Figure A-14). You may repeat this procedure until
you reach 512 chassis.
Important: When measuring cable length from a SmartBits chassis to an extension unit,
and to another SmartBits chassis, remember that the total cable length can be any variable
under 50 feet.

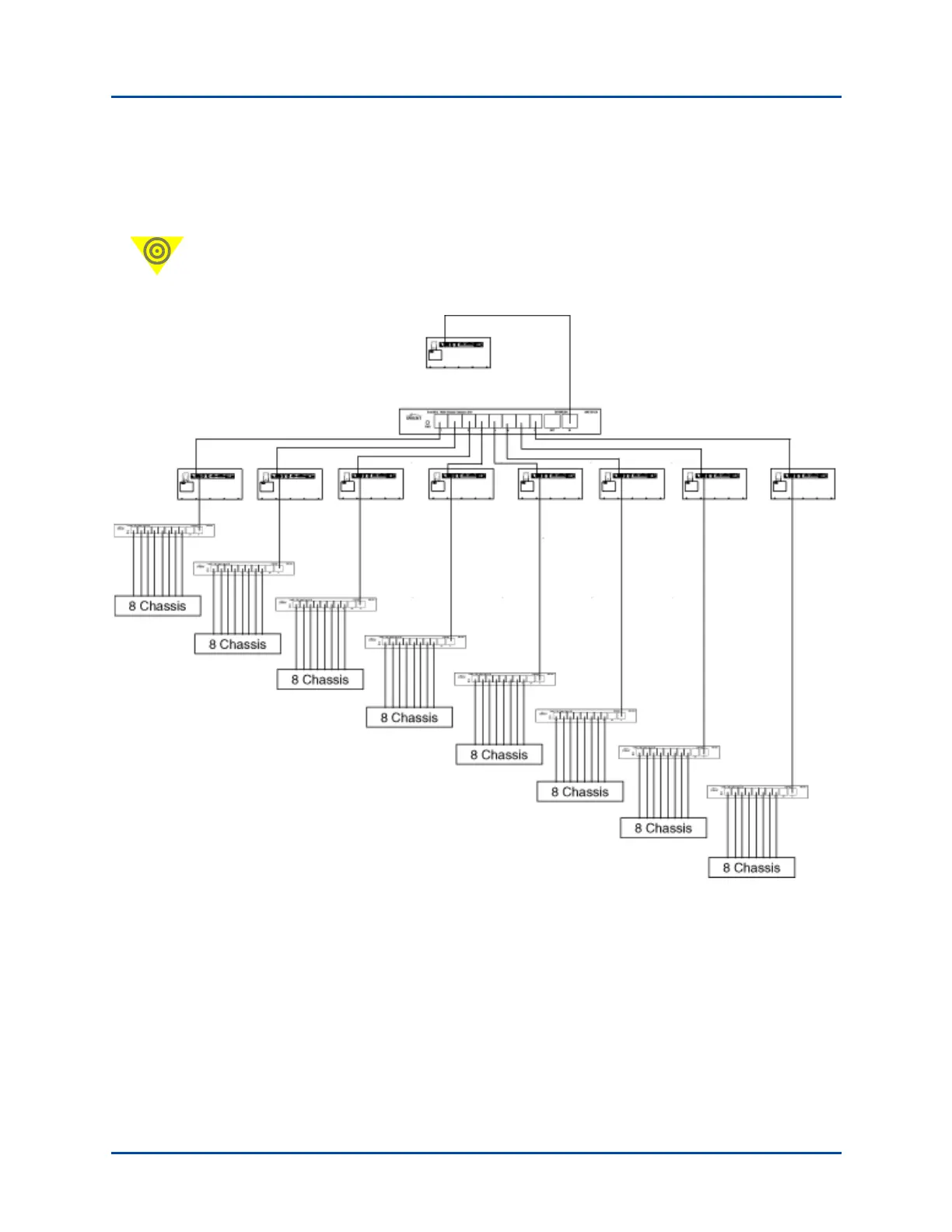

Figure A-14. Connecting Chassis Through an Extension Unit in a Hierarchical Connection Configuration
