Waukesha Cherry-Burrell
®
Brand Universal 3 Pump Maintenance
11/2018 95-03103 Page 41
4. Install the drive ring with the tab protrusions facing the pump
body.
NOTE: The side of the drive ring tab that protrudes, faces the
body; the flat side of the tab faces up. (The flat side of the tab
is facing the camera in Figure 56 and Figure 57.)
5. Figure 57 shows the drive ring installed.
6. Install the wave spring, centering it on the drive ring.
7. Figure 59 shows the wave spring installed.

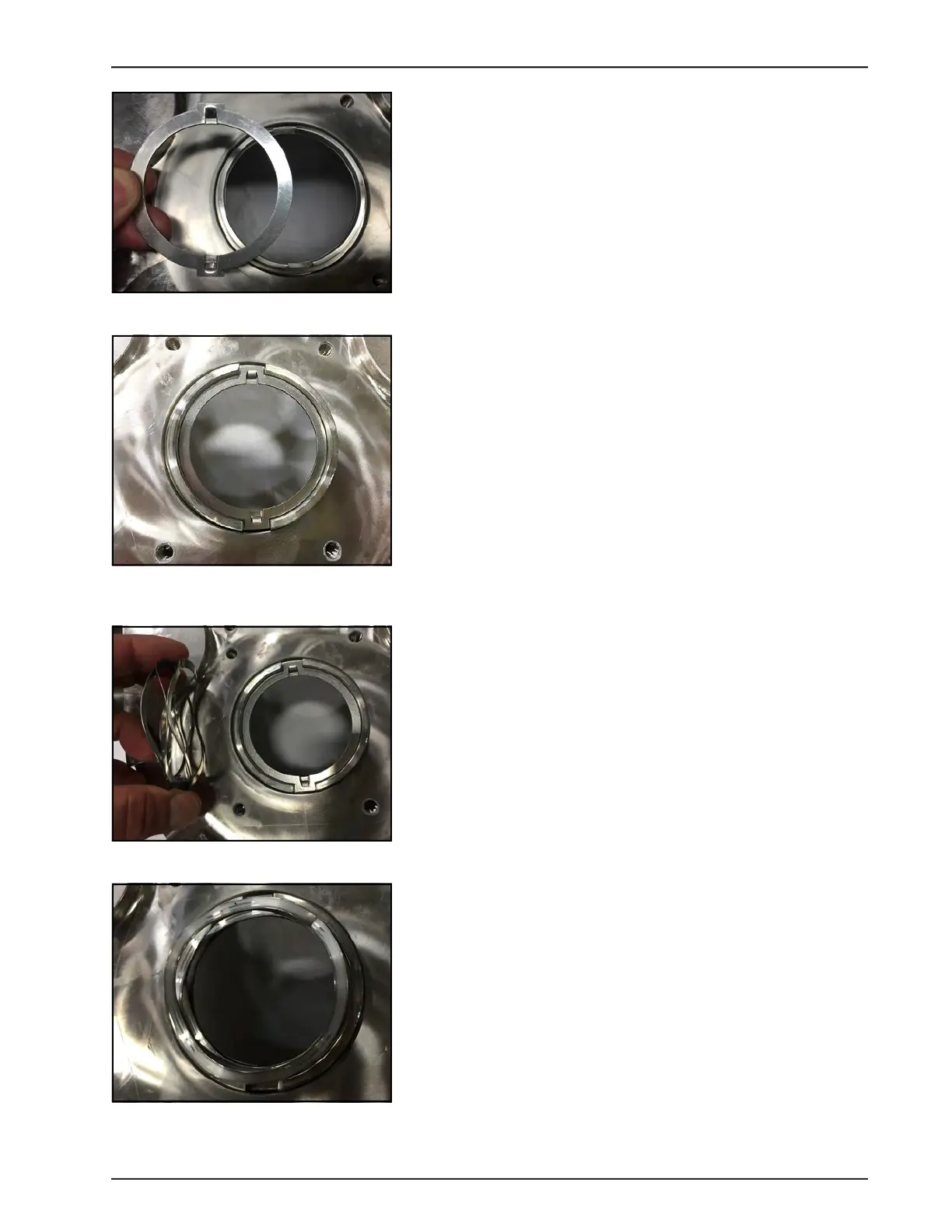

Figure 56 - Install drive ring
Figure 57 - drive ring installed (130-U3
and smaller
Figure 58 - Install wave spring
Figure 59 - Wave spring installed
