Maintenance Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Page 42 95-03103 11/2018
8. Install the seal housing. as shown in Figure 60.
NOTE: Note the alignment of the drive ring tabs and shaft
ring.
9. Lubricate the threads of the seal housing bolts with food
grade anti-seize. Push down on the seal housing to
compress the seal spring, and install the 4 seal housing bolts.
10. Torque the bolts to the specified torque value:
11. Figure 62 shows the seal housing installed.
12. Repeat these steps for the second seal.

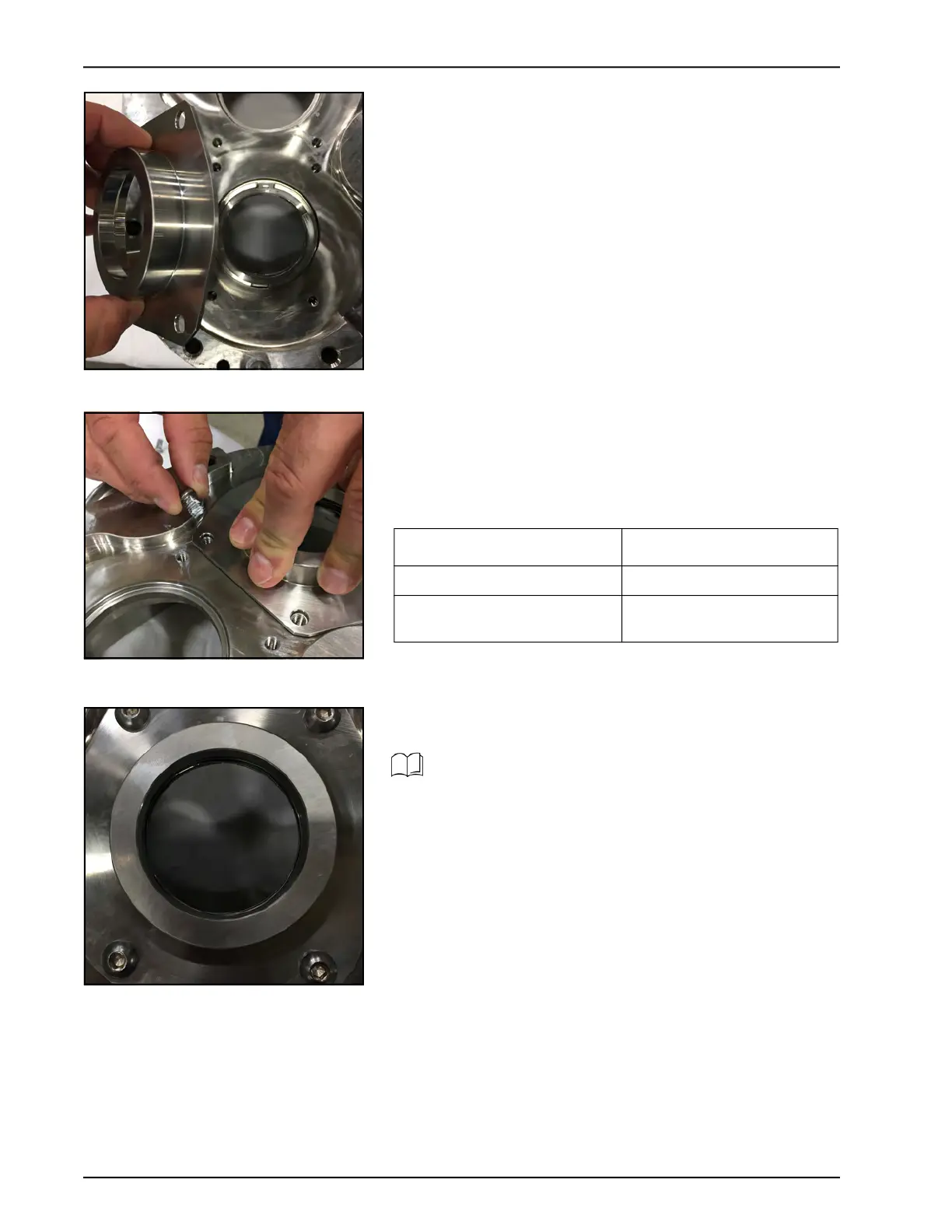

Figure 60 - Install seal housing
Figure 61 - Install seal housing bolts
Table 7: Seal Housing Bolt Torque
U3 Model Seal Housing Bolt Torque
006, 015, 018 7.4 ft-lb / 10 N·m
030, 040, 045, 060, 130, 180,
220, 210, 320
14.8 ft-lb / 20 N·m
Figure 62 - Seal housing installed
Skip to “Install Pump Body” on page 63.
