27. Figure 107 shows the rotary seal O-ring installed on the
shaft.
28. Install the flush-side rotary seal onto the shaft, aligning the
tab with the notch on the seal.
29. Figure 109 shows the seal installed.

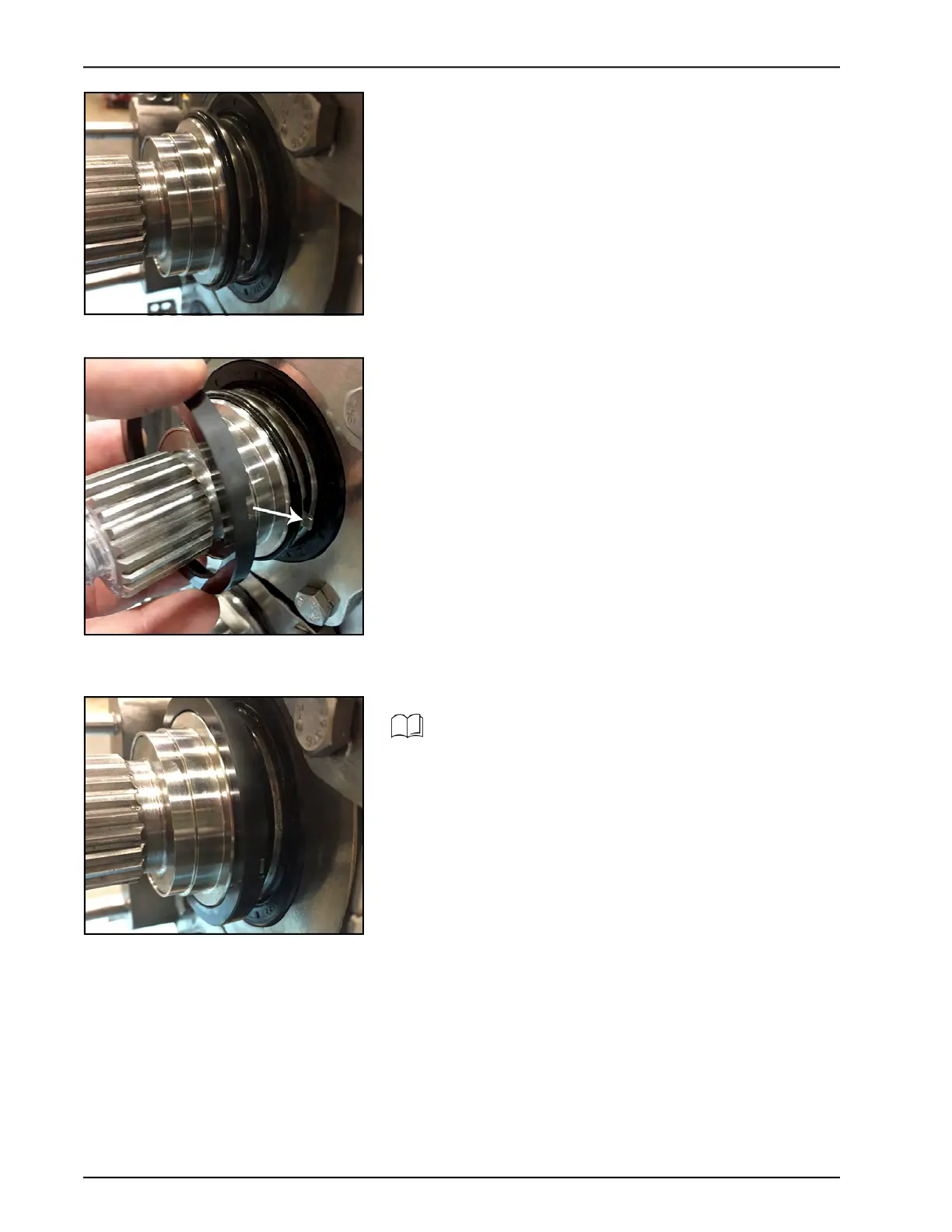

Figure 107 - O-ring installed
Figure 108 - Install flush-side rotary
seal
Figure 109 - Rotary seal installed
Skip to “Install Pump Body” on page 63.
