Maintenance Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Page 58 95-03103 11/2018
6. Install the seal housing. Align the drive ring tabs with the
notches in the seal housing.
7. Figure 114 shows the 180-U3 seal housing in place. Note the
orientation of the flat (arrow), facing the center of the pump
body.
8. Install the 4 seal housing bolts. Torque the bolts to the
specified torque value:

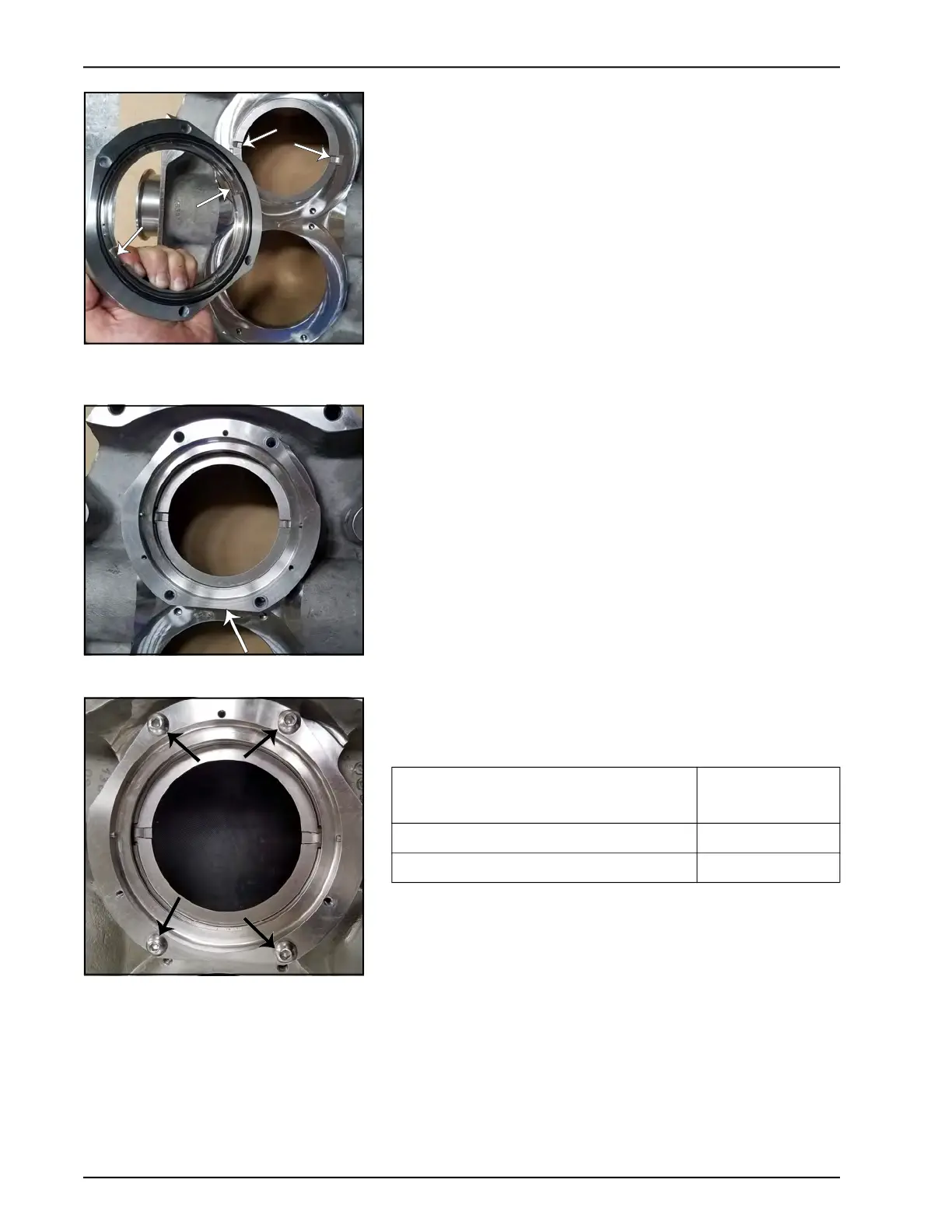

Figure 113 - Seal housing O-ring
installed
Figure 114 - Seal housing in place
Figure 115 - Seal housing bolts
Table 10: Seal Housing Bolt Torque
U3 Model
Seal Housing
Bolt Torque
006, 015, 018 7.4 ft-lb / 10 N·m
030, 040, 045, 060, 130, 180, 220, 210, 320 14.8 ft-lb / 20 N·m
