Waukesha Cherry-Burrell
®
Brand Universal 3 Pump
Maintenance
11/2018
95-03103
Page 59
9.
Install
the
lubricated
stationary
seal
O-ring
as
shown
in
Figure
116.
10.
The
stationary
seal
O-ring
is
located
between
the
seal
housing and the drive ring.
11.
Install the wave spring.

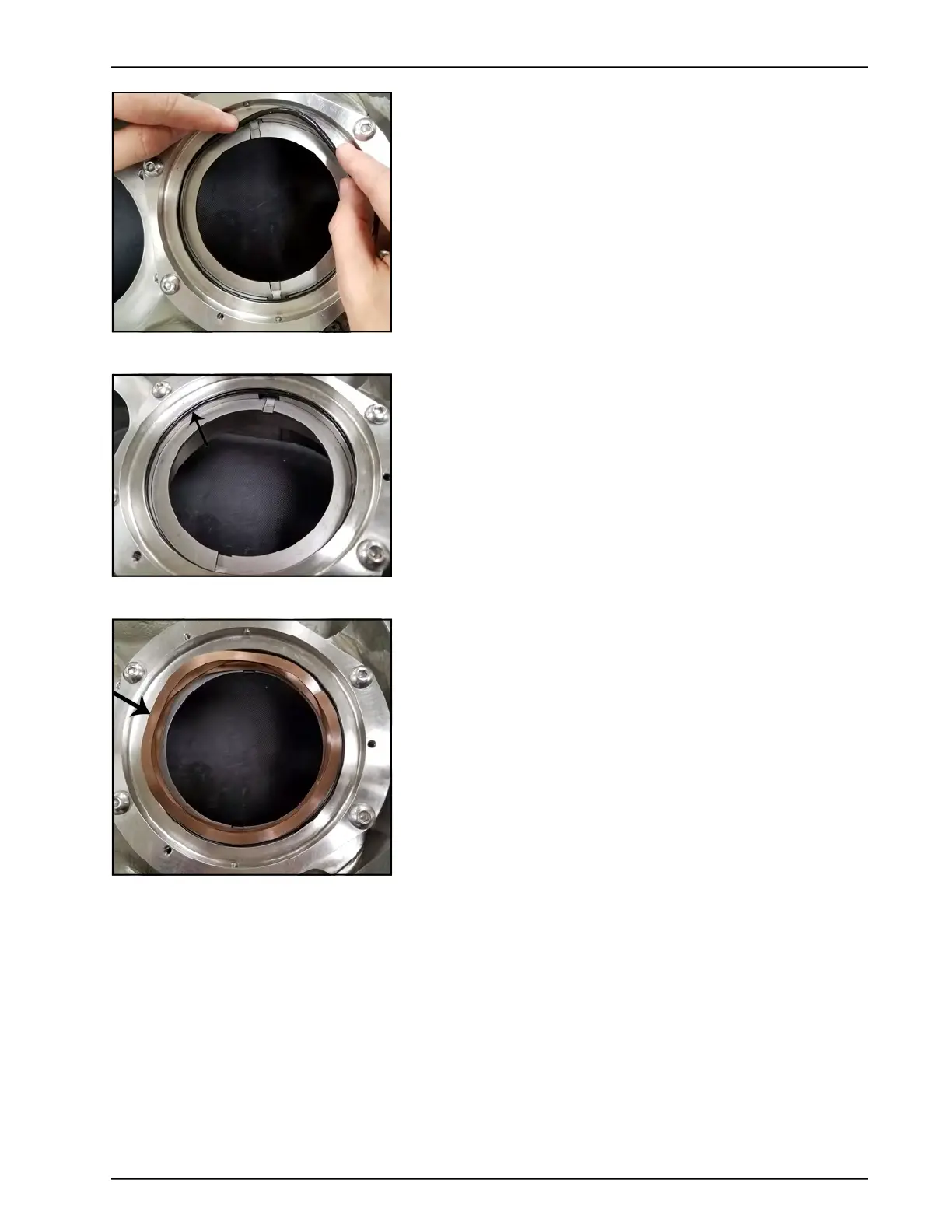

Figure 116 - Install seal O-ring
Figure 117 - Seal O-ring location
Figure 118 - Wave spring installed
58
