4.3.5 Skids and brushes
Each system comes with a universal brush and skid set that allows you to adapt your camera and pushrod
for deployment in pipes from 2” (50mm) to 6” (150mm). The universal brush and skid set works with 1”
(25mm) and 2” (50mm) cameras and the 25mm solid sonde, flexisonde, universal flexi and the 35mm
flexisonde. The W-skid can be used with the 2” (50mm) camera for diameters up to 9” (225mm).
Skids protect the camera from damage and allow it to safely navigate larger pipes. Use skids with the
camera wherever possible. A central pipe view is typically the best.
Figure 4.1 illustrates a 1.4” (35mm) flexisonde and the brush and skid set required to aid the camera and
pushrod deployment in pipes of up to 6” (150mm) in diameter.
NOTE: Pearpoint recommends using two skids to help keep the camera level.
Example configuration 1
 Take a 2” (50mm) camera and a 1.4” (35mm) flexisonde suitable for a 2.8” (70mm) or larger
pipe:
 Connect the flexisonde to the pushrod termination socket.
 Connect the camera to the flexisonde socket.
 Install one 2.8” (70mm) skid on the camera.
1
2
1
3
NOTE: 4-off 25mm SPRING
CLAMPS TO BE USED ON
25MM CAMERA AND 25MM
SONDE OR TERMINATION

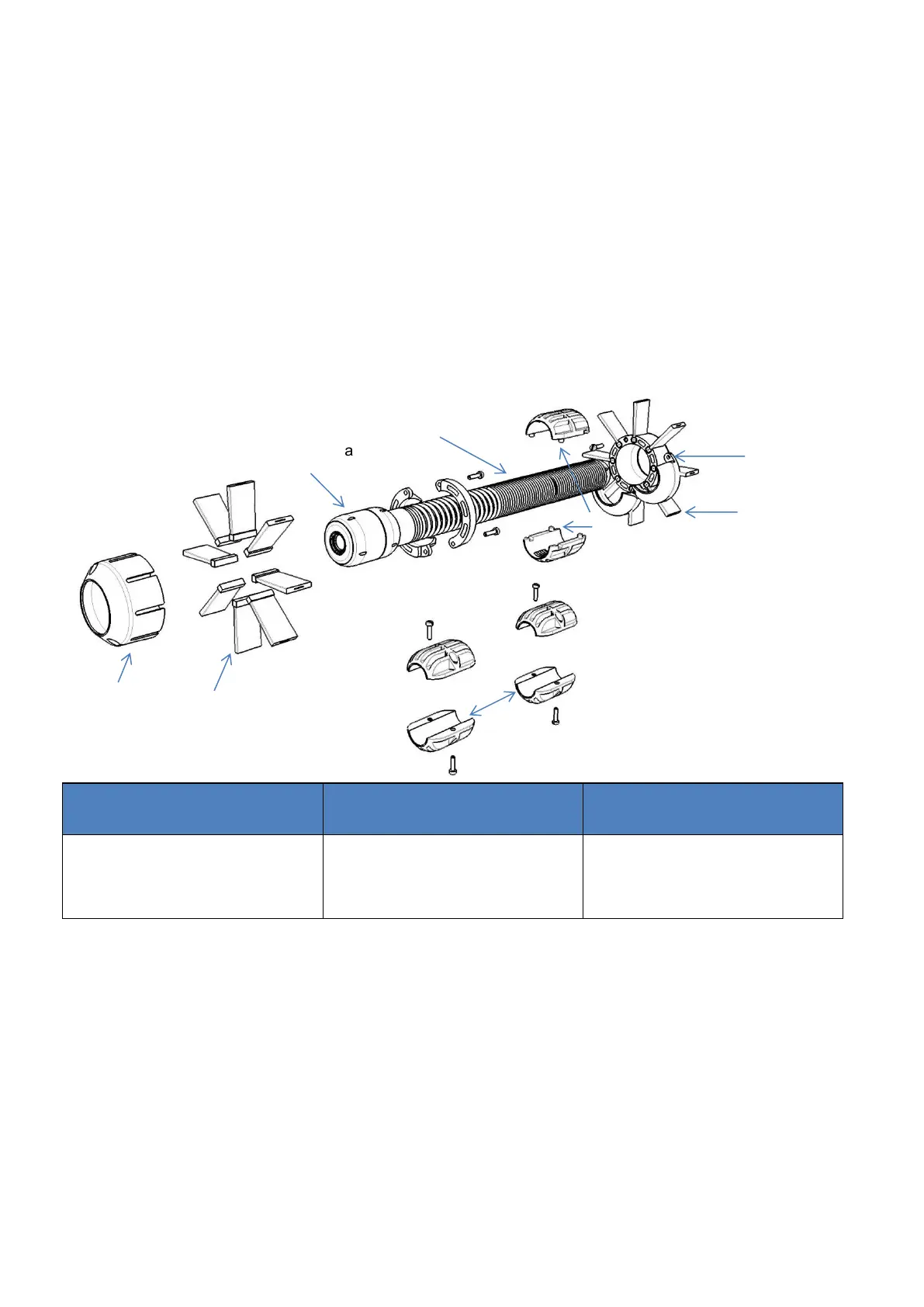

Figure 4.1: Brush and skid set
2” (50mm) camera
1.4” (35mm)
flexisonde
2
3
1 - 25mm or 35mm skid adaptor:
2 - 70mm skid:
3 - Brushes:
Use with sondes, flexisondes and
cameras. Increases diameter to
50mm.
use with 50mm (2”) camera or fit
on top of 25mm 35mm skid
adaptor.
20mm or 45mm brushes to help
center the camera in large diameter
pipes.
