5.5 On-Screen Information
The P340 On-Screen Information provides real-time system and telemetry information overlaid on the
video. The On-Screen Information also displays the top-level system menu when it is active.
On-Screen Information content will change depending on the menu and mode you are in, as well as your
personal settings.
By default the On-Screen Information displays the following information and graphics (see Figure 5.2):
 Time: system time (see Section 5.8.1).
 Date: system date (see Section 5.8.1).
 Recording: Red button indicates recording and playback status (this is not recorded on video).
A camera symbol indicates a JPEG picture file is open (see Section 7.3) (this is not recorded on
video).
 Distance counter: relative camera position in feet or meters (see Section 5.8.1 to change counter
units).
 Menu bar: provides access to direct functions and LCD screen controls (this is not recorded on
video) (see Section 5.6). When Tab menu timeout is enabled it may disappear – press any function
key to make it reappear (see section 5.8.1).
You can personalize the On-Screen Information by changing the screen layout, varying the text
background transparency and text color. See Section 5.10.
Menu bar
Time
Date
Distance Counter

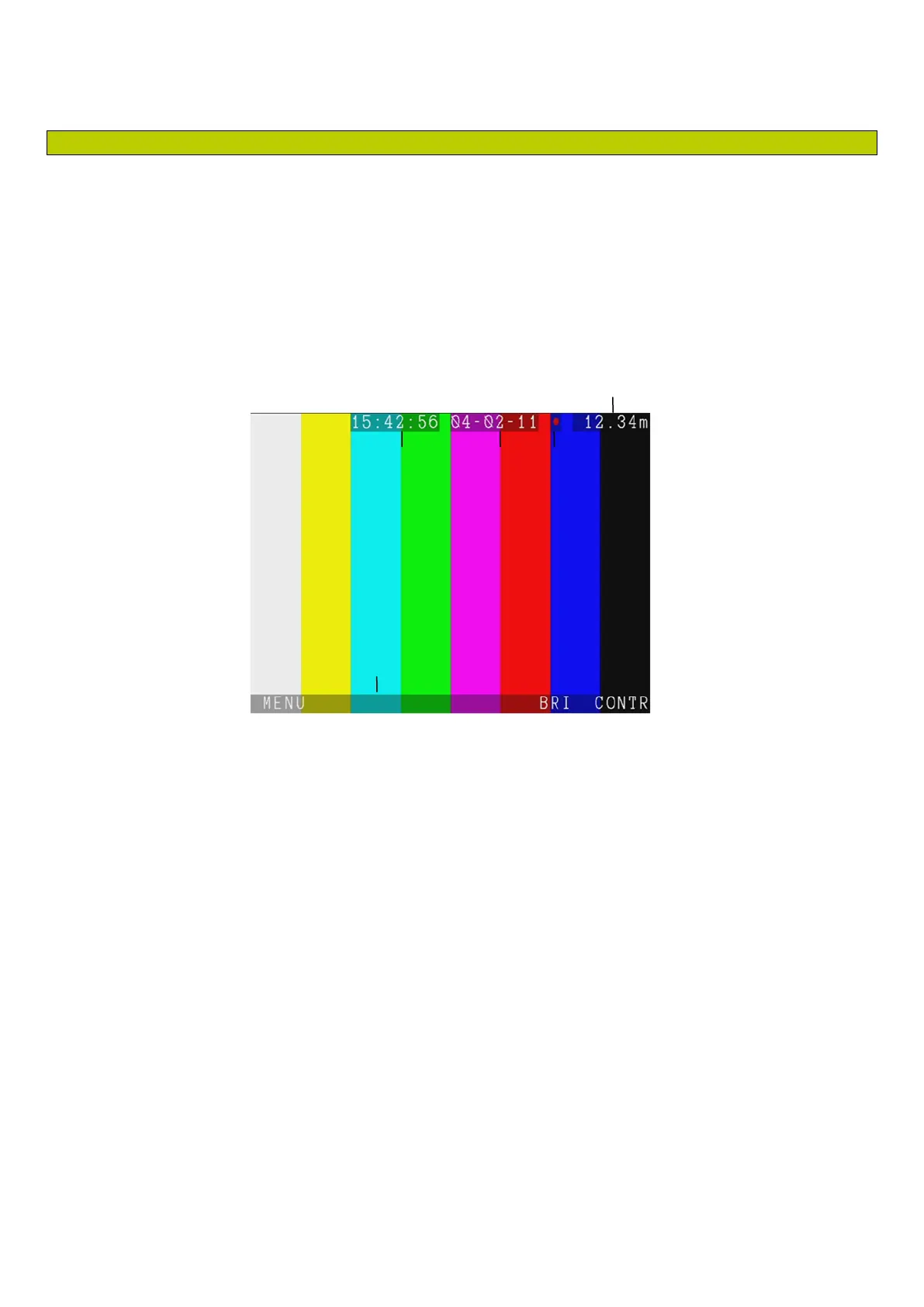

Figure 5.2: System On-Screen information
Recording
