P340 flexiprobe Operation Manual 6
2.2 Pushrod reels and cameras

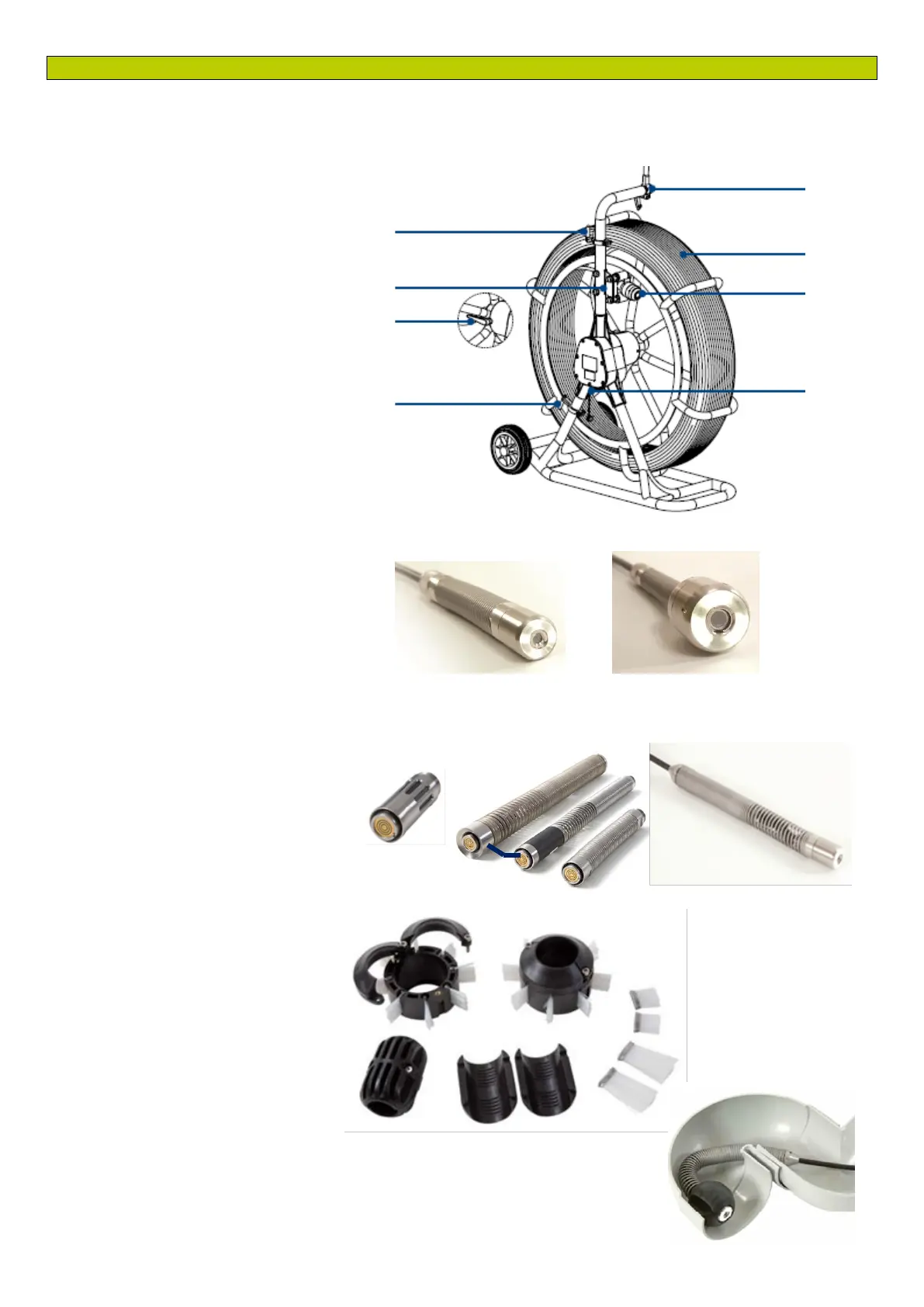

See Figures 2.5 to 2.8.
1. Pushrod Reel: Holds the
pushrod on a revolving reel. The
pushrod can be up to 500ft
(150m) in length (depending on
reel type).
2. Pushrod Guide: Guides the rod
on and off the reel.
3. Brake: Adjustable to control the
movement of the reel, or to lock
it.
4. Adaptor Clamp (optional on the
P341 models): Allows the
controller to be mounted onto
the pushrod reel.
5. Stowage Hooks: To store the
link cable on the push- rod reel.
6. Link Cable Socket: To connect
the link cable to the reel.
7. Camera: Two color camera
options are available:
a. 1” (25mm) diameter,
adjustable-focus camera
for up to 4” (100mm)
diameter pipes.
b. 2” (50mm) diameter,
adjustable-focus, self-
leveling camera for up to
9” (230mm) diameter
pipes.
8. Universal Flexi: Attaches to the
end of the pushrod to allow the
camera to negotiate small radius
bends.
9. Solid Sonde (9a) and
Flexisonde (9b): Attaches to the
end of the pushrod and
transmits a signal to allow the
position of the sonde to be
pinpointed using a RD7000DL+
receiver (optional purchase).
Not-detachable Plumbers sonde
(9c) (Plumbers reels only):
transmits a signal to allow the
Figure 2.5: P343 Pushrod Reel
7
6
1
4
5
2
3
5
Figure 2.6: P340 Cameras
7a
7b
Figure 2.7: Universal flexi and Sondes
9a
9b
9c
8
Figure 2.8: Brushes and skids
10
11
