1
1
4
4
-
-
C
C
e
e
n
n
t
t
r
r
e
e
S
S
e
e
c
c
t
t
i
i
o
o
n
n
M
M
o
o
d
d
u
u
l
l
e
e
R
R
e
e
p
p
l
l
a
a
c
c
e
e
m
m
e
e
n
n
t
t

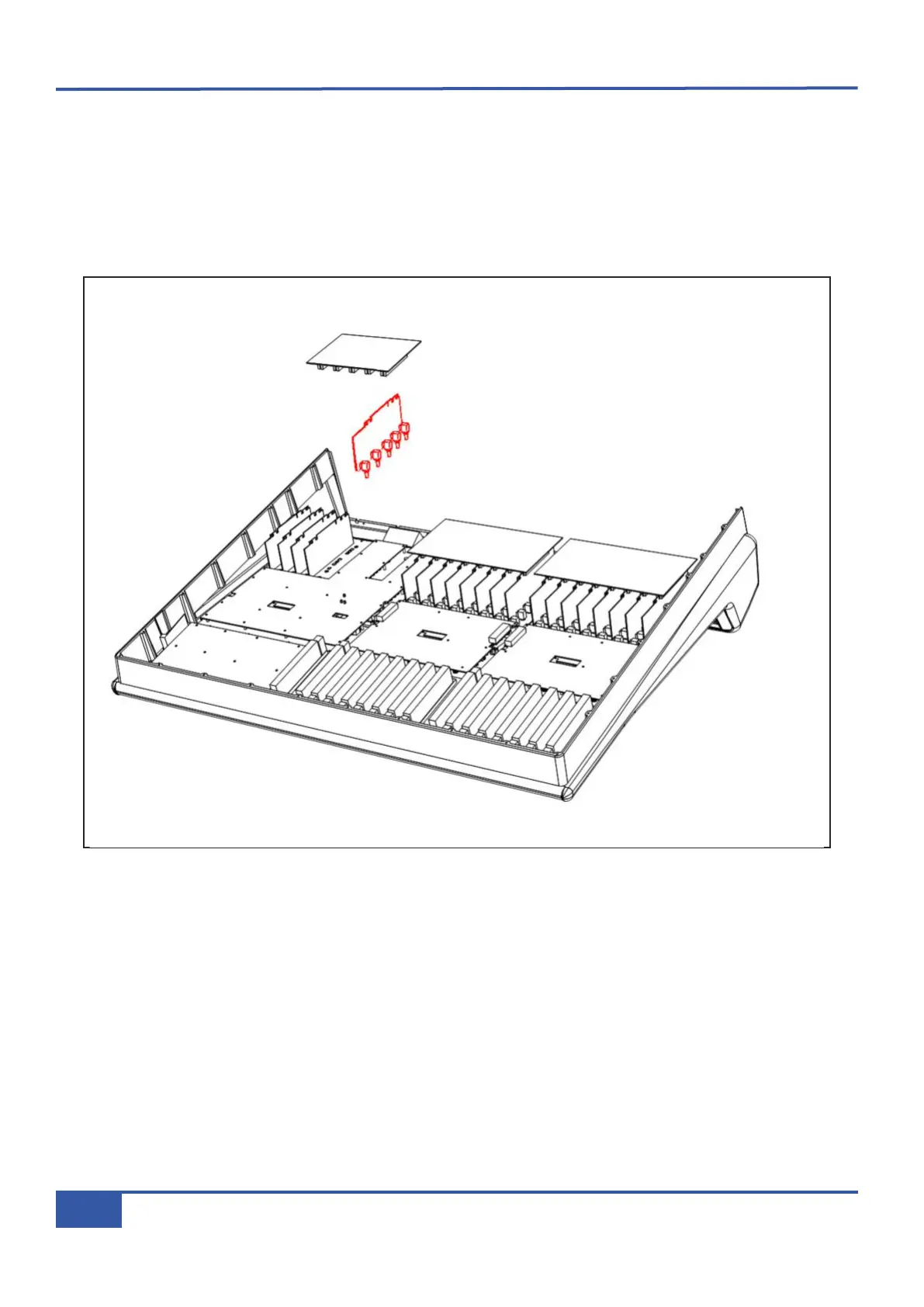

• Remove the knob caps and retaining collar from the channel module to be replaced.
• Follow instruction #1 for the removal of the base plate, unscrew and slide the rear panel backwards to gain access to
buscards.
•
Follow the instruction for the removal of 629511X1 centre buscard.
• The faulty module will be attached to the buscard, fit the replacement assembly to the buscard and reassemble.
Appendix G - Service
132
Matrix Owner’s Manual
