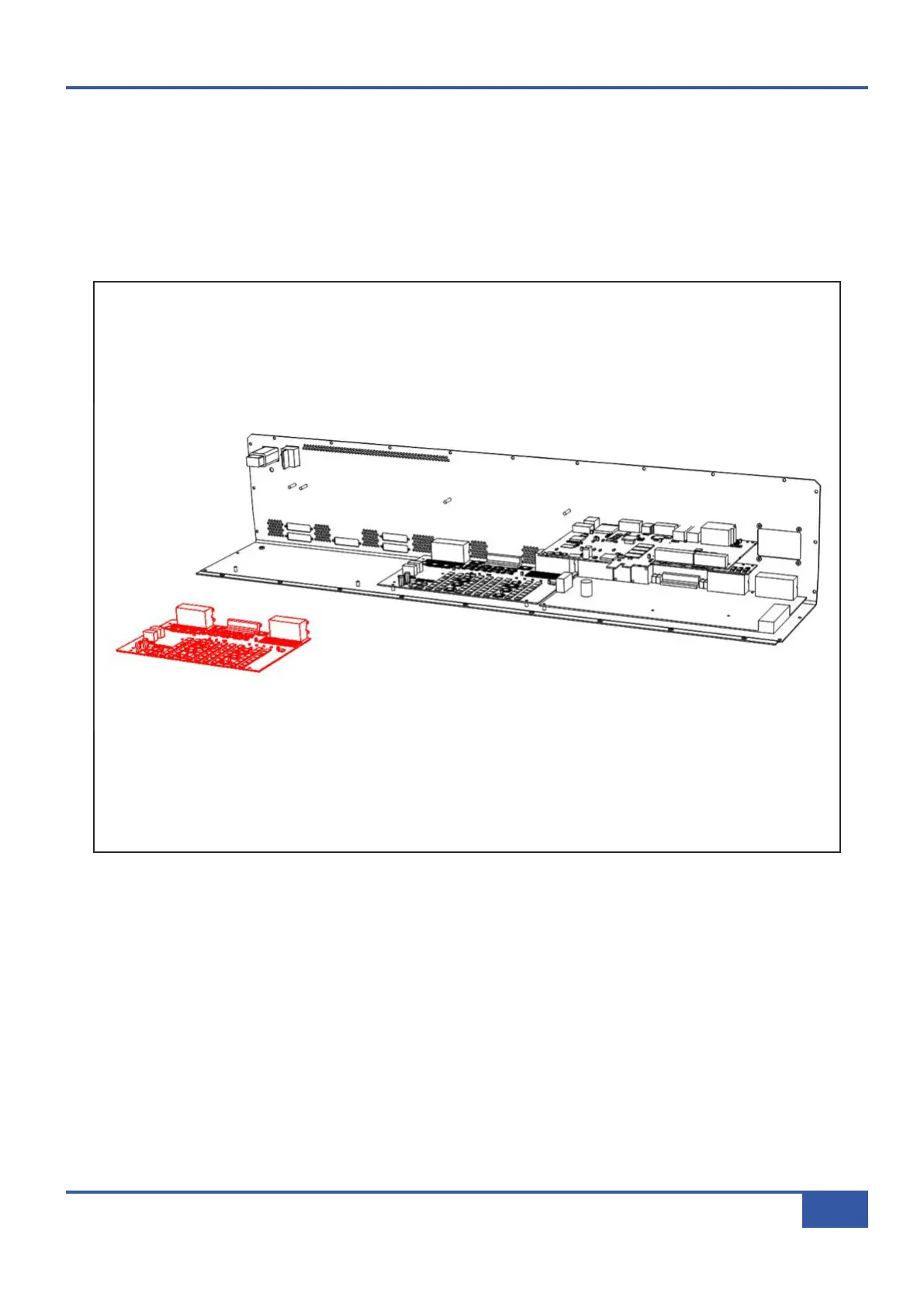

• Follow instruction #2 for removal of the rear connector panel.
• Remove the connecting looms.
• Using a #1 Pozi-drive screwdriver, remove two fixing screws.
• Remove the retaining nuts from each of the boards D type connectors using a 5.5mm nut spinner.
• Lift the assembly clear.
