1
1
6
6
-
-
6
6
2
2
9
9
5
5
0
0
5
5
X
X
A
A
C
C
P
P
U
U
R
R
e
e
p
p
l
l
a
a
c
c
e
e
m
m
e
e
n
n
t
t

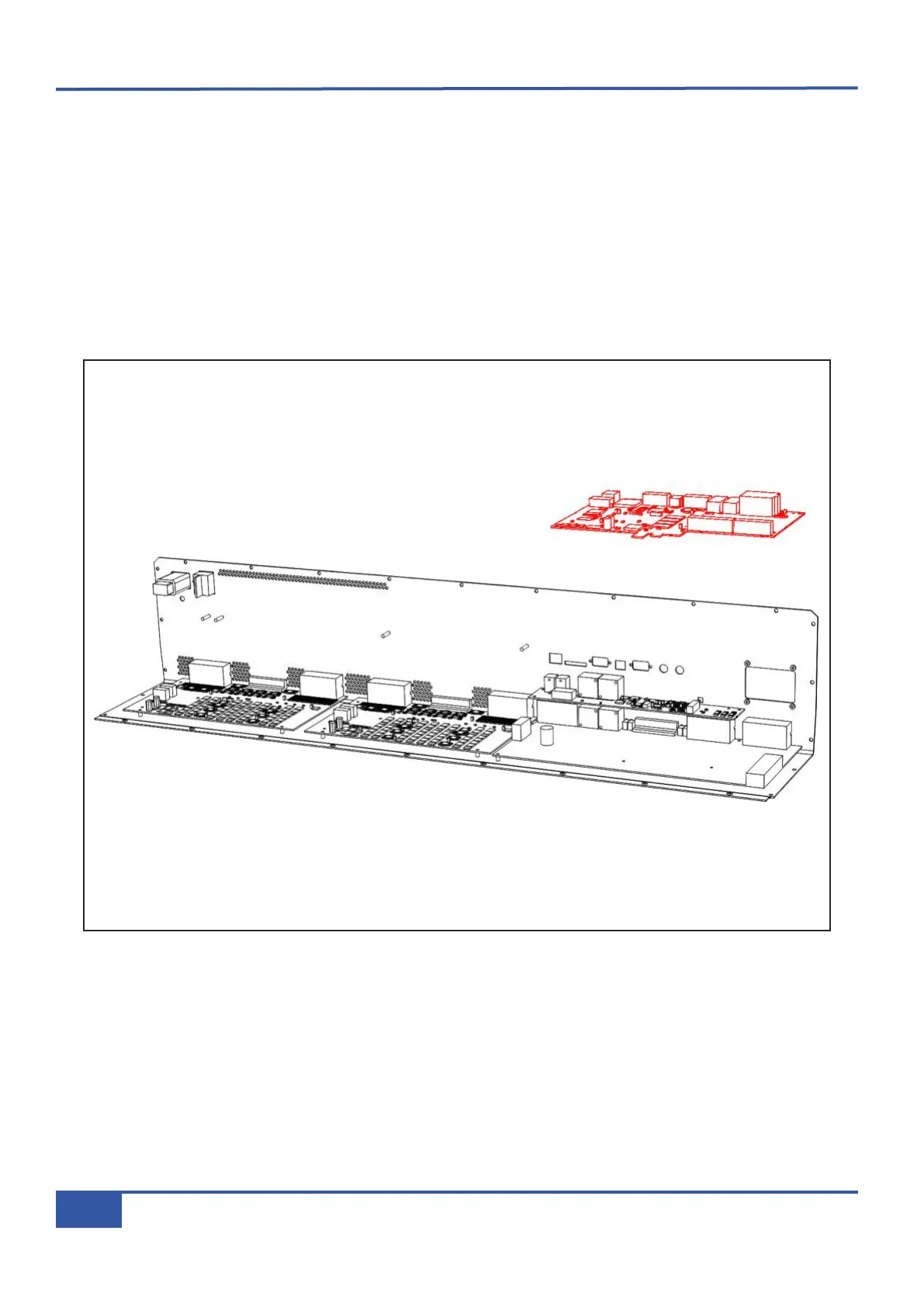

• Remove the SD memory card from the console.
• Follow instruction #2 for removal of the rear connector panel.
• Remove the 9-way D-type retaining nuts from the GPIO and XRACK/DIAG connectors on the rear panel.
• Remove all looms connected to the 629505XA assembly.
• Remove four pan Pozi screws.
•
Lift the assembly clear of the console.
• Fit the replacement card and reassemble.
• Refit the SD memory card.
Appendix G - Service
134
Matrix Owner’s Manual
