Stihl MS 200 Service Manual

99MS 200, MS 200 T

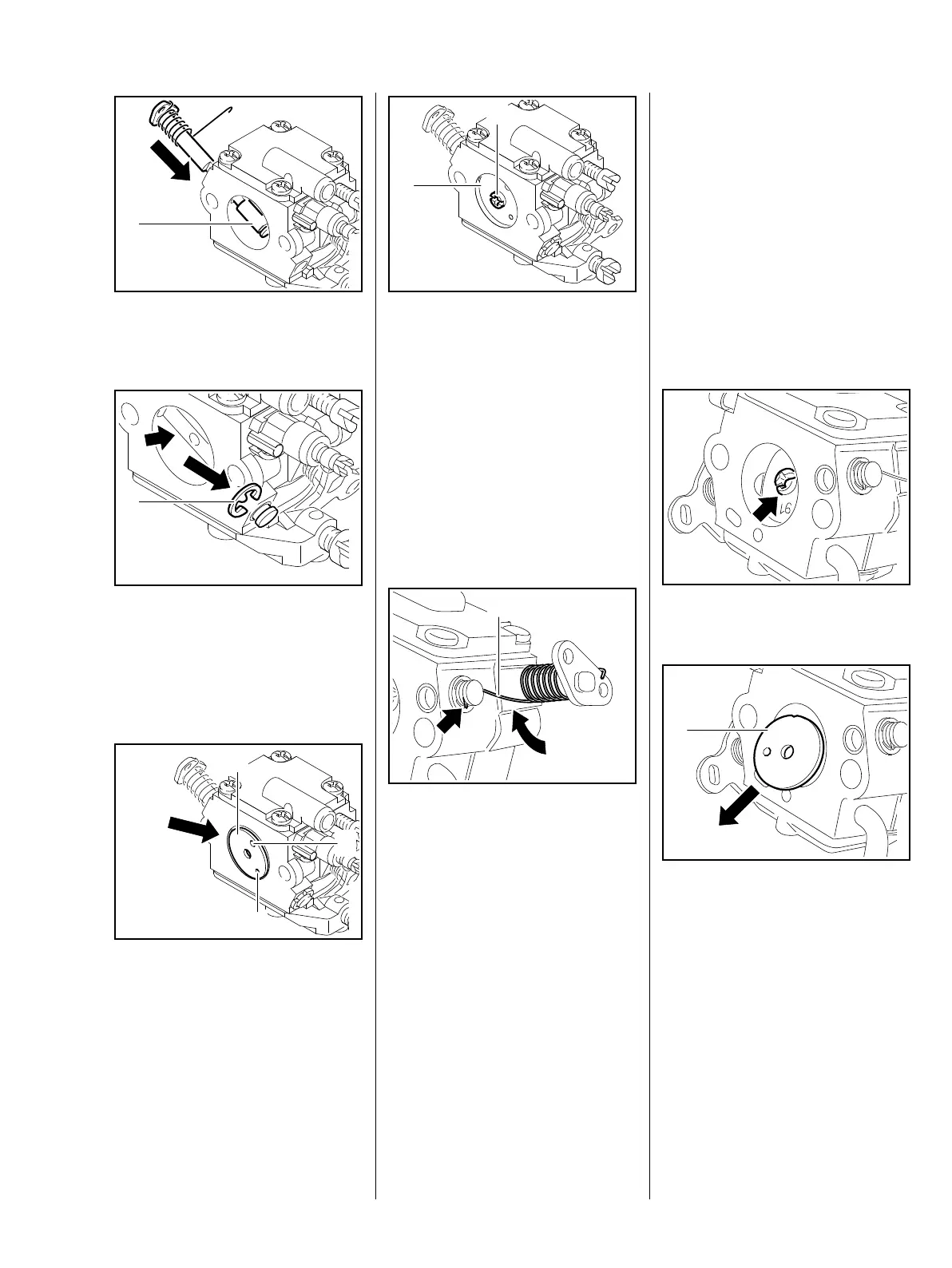

: Push the choke shaft (1) into the
carburetor.
: Fit the E-clip (1) and let go of the
choke shaft.
– Turn the choke shaft (arrow) until
its flat side faces forwards.
: Position the choke shutter (1) in
the carburetor bore so that the
hole (2) is on the right and the
hole (3) is at the top.
161RA325 TG
1
161RA427 TG
1
161RA336 TG
1
3
2
– Coat screw with threadlocking
adhesive,
b 16
: Fit new screw (1) and tighten it
moderately.
– Close the choke shutter (2) and
center it in the carburetor body’s
bore.
– Tighten down the screw (1) firmly.
: Turn leg (1) of spring about one
turn clockwise and attach it to the
throttle shaft (arrow).
– Check freedom of movement.
– Reassemble all other parts in the
reverse sequence.
161RA337 TG
2
1
161RA399 TG
1
14.4.5 Throttle Shaft / Throttle
Shutter
Throttle shaft stiff or throttle shutter
cannot be closed or opened
properly:
– Remove the carburetor,
MS 200 b 14.2,
MS 200 T b 14.2.1
– Carburetor troubleshooting,
b 4.6
: Take out the screw (arrow).
: Turn the throttle shaft a little and
pull out the throttle shutter (1).
161RA338 TG161RA339 TG
1

Stihl MS 200 Specifications

General

Guide Bar Length	30-40 cm
Chain Oil Capacity	0.22 L
Chain pitch	3/8"
Engine Power	2.0 kW
Displacement	35.2 cc
Weight (without cutting equipment)	4.2 kg
