Stihl MS 200 Service Manual

72 MS 200, MS 200 T

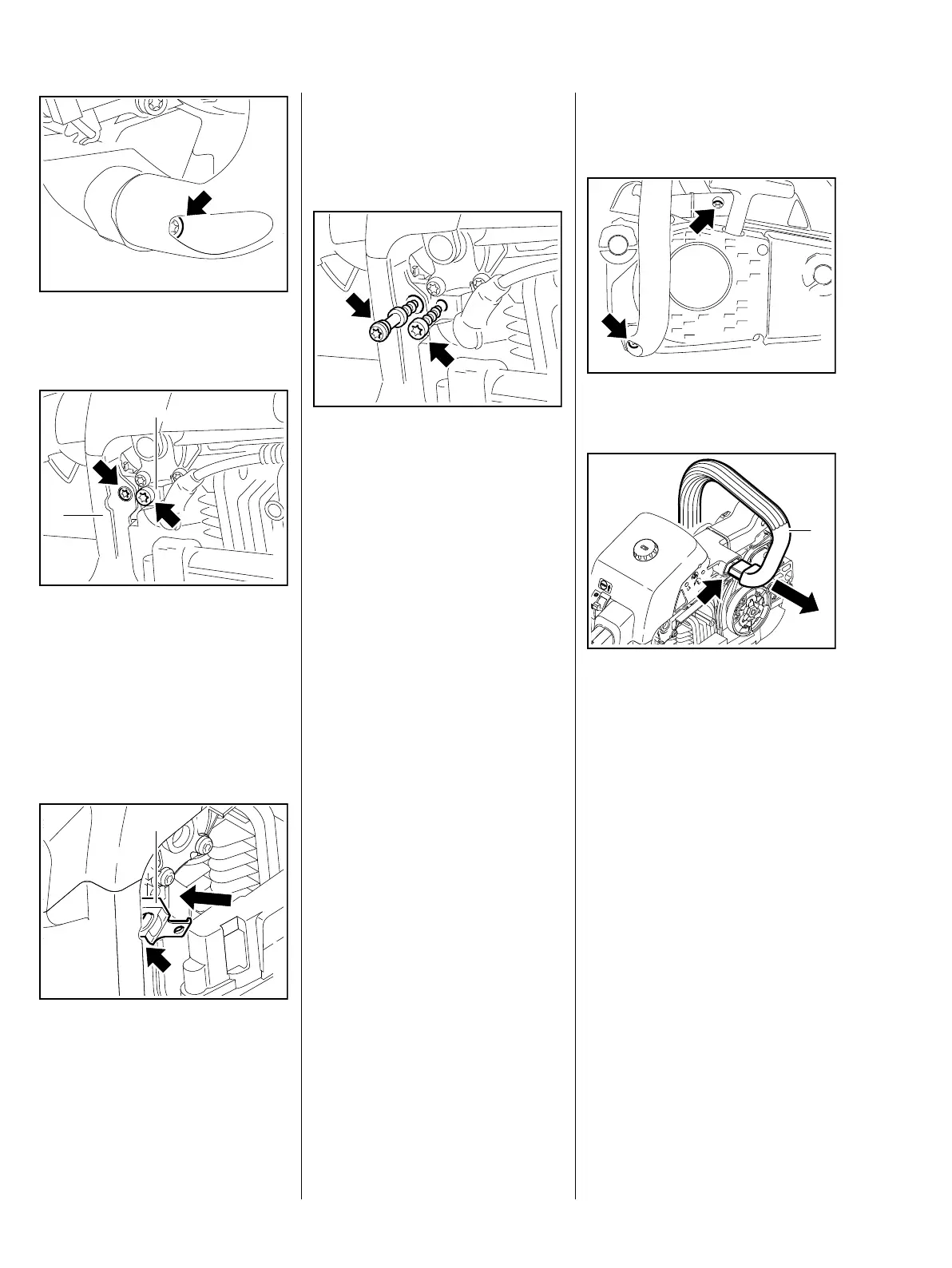

: Remove screw (arrow) from
handlebar.
: Take out the screws (arrows).
– Ease the handle housing (1)
sideways and pull out the stop
buffer (1).
– Check the stop buffer and
replace if necessary.
– Line up the stop buffer (1) so that
its tab engages the tank housing.
161RA167 TG
1
161RA239 TG
2
161RA240 TG
1
: Push the stop buffer (1) between
the handle and tank housings
(arrow) until it locates in its seat in
the handle housing.
: Insert screws (arrows) and
tighten them down firmly.
– Fit the screws in the annular
buffers on the oil and fuel tanks
and the handlebar and tighten
them down firmly.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5
161RA241 TG
11.5 Handlebar
MS 200
: Take out the screws (arrows).
: Ease the handlebar (1) past the
annular buffer and pull it out of
the handle housing (arrow).
– Check the handlebar and replace
if necessary
– Reassemble in the reverse
sequence.
161RA242 TG161RA243 TG
1

Stihl MS 200 Specifications

General

Guide Bar Length	30-40 cm
Chain Oil Capacity	0.22 L
Chain pitch	3/8"
Engine Power	2.0 kW
Displacement	35.2 cc
Weight (without cutting equipment)	4.2 kg
