Stihl MS 200 Service Manual

74 MS 200, MS 200 T

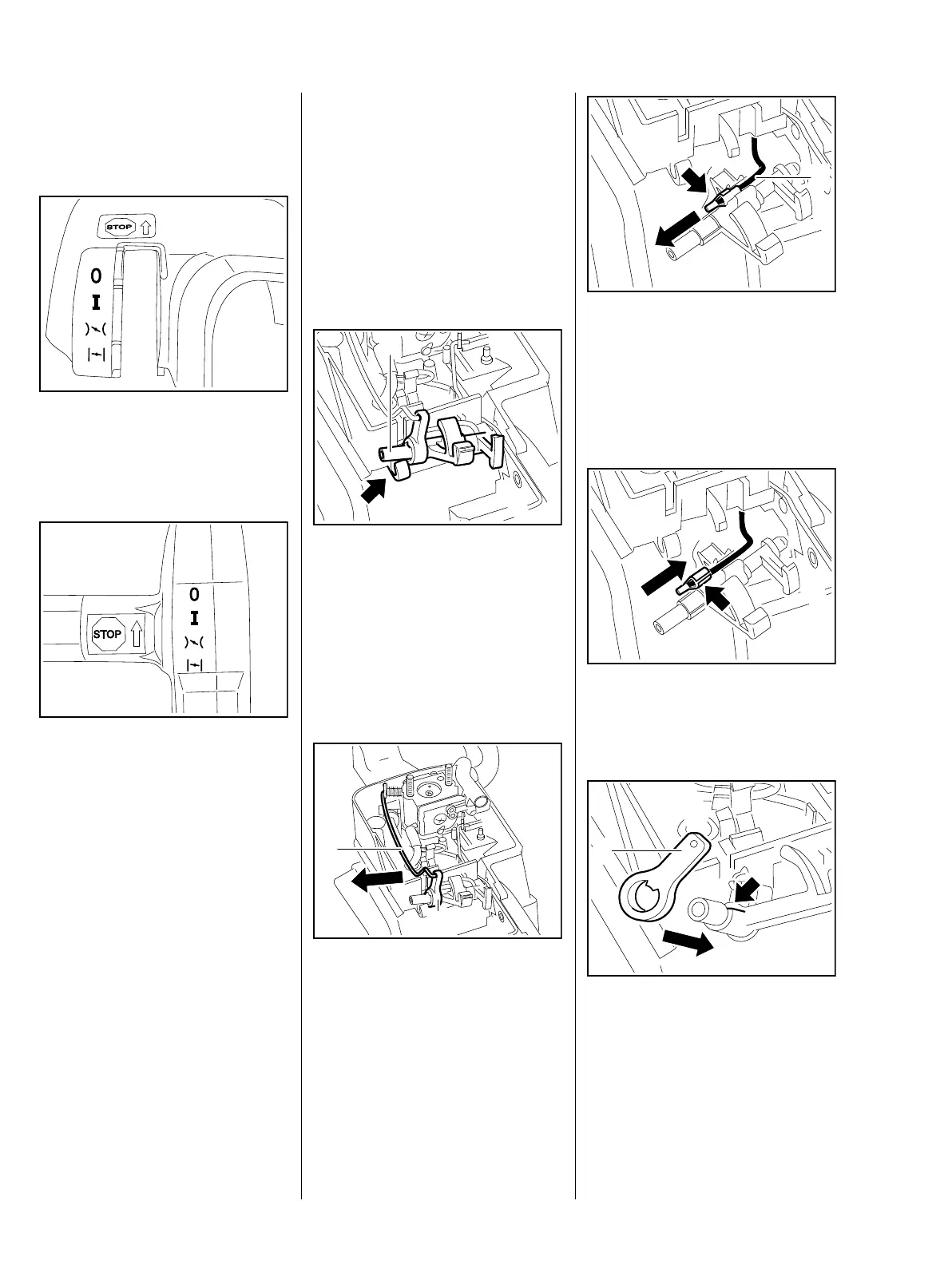

12. Master Control Lever
12.1 Switch Shaft / Control
Lever
MS 200
The following positions can be
selected with the switch shaft:
MS 200 T
The following positions can be
selected with the control lever:
– Position
0 = engine off
– ignition is switched off
– Position F = normal run position
– engine runs or may start in this
position
To move the switch shaft from F to
k or l depress the interlock lever
and throttle trigger at the same time.
– Position k = warm start
– warm engine is started in this
position
161RA244 TG162RA009 TG
The switch shaft returns to the run
position when the throttle trigger is
operated.
– Position k = cold start
– cold engine is started in this
position
12.1.1 Removing and Installing
(MS 200)
– Remove the air filter, b 14.1
– Remove the handle molding,
throttle trigger and interlock lever,
b 12.2
: Pry the switch shaft (1) out of its
mount (arrow).
: Lift the switch shaft a little and
disconnect the choke rod (1) from
the choke lever (2).
– Pull the switch shaft out of the
right-hand mount.
161RA245 TG
1
1
2
161RA232 TG
: Push terminal sleeve (arrow) of
short circuit wire (1) out of the
switch shaft.
– Check the switch shaft and choke
lever and replace if necessary.
: Position the short circuit wire in
its seat and fit the terminal sleeve
(arrow) as far as stop.
: Push the choke lever (1) on to the
switch shaft so that the lug
engages the slot (arrow).
1
161RA233 TG161RA234 TG
1
161RA420 TG

Stihl MS 200 Specifications

General

Guide Bar Length	30-40 cm
Chain Oil Capacity	0.22 L
Chain pitch	3/8"
Engine Power	2.0 kW
Displacement	35.2 cc
Weight (without cutting equipment)	4.2 kg
