Stihl MS 200 Service Manual

55MS 200, MS 200 T
MS 200

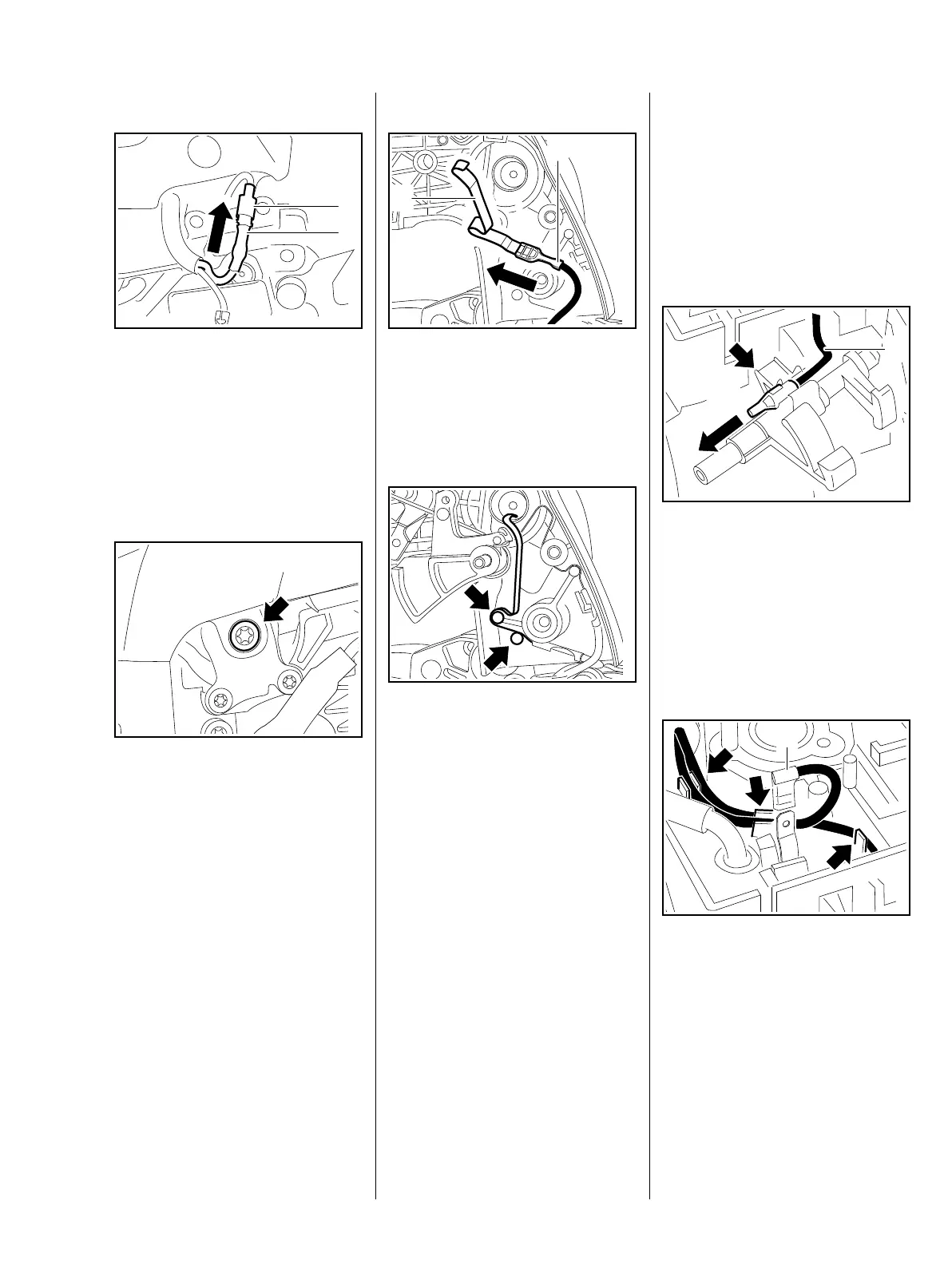

: Connect the wiring harness (1) to
the short circuit wire (2).
– Push the wiring harness into the
handle housing – wiring harness
must locate in the guide on the
underside of the handle housing
b 9.5.4
– Mount the annular buffer on the
oil tank and fit the ground wire,
b 11.2
– do not pinch the wires.
– Insert screw in handlebar and
tighten it down firmly.
: Insert screw (arrow) and tighten it
down firmly.
161RA179 TG
1
2
161RA163 TG
MS 200 T
– Check the contact spring (1) and
replace if necessary
: Push short circuit wire connector
(2) on to contact spring (1).
: Push the contact spring with
short circuit wire into the guides
(arrows).
– Mount the annular buffer on the
oil tank and fit the ground wire,
b 11.2.1
– do not pinch the wires.
– Install the switch shaft, b 12.1.2
– Fit the handle molding, b 12.3
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5
162RA003 TG
1
2
162RA004 TG
9.5.4 Removing and Installing
the Wiring Harness
(MS 200)
The short circuit and ground wires
are combined in a wiring harness. If
either wire is damaged, the
complete wiring harness must be
replaced
– Remove the handle housing,
b 12.4
– Remove the switch shaft and pull
off the choke lever, b 12.1.1
: Push the short circuit wire (1) out
of the switch shaft (arrow).
– Disconnect the ground wire (1)
from the contact spring.
: Pull the wires out of the guides
(arrows).
161RA182 TG
1
161RA183 TG
1

Stihl MS 200 Specifications

General

Guide Bar Length	30-40 cm
Chain Oil Capacity	0.22 L
Chain pitch	3/8"
Engine Power	2.0 kW
Displacement	35.2 cc
Weight (without cutting equipment)	4.2 kg
