Stihl MS 200 Service Manual

62 MS 200, MS 200 T
10. Rewind Starter
10.1 General
If the action of the starter rope
becomes very stiff and the rope
rewinds very slowly or not
completely, it can be assumed that
the starter mechanism is in order
but plugged with dirt. At very low
outside temperatures the lubricating
oil on the rewind spring may thicken
and cause the spring windings to
stick together. This has a
detrimental effect on the function of
the starter mechanism.
In such a case it is sufficient to apply
a few drops of a standard solvent-
based degreasant (containing no
chlorinated or halogenated
hydrocarbons) to the rewind spring.
Carefully pull out the starter rope
several times and allow it to rewind
until its normal smooth action is
restored.
Before installing, lubricate the
rewind spring and starter post with
STIHL special lubricant.
If clogged with dirt or pitch, the
entire starter mechanism, including
the rewind spring, must be removed
and disassembled. Take particular
care when removing the spring.
– Clean all components.

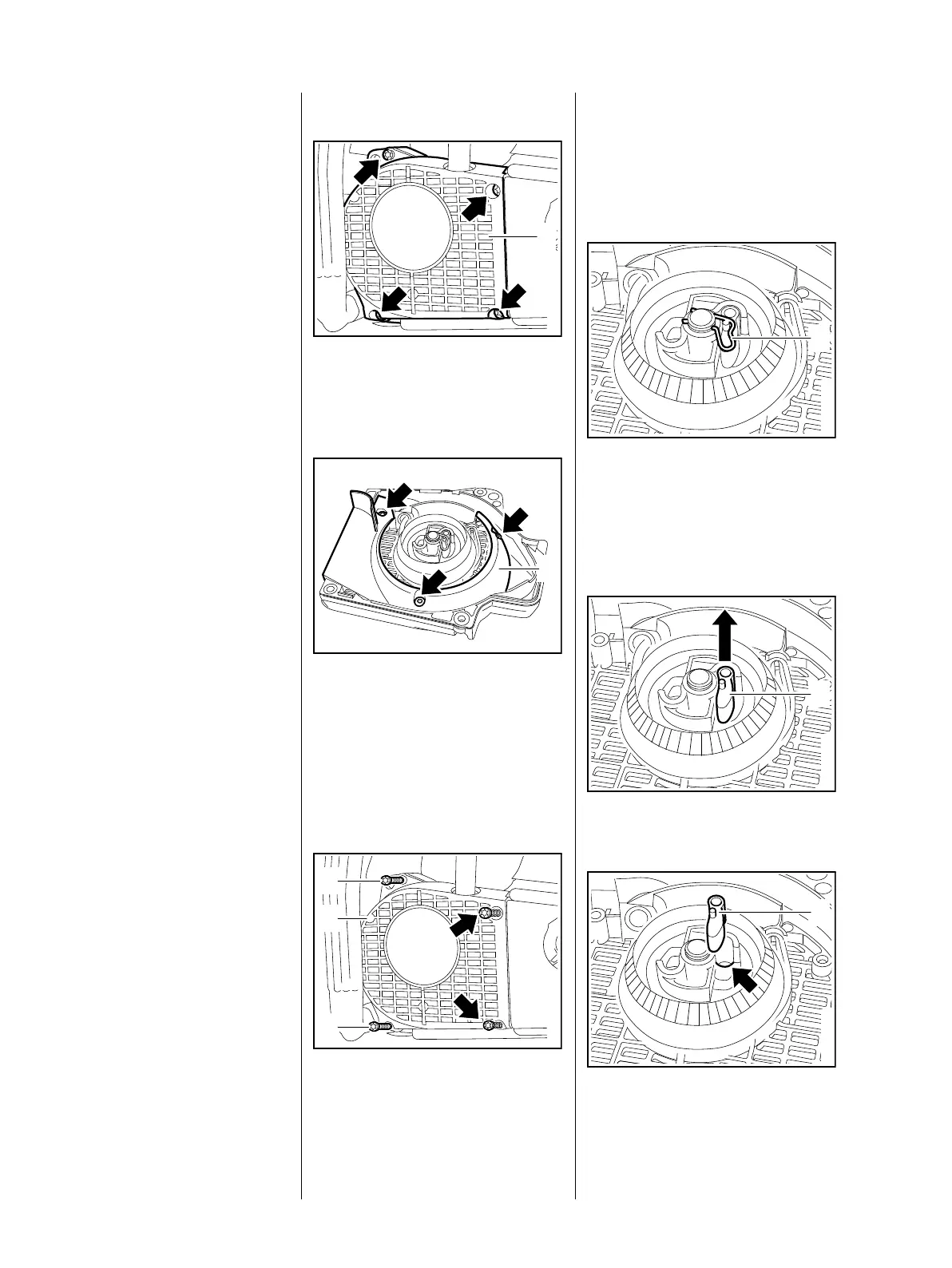

10.2 Removing and Installing
: Take out the screws (arrows).
– Remove the fan housing (1).
: Take out the screws (arrows).
– Remove the segment (1), check
and replace if necessary.
– Reassemble in the reverse
sequence.
– Place the fan housing (1) in
position.
: Fit the metric screws (2) and
Plastoform screws (arrows).
161RA198 TG
1
1
161RA199 TG161RA200 TG
1
2
2
– Tighten down the screws firmly.
– Tightening torques, b 3.5
10.3 Pawl
– Remove the fan housing,
b 10.2
: Carefully ease the spring clip (1)
off the starter post.
: Remove the pawl (1).
– Fit the new pawl in the bore
(arrow) and lubricate its peg (1),
b 16
161RA201 TG
1
161RA202 TG
1
161RA203 TG
1
