23MS 200, MS 200 T

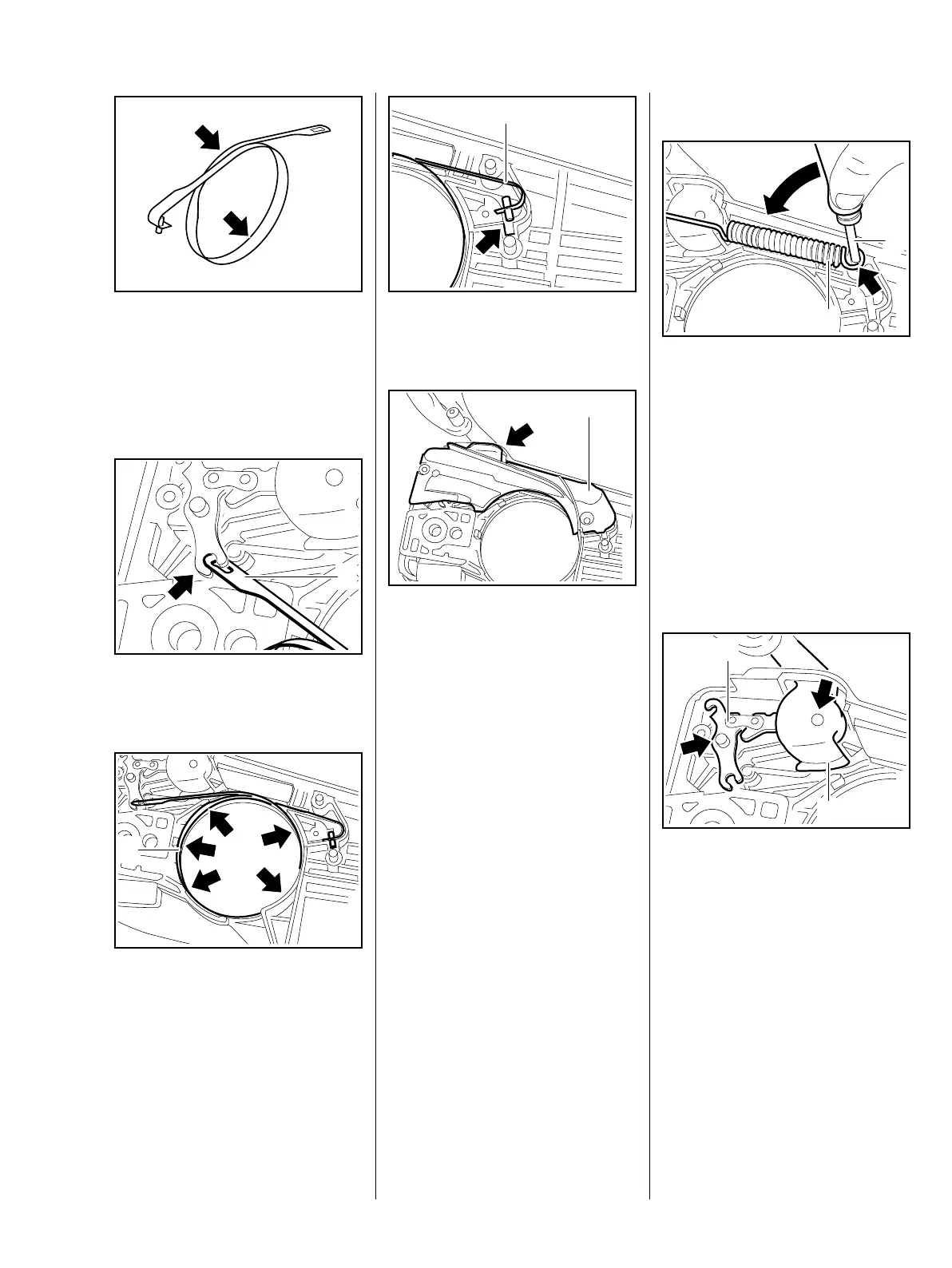

Install a new brake band if there are
noticeable signs of wear (large
areas on inside diameter and/or
parts of outside diameter – arrows)
and its remaining thickness is less
than 0.6 mm.
: Attach the brake band (1) to the
brake lever (arrow).
: Push the brake band (1) into its
guides (arrows).
161RA028 TG161RA029 TG
1
161RA030 TG
1
: Push the brake band (1) into its
seat (arrow) as far as stop.
: Push cover (1) into its seat until it
snaps into position (arrow).
– Insert screws and tighten them
down firmly.
– Tightening torques, b 3.5
– Reassemble all other parts in the
reverse sequence.
– Check operation.
161RA031 TG
1
161RA032 TG
1
7.3 Brake Lever
– Troubleshooting, b 4.2
– Remove the brake band, b 7.2
: Use the assembly tool (2)
1117 890 0900 to disconnect the
brake spring (1) from the anchor
pin (arrow) – the spring may pop
out during this operation.
– Disconnect the brake spring from
the brake lever.
: Pull the hand guard (1) and brake
lever (2) off the pivot pins
(arrows) together.
161RA033 TG
1
2
161RA034 TG
1
2
