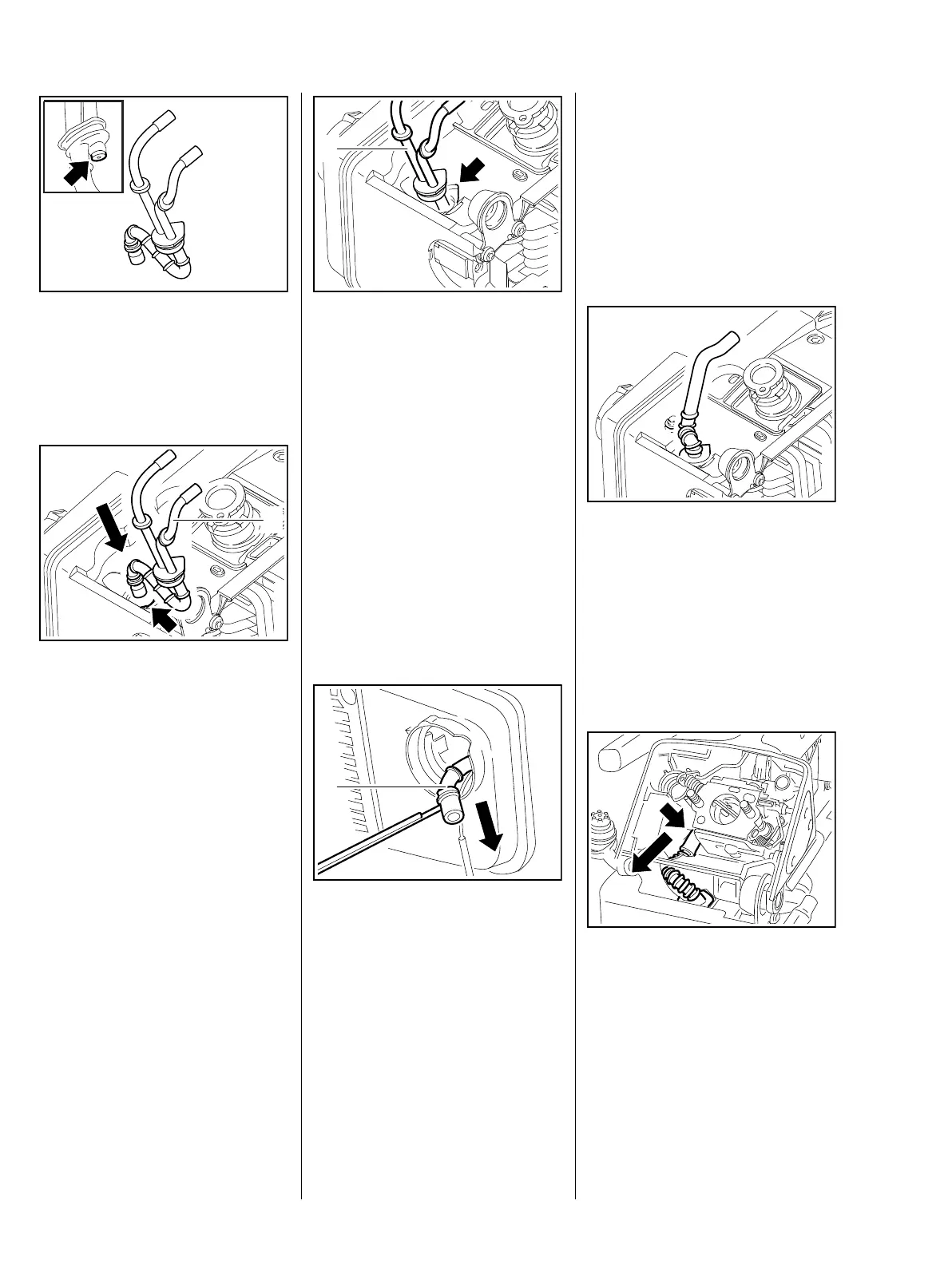

Stihl MS 200 - Fuel Hose (MS 200) Version with Multi-Part Tank Vent System; Fuel Hose (MS 200 T) Version with One-Part Tank Vent System; Fuel Hose (MS 200 T); The Tank Housing

110 MS 200, MS 200 T
: Check the fuel hose and replace
if necessary.
Stub (arrow) must be fitted in the
fuel hose.
: Push the fuel hose (1) through
the hole (arrow) in the fuel tank.
161RA377 TG161RA378 TG
1
: Line up the fuel hose (1) – the
flange must match the contour of
the hole (arrow).
– Coat the grommet on the fuel
hose with STIHL Press Fluid,
b 16
– Push the fuel hose into the hole
until the rubber lip is properly
seated.
– Install the handle housing,
b 12.4
– Reassemble all other parts in the
reverse sequence.
: Use hook 5910 893 8800 to
remove the fuel hose (1) from the
fuel tank.
Do not overstretch the fuel hose.
– Fit the pickup body, b 14.7.1
– Close the tank cap.
161RA379 TG
1
161RA380 TG
1
14.7.3 Fuel hose
(MS 200)
Version with multi-part
tank vent system
In the previous tank vent system the
tank vent is fitted separately in the
tank housing. A single fuel hose is
used.
The procedure for removing and
installing the fuel hose is the same
as for the new tank vent system,
b 14.7.2
14.7.4 Fuel hose
(MS 200 T)
Version with one-part
tank vent system
– Remove the pickup body,
b 14.7.1
– Remove the chain sprocket
cover, bar and chain, b 5
– Remove the tank vent, b 14.6.4
: Disconnect the fuel hose (arrow).
