49MS 200, MS 200 T

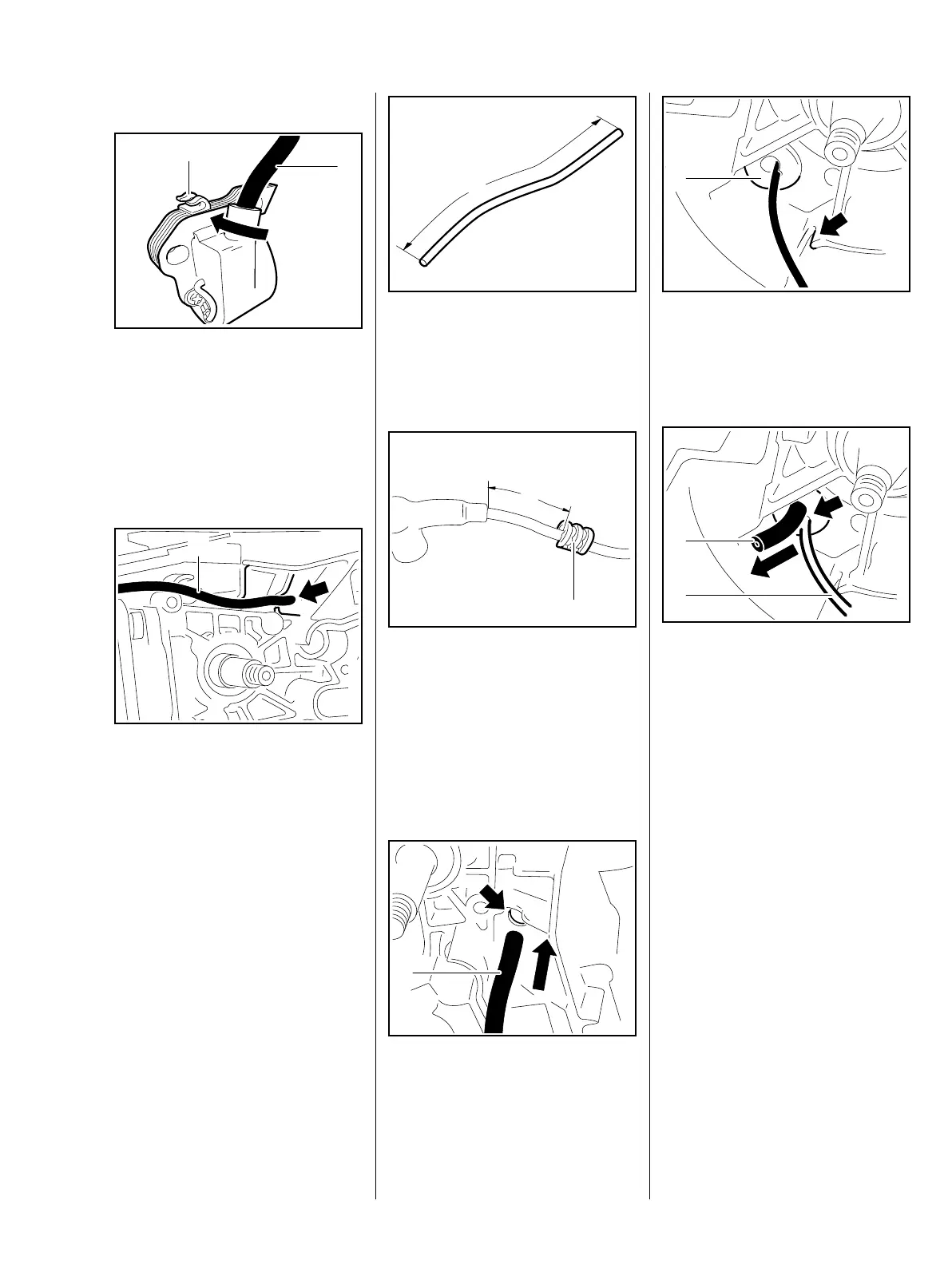

Ignition Lead
– Remove the flywheel, b 9.4
– Remove the ignition module,
b 9.2.1
: Unscrew the ignition module (1)
from the ignition lead (2).
– Pull the boot off the spark plug.
– Remove the oil pump, b 13.4
: Take the ignition lead (1) out of
the guides.
– Coat the ignition lead with STIHL
Press Fluid and pull it slowly out
of the bore (arrow) – the grommet
may slip into the crankcase,
b 16
– Check ignition lead and replace if
necessary
161RA148 TG
1
2
161RA149 TG
1
: Cut new ignition lead to a length
of 290 mm (a).
– Fit the spark plug boot.
– Pull the cable retainer (1) off the
ignition lead, or replace if
necessary.
: Fit the cable retainer (1) on the
ignition lead at a distance of
about 3.8 cm (a) from the spark
plug boot.
: Push the other end of the ignition
lead (1) through the hole (arrow)
in the clutch side of the
crankcase.
a
161RA150 TG
a
161RA151 TG
1
1
161RA107 TG
: Position the grommet (1) so that
the hole for the short circuit wire
points towards the cable guide
(arrow).
– Thread the short circuit wire
through the smallrt hole (arrow) in
the grommet.
– Using STIHL Press Fluid, b 16,
simplifies the job of pushing the
ignition lead (1) through the
grommet.
: Push the ignition lead (1) through
the grommet (2).
161RA123 TG
1
2
161RA415 TG
1
