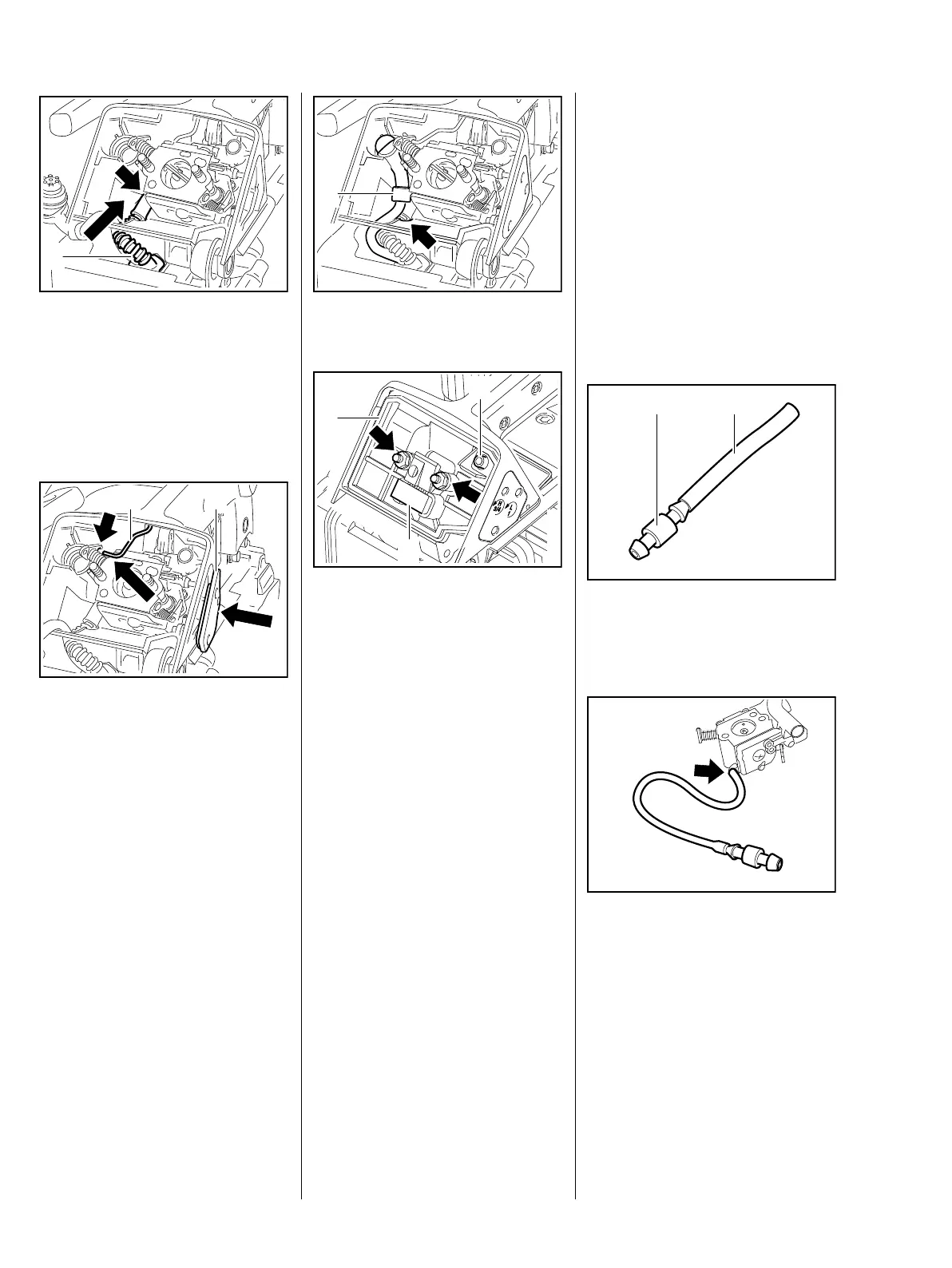

94 MS 200, MS 200 T
: Push the fuel hose (1) on to the
stub (arrow).
Choke rod must not be between the
carburetor and intake manifold.
– Push the carburetor fully home.
: Turn the choke rod (1) slightly
and attach it to the lever (arrow)
on the choke shaft.
: Push the grommet (2) into handle
housing until it is properly seated.
162RA063 TG
1
1
162RA065 TG
2
– Install the tank vent (1), b 14.6.4
– Push the filter base (1) into
position.
Stub (2) must engage bore in filter
base.
: Fit the nuts (arrows) and tighten
them down firmly.
Always use new self-locking nuts.
Make sure foam element (3) is in
place.
– Check operation.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5
162RA067 TG
1
162RA066 TG
3
1
2
14.3 Leakage Test
In the case of problems with the
carburetor or fuel supply system,
also check and clean or replace the
tank vent, b 14.6
The carburetor can be tested for
leaks with the pump 0000 850 1300.
– Remove the carburetor,
MS 200 b 14.2,
MS 200 T b 14.2.1
: Push the fuel hose (1)
1110 141 8600 on to the
nipple (2) 0000 855 9200.
: Push the fuel line with nipple onto
the carburetor’s fuel stub (arrow).
165RA336 TG
2
1
161RA304 TG
