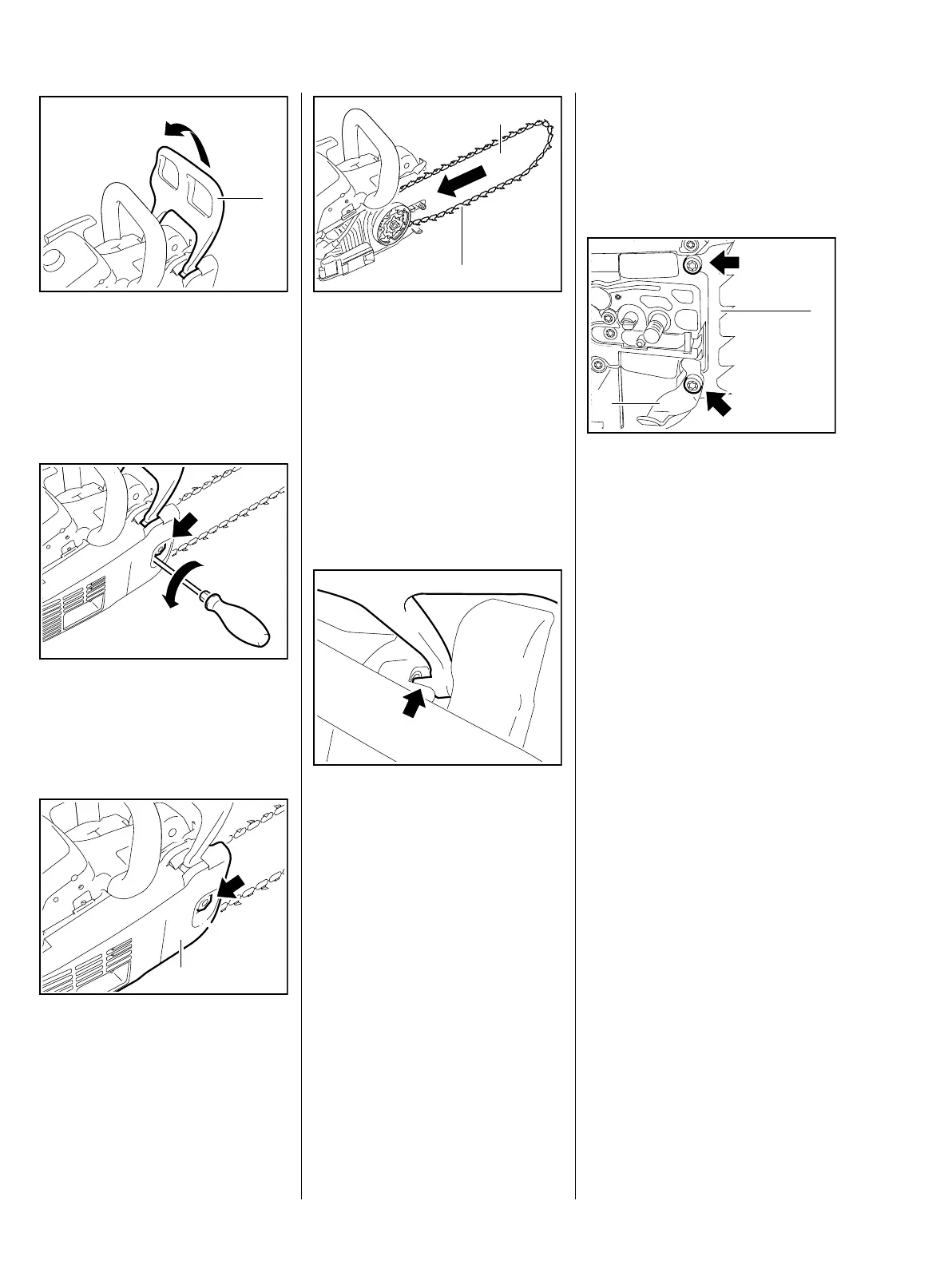

18 MS 200, MS 200 T
5. Cutting Attachment
Wear gloves to protect your hands
from injury.
: Disengage the chain brake by
pulling the hand guard (1)
towards the front handle.
: Loosen the collar nut (arrow).
: Slacken the chain by turning the
screw counterclockwise.
: Unscrew the collar nut (arrow)
and remove the chain sprocket
cover (1).
1
161RA001 TG
161RA406 TG161RA003 TG
1
: Push the guide bar (1) in the
direction of the clutch and take
the chain off the bar.
Remove the guide bar (1).
Remove the chain (2) from the
sprocket.
Reassemble in the reverse
sequence.
: Fit the chain sprocket cover.
Make sure the peg (arrow)
engages the hole.
For adjustment of chain tension
see MS 200, MS 200 T
instruction manual.
Reassemble all other parts in the
reverse sequence.
Tightening torques, b 3.5
161RA004 TG
2
1
161RA005 TG
5.1 Chain Catcher / Spiked
Bumper
Remove the chain sprocket
cover, bar and chain, b 5
: Take out the screws (arrows).
Remove the chain catcher (1)
first and then the spiked bumper
(2).
Reassemble in the reverse
sequence.
Tightening torques, b 3.5
161RA006 TG
1
2
