Stihl MS 200 - Fuel Intake; 14.7.1 Pickup Body; Fuel Hose (MS 200); Version with One-Part

109MS 200, MS 200 T

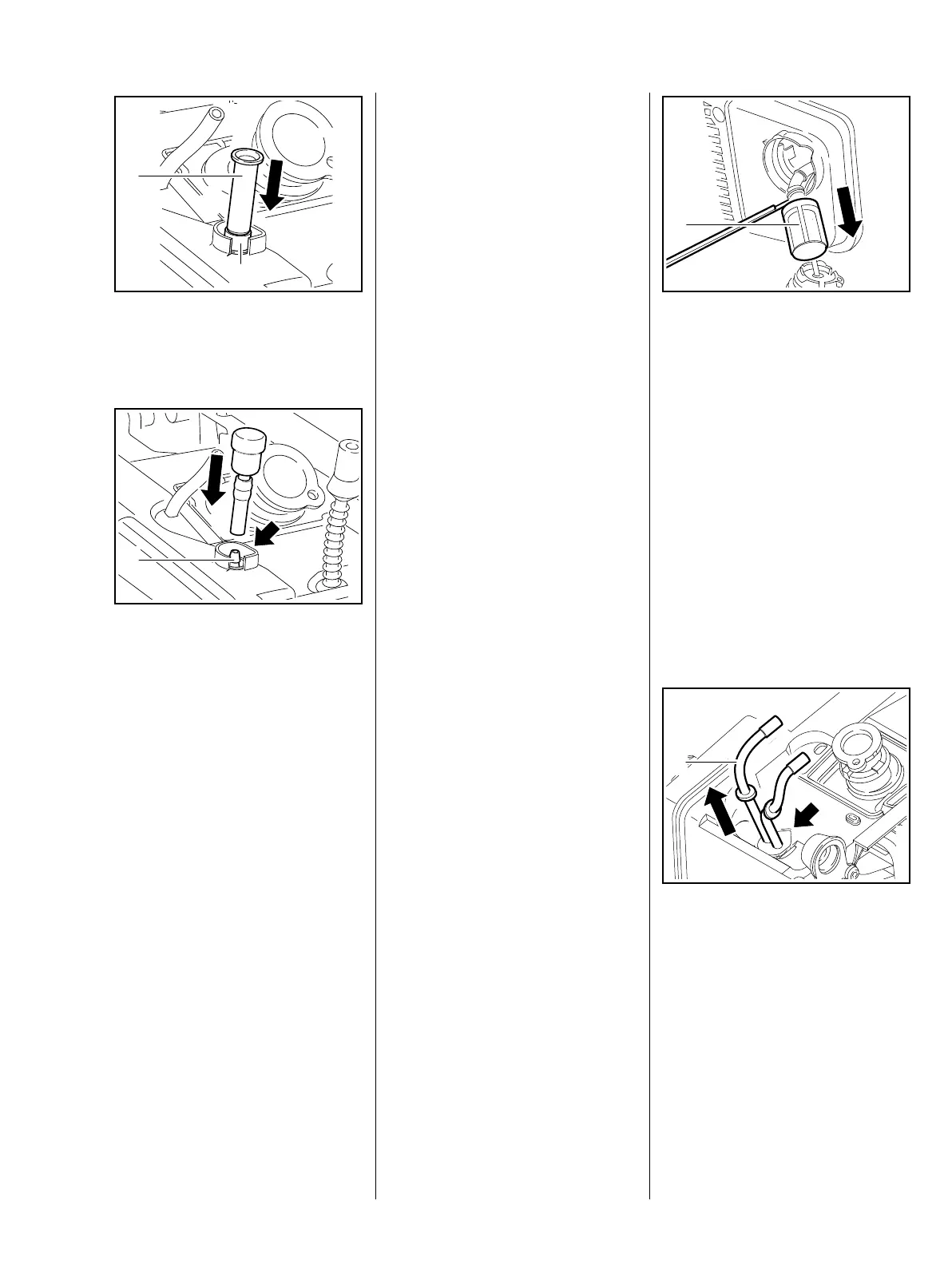

: Place the supplied installing
sleeve (1) in position and drive
home the stub (2) as far as stop.
The stub (1) must not project
beyond the collar (arrow).
: Push the tank vent with hose on
to the stub.
– Reassemble all other parts in the
reverse sequence.
162RA074 TG
1
2
162RA075 TG
1
14.7 Fuel Intake
14.7.1 Pickup Body
Any impurities mixed with the fuel
are retained by the pickup body
(filter). The fine pores of the filter
eventually become clogged with
minute particles of dirt. This restricts
the passage of fuel and results in
fuel starvation.
In the event of problems with the
fuel supply system, always check
the fuel tank and the pickup body
first.
– Troubleshooting, b 4.6 or
b 4.7
Clean the fuel tank if necessary,
– Open the tank cap and drain the
tank.
– Pour a small amount of clean
gasoline into the tank. Close the
tank and shake the saw
vigorously.
– Open the tank again and drain it.
– Dispose of fuel properly in
accordance with environmental
requirements, b 1
– Open the tank cap.
: Use hook 5910 893 8800 to
remove the pickup body (1) from
the fuel tank.
Do not overstretch the fuel hose.
– Check the pickup body (1) and
replace if necessary
– Reassemble in the reverse
sequence.
14.7.2 Fuel hose (MS 200)
Version with one-part
tank vent system
– Remove the pickup body,
b 14.7.1
– Remove the handle housing,
b 12.4
: Pry the fuel hose (1) out of its
seat (arrow).
– Pull the fuel hose (1) out of the
tank housing.
161RA375 TG
1
161RA376 TG
1
