Stihl MS 200 Service Manual

75MS 200, MS 200 T

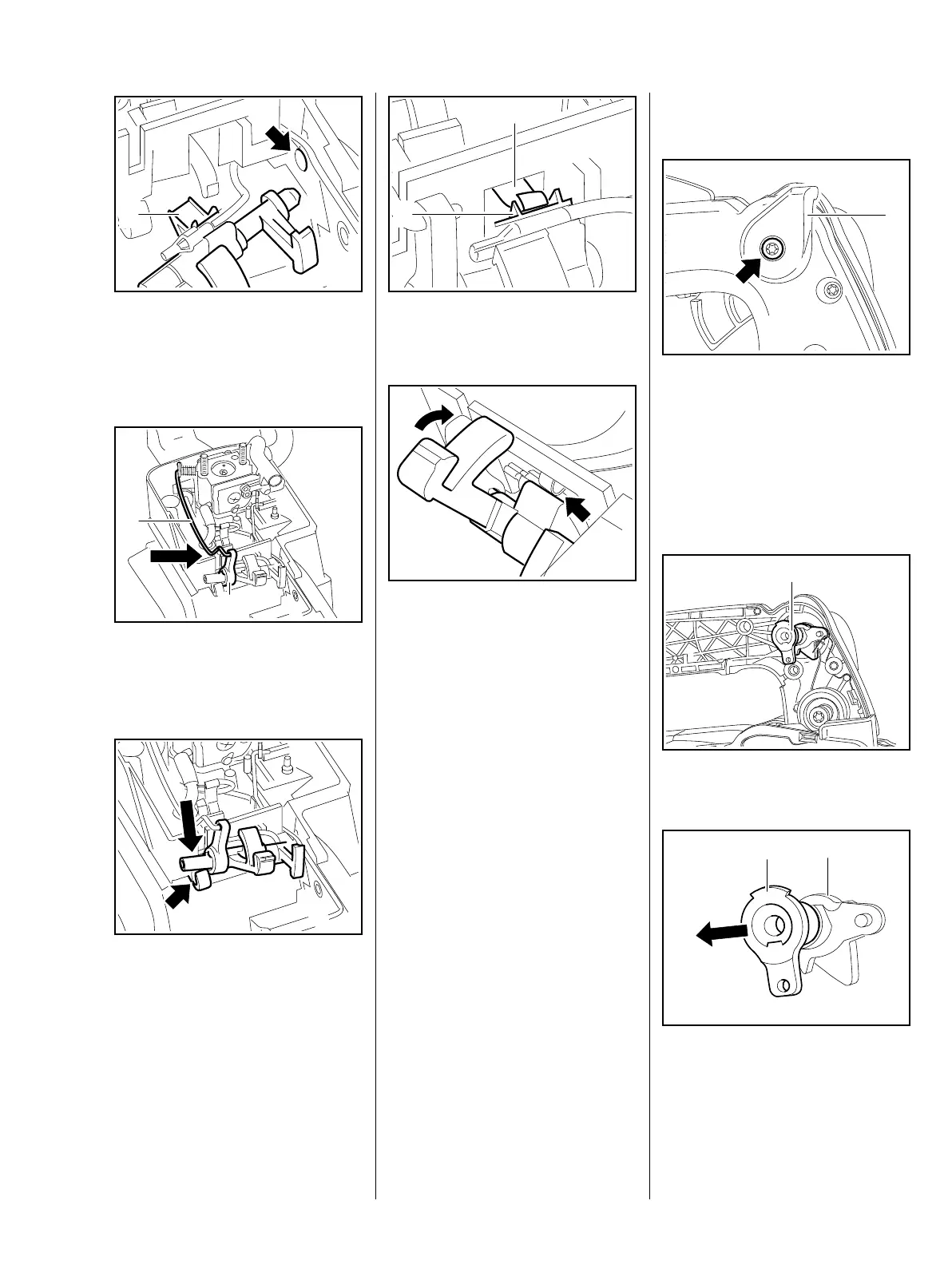

: Push the switch shaft into the
right-hand mount (arrow), making
sure the lobe (1) is under the
contact spring.
: Lift the switch shaft a little and
attach the choke rod (1) to the
choke lever (2).
: Press the switch shaft into the
mount (arrow) until it snaps into
position.
1
161RA236 TG
1
2
161RA246 TG161RA247 TG
The contact spring (1) must be in
the switch shaft's (2) guide.
– Check operation.
: Move switch shaft to "
0" –
contact between the short circuit
wire and contact spring (arrow)
must be made.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5
2
1
161RA248 TG161RA249 TG
12.1.2 Removing and Installing
(MS 200 T)
: Take out the screw (arrow).
– Remove the control lever (1).
– Remove the handle molding,
throttle trigger and interlock lever,
b 12.3
: Pull out the switch shaft (1).
: Pull off the choke lever (1).
– Check the choke lever (1) and
switch shaft (2) and replace if
necessary
1
162RA015 TG
1
162RA016 TG162RA017 TG
2
1

Stihl MS 200 Specifications

General

Guide Bar Length	30-40 cm
Chain Oil Capacity	0.22 L
Chain pitch	3/8"
Engine Power	2.0 kW
Displacement	35.2 cc
Weight (without cutting equipment)	4.2 kg
