25MS 200, MS 200 T

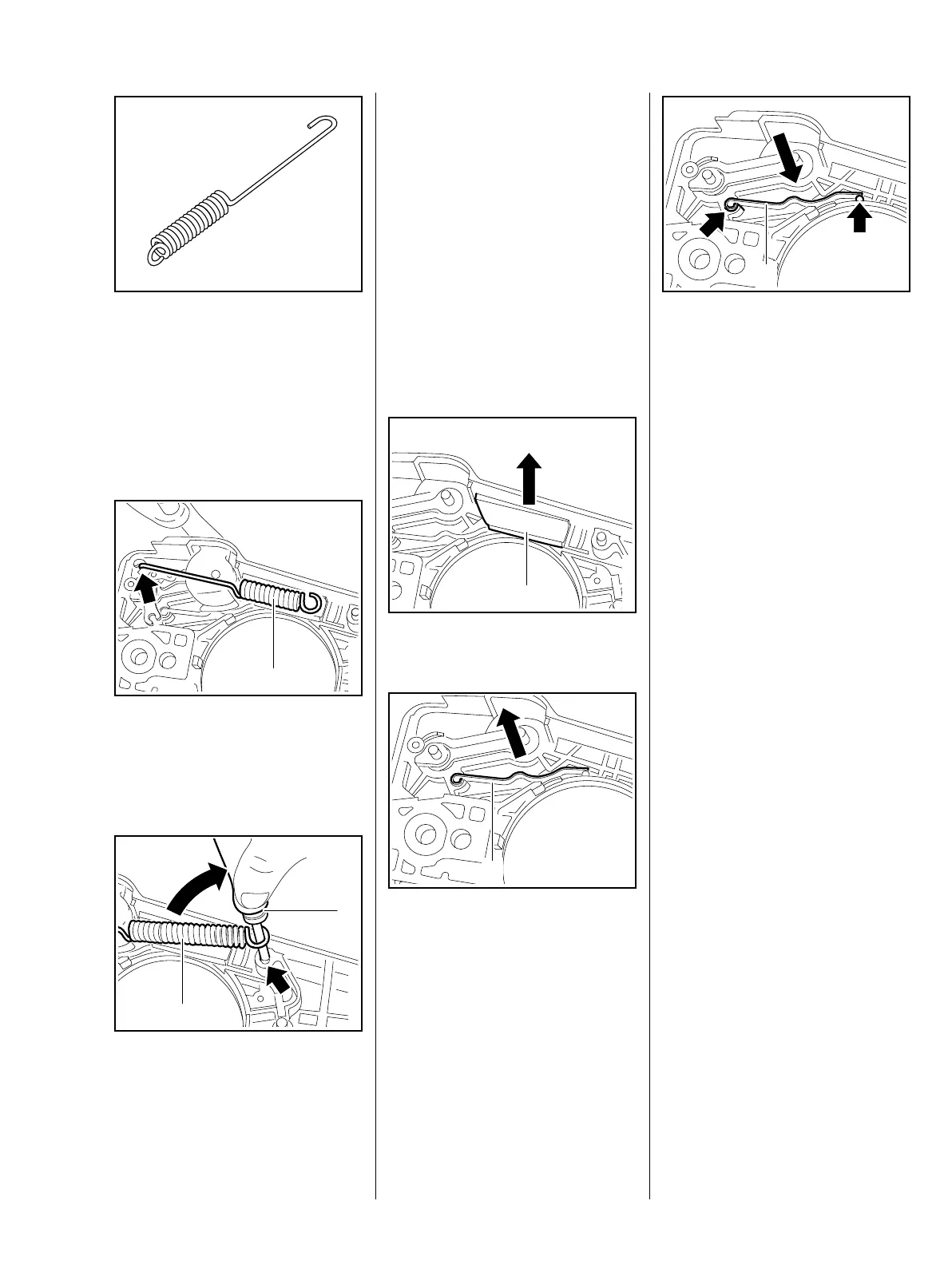

: The turns of brake spring must be
tightly against one another in the
relaxed condition. If this is not the
case, replace the brake spring.
If the groove in the brake spring
anchor pin is worn, install a new pin,
b 7.5
– The stop must be installed.
: Attach the brake spring (1) to the
brake lever (arrow).
: Use the assembly tool (2)
1117 890 0900 to attach the
brake spring (1) to the anchor pin
(arrow).
161RA040 TG161RA041 TG
1
161RA042 TG
1
2
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5
– Lubricate the brake lever, b 16
7.4 Flat Spring
The flat spring and hand guard cam
hold the hand guard in position.
– Remove the brake lever, b 7.3
: Remove the stop (1).
: Pull out the flat spring (1), check
it and replace if necessary.
161RA043 TG
1
161RA044 TG
1
: Push the flat spring (1) into the
guides (arrows).
– Lubricate the flat spring, b 16
– Install the stop.
– Reassemble all other parts in the
reverse sequence.
161RA045 TG
1
