88 MS 200, MS 200 T

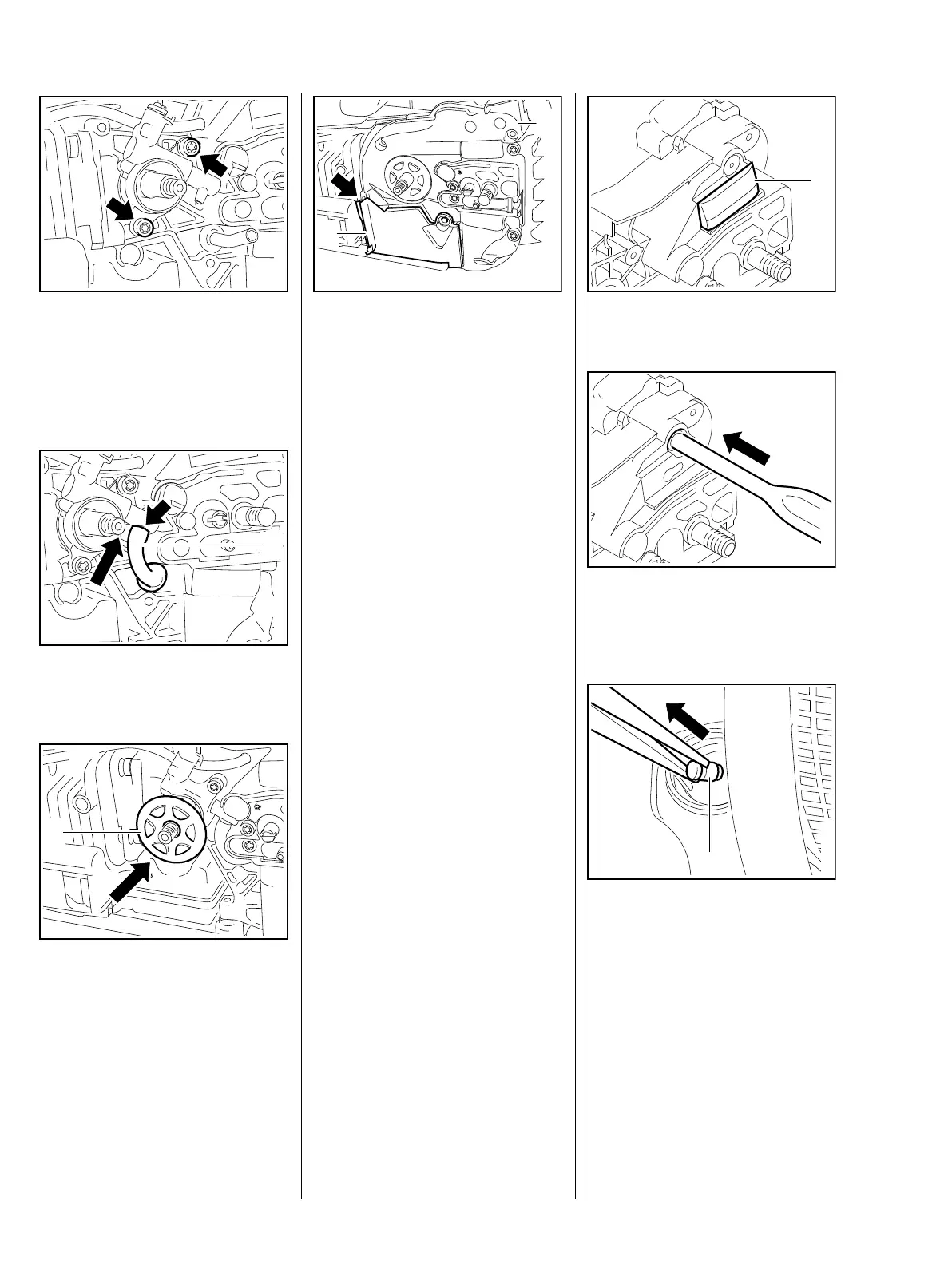

– Line up the oil pump with the
holes.
: Insert screws (arrows) and
tighten them down firmly.
: Push the oil suction hose (1) on
to the stub (arrow).
: Push the worm (1) into te oil
pump.
161RA290 TG161RA282 TG
1
161RA291 TG
1
– Place the cover (1) in position.
: Position the bottom edge of the
cover (2) first, then push lug
(arrow) into its seat in the cover
(1).
– Insert screws and tighten them
down firmly.
– Reassemble all other parts in the
reverse sequence.
– Tightening torques, b 3.5
13.5 Valve
A valve is installed in the tank wall to
keep internal tank pressure equal to
atmospheric pressure. The valve
must be replaced if it is faulty.
– Remove the chain sprocket
cover, bar and chain, b 5
– Open the oil tank cap and drain
the oil tank.
– Collect chain oil in a clean
container, b 1
– Remove the cover, b 13.4
161RA292 TG
1
2
: Pry out the bumper strip (1).
: Use a 6 mm drift to carefully
drive the valve out of its seat in
the housing and into the oil tank.
: Remove the old valve (1) from
the oil tank.
161RA293 TG
1
161RA294 TG161RA426 TG
1

Stihl MS 200 Specifications

General

Guide Bar Length	30-40 cm
Chain Oil Capacity	0.22 L
Chain pitch	3/8"
Engine Power	2.0 kW
Displacement	35.2 cc
Weight (without cutting equipment)	4.2 kg
