Stihl MS 200 - Throttle Trigger;Interlock Lever (MS 200 T)

77MS 200, MS 200 T

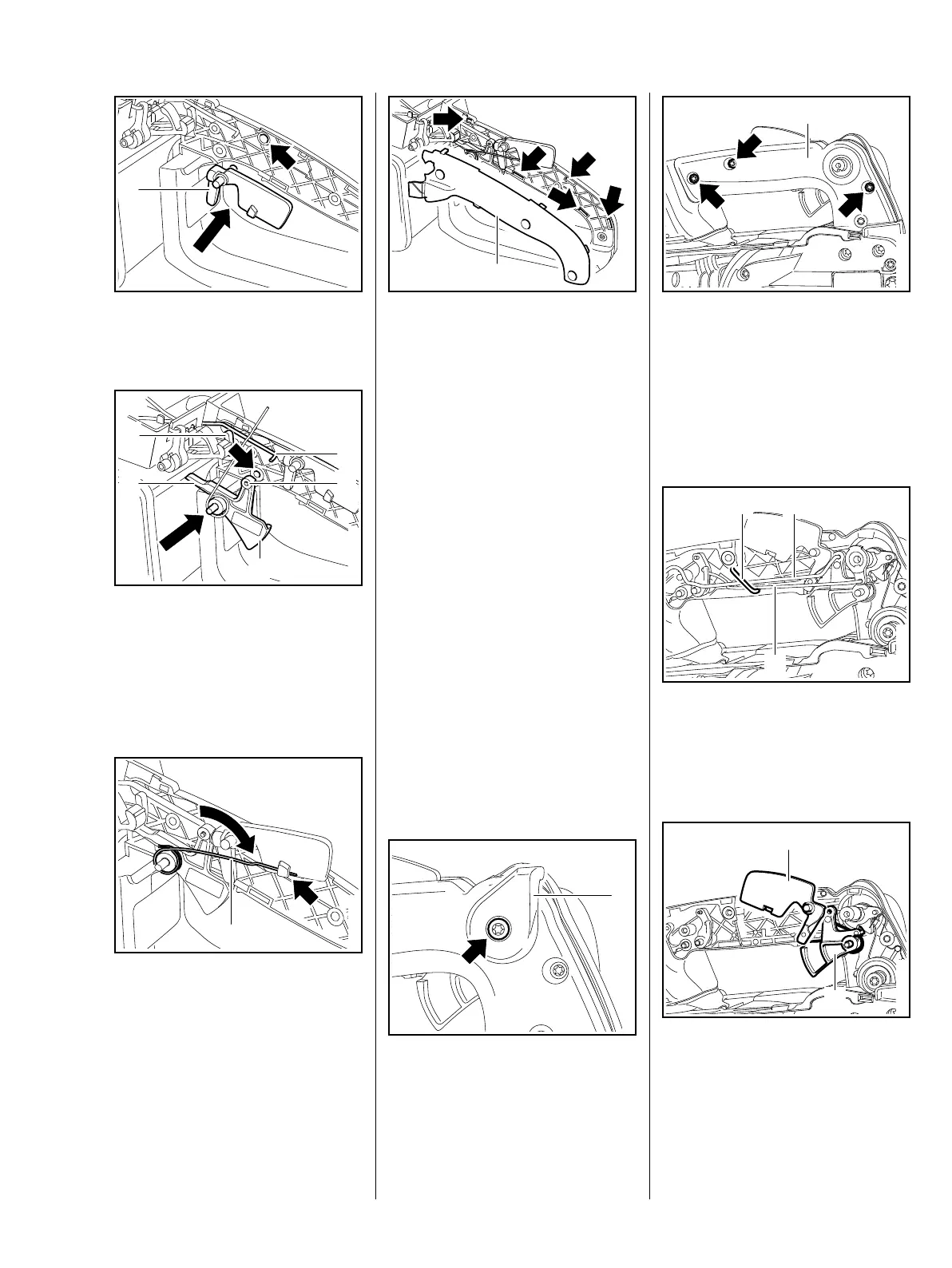

: Push the interlock lever (1) into
its mount (arrow).
: Push the throttle trigger (1) into
the bore (arrow) in the handle so
that the arm (3) is under the
switch shaft's lever (2) and its
hole (5) engages the throttle rod
(4).
: Attach the torsion spring (1) to
the interlock lever (arrow).
1
161RA254 TG
3
161RA255 TG
5
2
4
1
1
161RA256 TG
: Position the handle molding (1)
so that the lugs engage the seats
(arrows).
– Carefully push the handle
molding (1) into place – the
throttle trigger and interlock lever
may pop out.
– Insert screws and tighten them
down firmly.
– Tightening torques, b 3.5
– Check operation.
12.3 Throttle Trigger/Interlock
Lever (MS 200 T)
Color-coding of rods and levers:
Choke: lever white, rod silver-
colored
Throttle: lever orange, rod copper-
colored
: Take out the screw (arrow).
– Remove the control lever (1).
161RA257 TG
1
1
162RA015 TG
: Take out the screws (arrows).
– Carefully remove the handle
molding (1).
The throttle trigger and interlock
lever may pop out.
: Remove the link (1).
– Pull out the throttle rod (2) and
long choke rod (3), b 12.3.2
: Remove the interlock lever (1)
and throttle trigger (2).
– Check the individual parts and
replace if necessary.
162RA022 TG
1
1
2
3
162RA023 TG
1
2
162RA024 TG
