Stihl MS 200 Service Manual

102 MS 200, MS 200 T
14.4.7 Adjusting Screws
Grommet has been removed for the
sake of clarity.
There are three adjusting screws on
the carburetor:
H = high speed screw (1)
L = low speed screw (2)
LA = idle speed screw (3)
If the carburetor cannot be adjusted
properly, the problem may be the
adjusting screws.
The high speed screw H has a
limiter cap, which has to be
removed before the screw is
removed.
Always install a new limiter cap.
– Remove the carburetor and pull
off the grommet,
MS 200 b 14.2,
MS 200 T b 14.2.1
– See also carburetor
troubleshooting, b 4.6

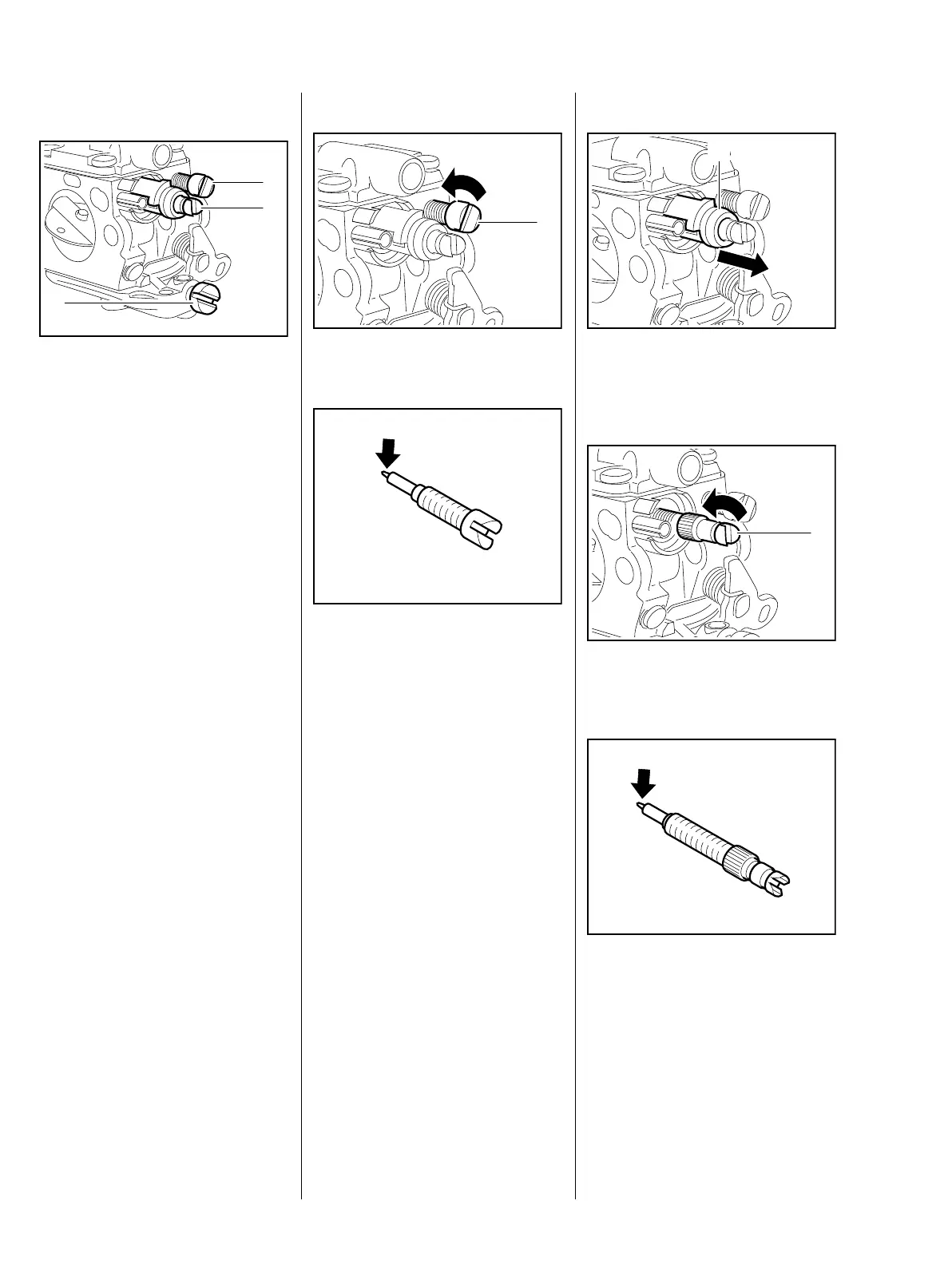

161RA351 TG
3
2
1
Low speed screw
: Take out the low speed screw (1).
: Inspect the tip (arrow) for
damage or wear and replace the
screw (L) if necessary.
– Screw down the low speed screw
(L) as far as stop.
– Continue with high speed screw.
161RA352 TG
1
161RA353 TG
High speed screw
: Pull off the limiter cap (1).
Always install a new limiter cap.
– Take out the high speed screw
(1).
: Inspect the tip (arrow) for
damage or wear and replace the
screw (H) if necessary.
161RA354 TG
1
161RA355 TG
1
161RA356 TG

Stihl MS 200 Specifications

General

Guide Bar Length	30-40 cm
Chain Oil Capacity	0.22 L
Chain pitch	3/8"
Engine Power	2.0 kW
Displacement	35.2 cc
Weight (without cutting equipment)	4.2 kg
